Description

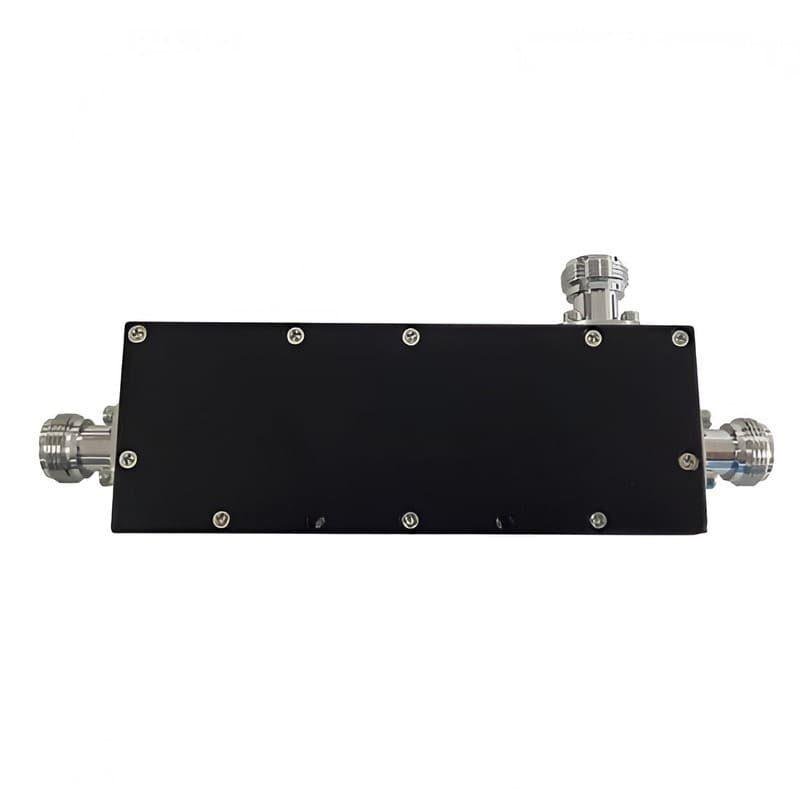

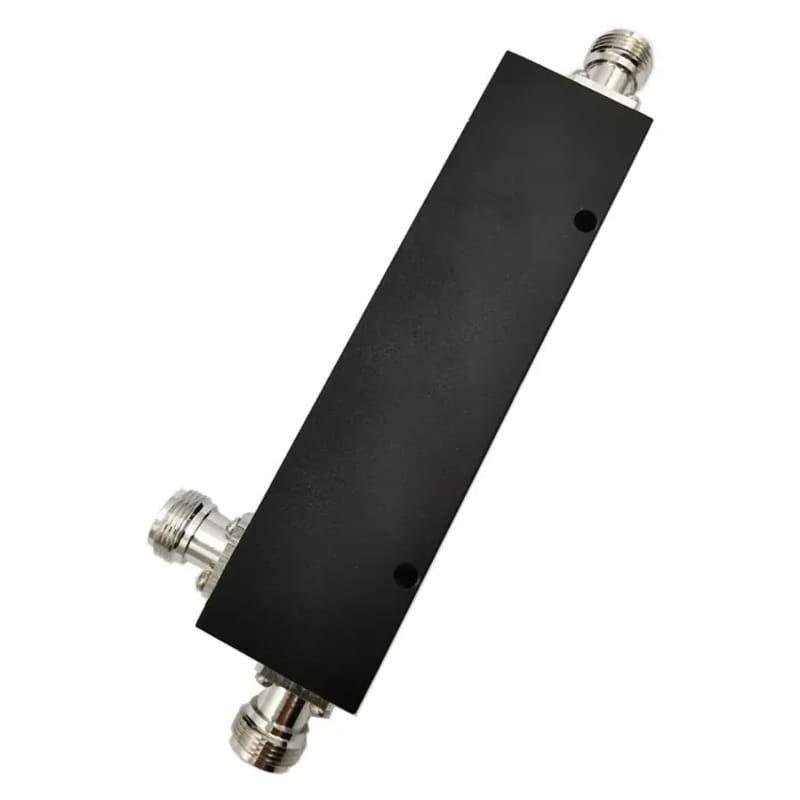

Engineered for infrastructure-grade reliability, this coupler features a robust aluminum housing with a high-conductivity internal signal path. The N-Female connectors are precision-machined to ensure a secure, low-loss interface that can withstand high installation torque. Its wideband design makes it a versatile tool for neutral-host DAS installations, supporting multiple service providers on a single hardware backbone.
The coupler is designed for low Passive Intermodulation (PIM), typically rated at ≤ -153 dBc, which is critical for maintaining high data throughput and preventing interference in modern multi-carrier environments. With a high power rating (often up to 200W-300W), it can be placed near the output of high-power base station amplifiers without risk of failure or signal degradation.
Key Technical Advantages
-
Wide Frequency Coverage: Covers the full cellular spectrum from 698MHz to 2700MHz, ensuring compatibility with global LTE and 5G bands.
-
Precision Coupling: Provides a stable 5dB signal sample at the coupled port, allowing for accurate system monitoring or secondary signal distribution.
-
Low PIM Engineering: Constructed with non-magnetic materials and high-pressure internal contacts to achieve ultra-low PIM (≤ -153 dBc).
-
High Power Capacity: Designed to handle significant average and peak power levels, making it suitable for macro-cell and high-capacity indoor systems.
-
Rugged Construction: Features a weatherproof, corrosion-resistant housing that meets IP65/IP67 standards for both indoor and outdoor deployments.
Key Features
-
Connector Type: N-Female (All ports).
-
Coupling Value: 5dB.
-
Frequency Range: 698-2700 MHz.
-
Impedance: 50 Ohm.
-
Insertion Loss: Typical ≤ 2.2 dB (includes 5dB split loss).
-
Directivity: ≥ 20 dB.
🔹 Applications:
- RF signal sampling and monitoring in telecom systems
- Power splitting for antenna and DAS networks
- Base station RF signal distribution
- Wireless communication infrastructure
- RF test and measurement setups
- Indoor and outdoor RF network installations
