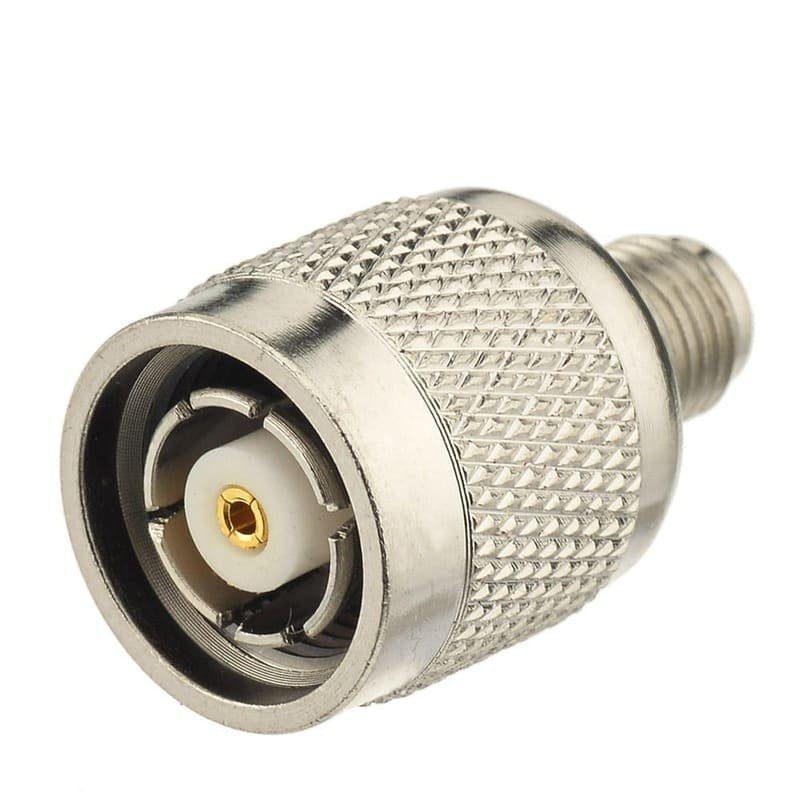

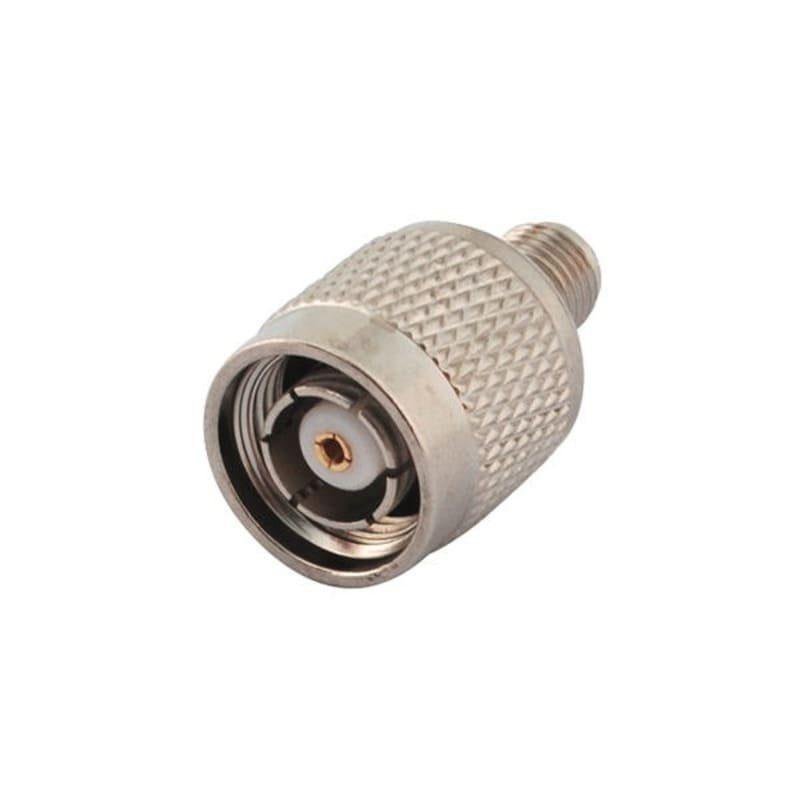

SMA Female to TNC Male RP Adapter

Description

The SMA Female to TNC Male RP Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the ubiquitous threaded SMA standard and the Reverse Polarity TNC interface commonly utilized in high-gain Wi-Fi and networking equipment. It features an SMA Jack (Female) on one side, utilizing a standard fine-threaded external interface and internal socket, and an RP-TNC Plug (Male) on the other.

In a Reverse Polarity TNC configuration, the “Male” connector maintains the standard TNC threaded coupling nut but contains a female socket instead of a center pin. This adapter is indispensable for technicians and engineers who need to connect standard SMA male cable assemblies or antennas to RP-TNC female ports found on wireless routers, access points, and signal boosters. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 6 GHz, ensuring optimal performance for dual-band wireless networks.

Key Technical Advantages

• Reverse Polarity Bridge: Specifically designed to interface with RP-TNC hardware, ensuring compatibility with professional-grade wireless access points and antennas.

• Standard-to-RP Integration: Provides a seamless mechanical and electrical link between high-precision SMA cables and specialized threaded wireless networking connectors.

• Superior RF Shielding: The solid brass construction and high-quality plating provide a continuous ground path, protecting the signal path from EMI and RFI interference.

• Rugged Mechanical Stability: The durable housing and threaded coupling nuts are designed to withstand significant torque and physical stress in industrial or outdoor environments.

• Maximum Conductivity: High-purity gold or silver plating on the internal center contact sockets ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• SMA Female to RP-TNC Male Interface: Consists of an SMA Jack (with socket and external threads) and an RP-TNC Plug (with socket and threaded coupling nut).

• Nickel-Plated Brass Construction: Offers superior corrosion resistance and professional-grade durability for indoor and outdoor wireless installations.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in high-traffic wireless networking and test systems.

• Precision 50 Ohm Match: Specifically engineered to match standard high-performance wireless communication and microwave test instrumentation.

Technical Summary
