Description

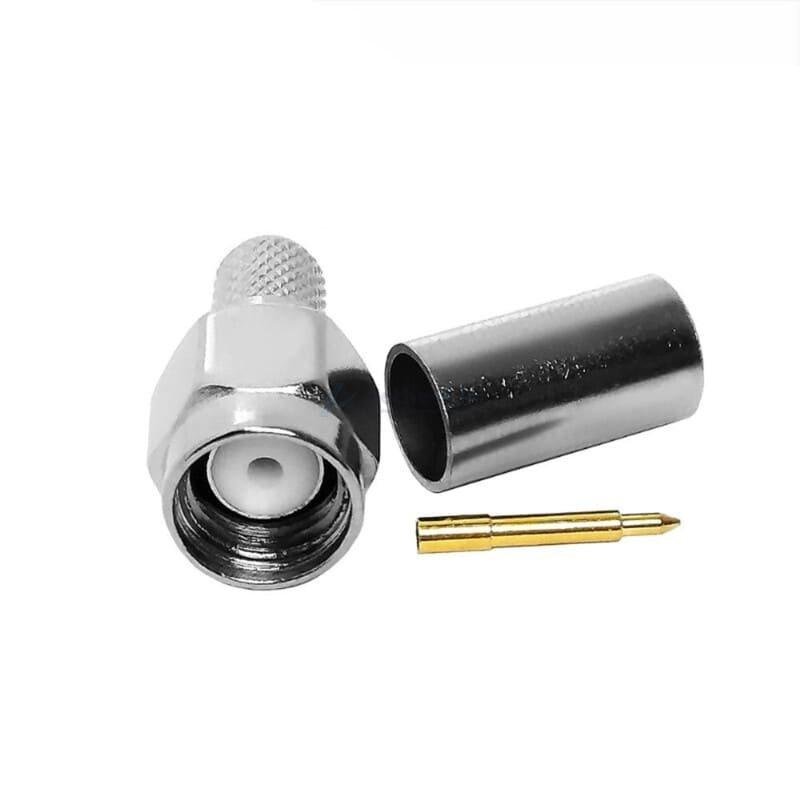

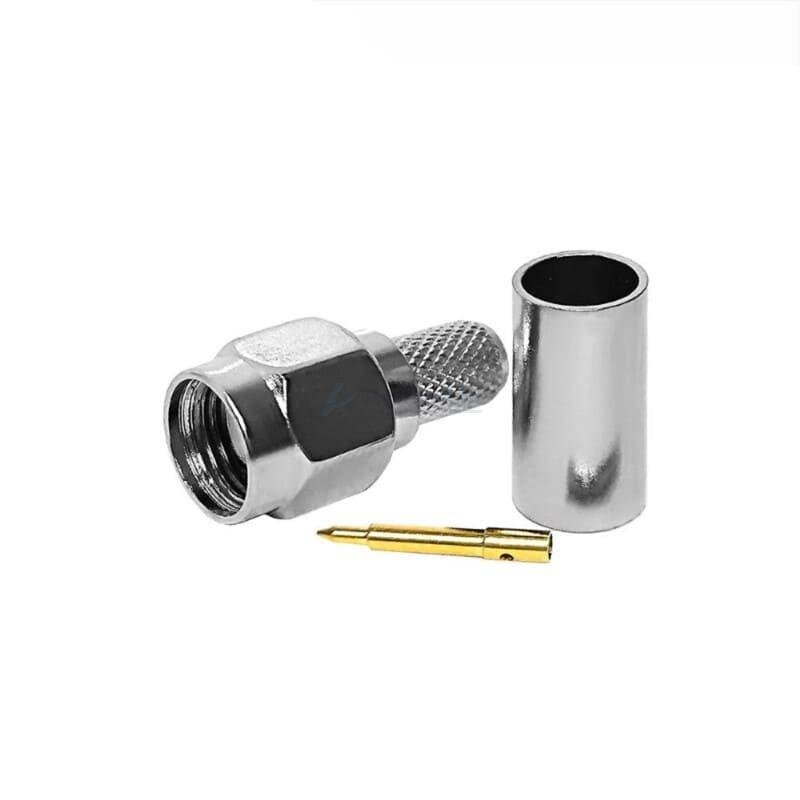

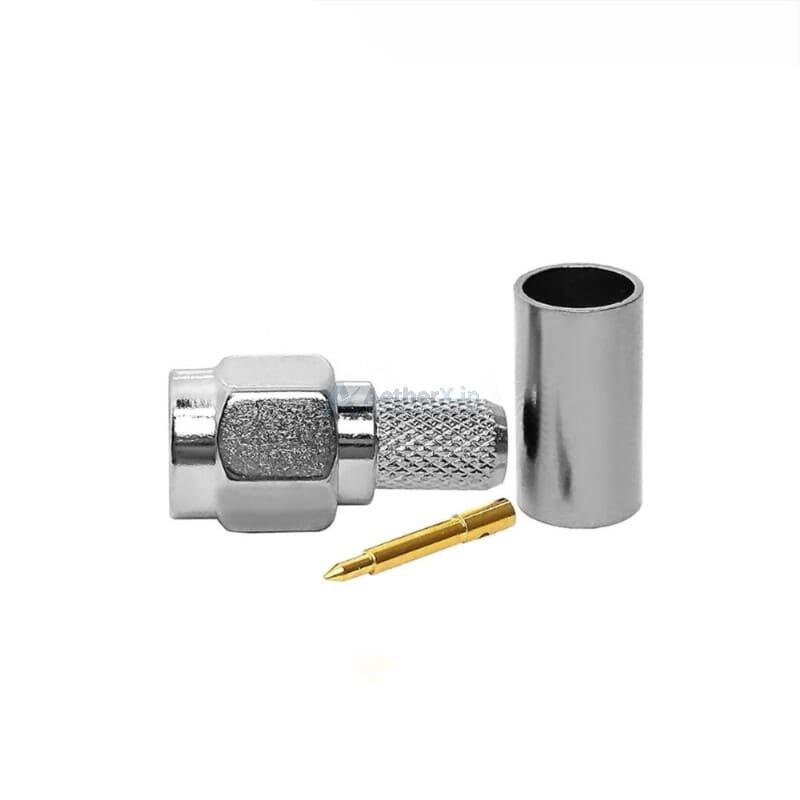

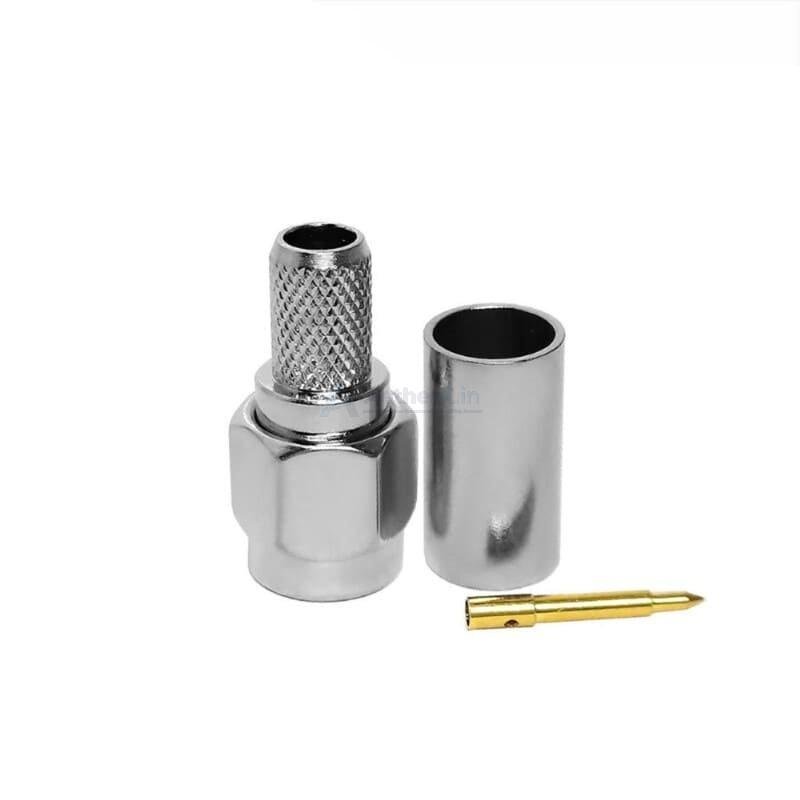

The SMA Male Crimp Connector for BT 3002 is a specialized RF interface designed to provide a secure, low-loss connection for 75-ohm and 50-ohm telecommunication systems utilizing BT 3002 (also known as TZC 75024 or Type 43) cabling. This connector is a staple in digital distribution frames (DDF), cellular base stations, and high-speed data exchange environments.
Precision-Engineered for Reliability
Crafted with a high-quality gold-plated brass body and a PTFE insulator, this SMA plug ensures maximum conductivity and durability. The crimp-style termination allows for a fast, consistent, and vibration-resistant assembly when used with the correct hex crimp tool, making it ideal for large-scale infrastructure deployments where time and signal integrity are critical.
Key Technical Advantages:
-
Perfect Cable Match: Specifically sized for the unique dimensions of BT 3002 / TZC 75024 cable, ensuring a snug fit and preventing cable pull-out.
-
Low VSWR Performance: Optimized internal geometry maintains signal consistency and minimizes reflections, even in high-frequency applications.
-
Threaded Coupling Mechanism: The standard 1/4-36 threaded interface ensures a reliable mechanical connection that won’t loosen under thermal expansion or vibration.
-
Corrosion Resistance: Premium gold plating on the center contact and body (or nickel plating options) provides long-term protection against oxidation in industrial environments.
Key Features
-
Connector Type: SMA Male (Plug) with Hex Nut.
-
Cable Compatibility: BT 3002, TZC 75024, Type 43 Coaxial Cable.
-
Termination Method: Crimp (Outer Ferrule) and Solder/Crimp (Center Pin).
-
High Durability: Rated for over 500 mating cycles.
-
Compact Design: Ideal for high-density patch panels and compact RF modules.
Applications:
• RF Cable Assemblies
• Wireless Communication Systems
• WiFi / WLAN Devices
• GPS Systems
• LTE / 4G / 5G Networks
• RF Test Equipment
• Antenna Connections
• Telecom Systems
