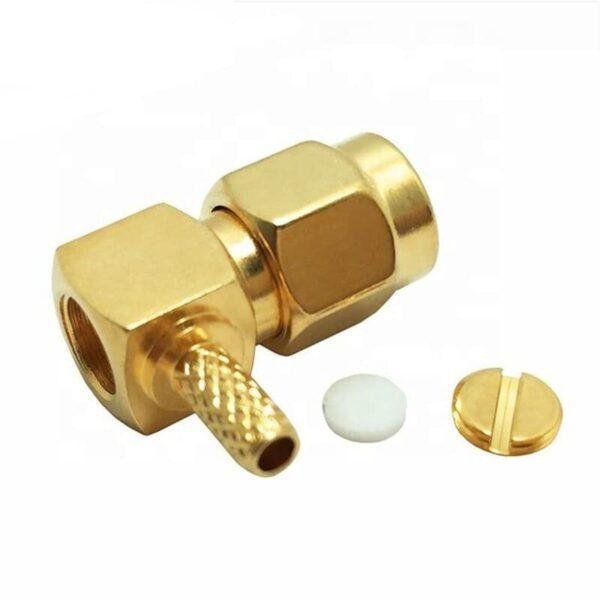

SMA M RA CRIMP for LMR100/RG174/RG316 Cable

Description

The SMA Male Right-Angle Crimp Connector is a specialized RF component designed for maximum space efficiency. In a standard SMA configuration, the “Male” connector (Plug) features internal threads and a protruding center pin. The 90-degree right-angle geometry allows for clean cable routing in tight enclosures, preventing signal degradation caused by over-bending thin-profile cables like RG316 and RG174.

This connector is optimized for high-flexibility, small-diameter cables, including LMR100. The termination process utilizes a secure hex-crimp method for the outer ferrule, ensuring a rugged, vibration-resistant mechanical bond suitable for mobile and industrial environments. Constructed with a gold-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR across microwave frequencies. Its compact footprint makes it a favorite for PCB headers and rear-panel equipment where depth is at a premium.

Key Technical Advantages

• Space-Saving 90? Design: Enables right-angle cable exits, significantly reducing the clearance needed behind equipment and protecting the cable?s minimum bend radius.

• Precision Thin-Cable Support: Specifically designed to fit the unique dimensions of sub-miniature 50 Ohm cables like RG174 and low-loss LMR100.

• Durable Crimp Termination: The hex-crimp ferrule provides a high-strength, 360-degree attachment that ensures consistent electrical grounding even under physical strain.

• High-Frequency Stability: Engineered to deliver reliable performance up to 12.4 GHz, supporting high-speed data and microwave signal transmission.

• Corrosion Resistance: Premium gold plating on the body and contact pin ensures long-term reliability and minimal insertion loss in diverse environments.

Key Features

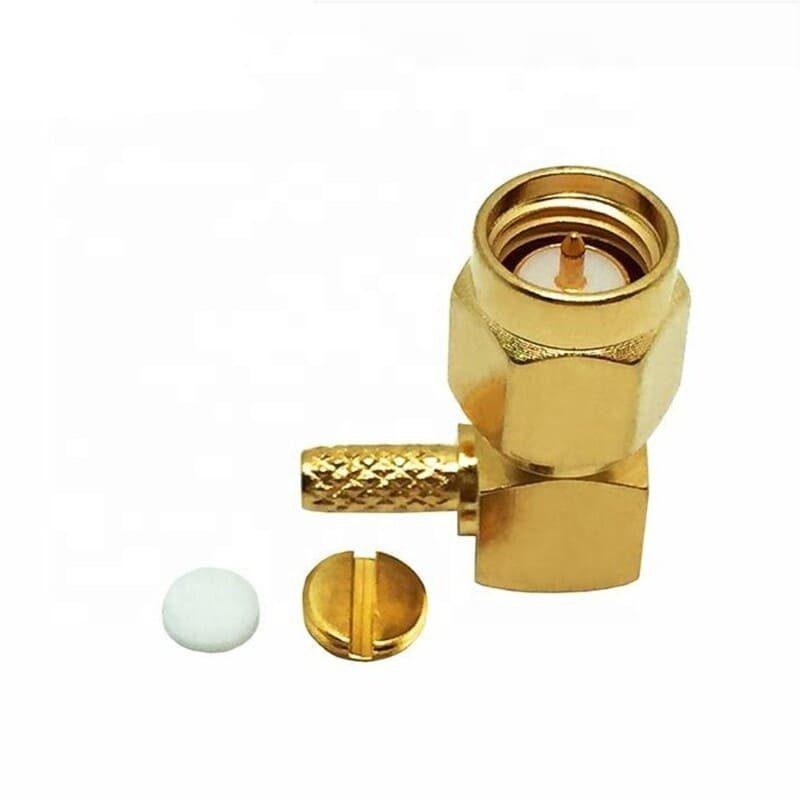

• Standard SMA Male Interface: Features internal threads and a center contact pin (Plug with Pin).

• Low-Profile Configuration: Streamlines cable management and reduces mechanical stress on the mating interface.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical impedance across its frequency range.

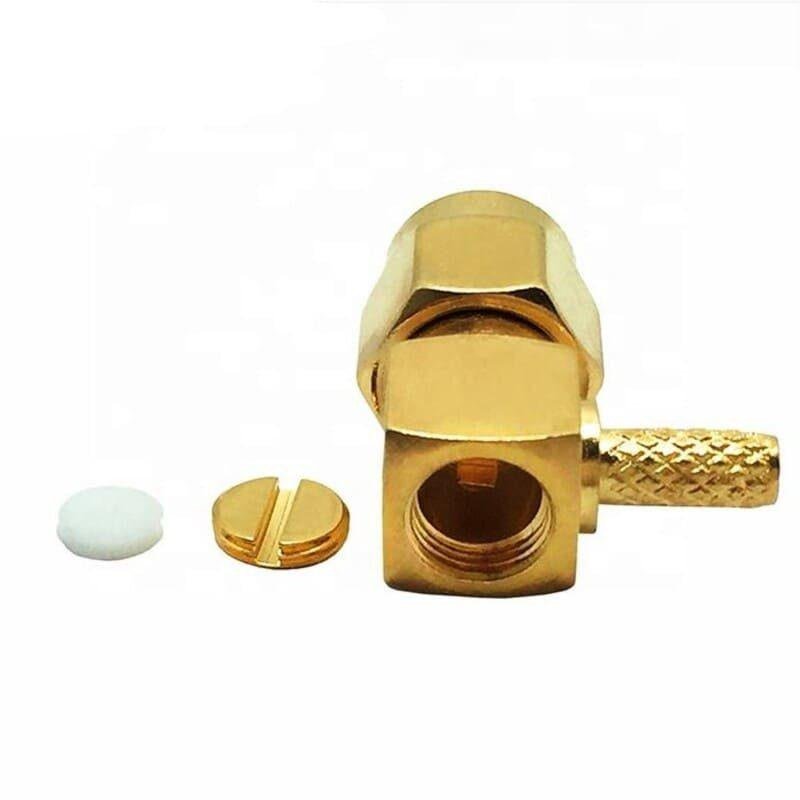

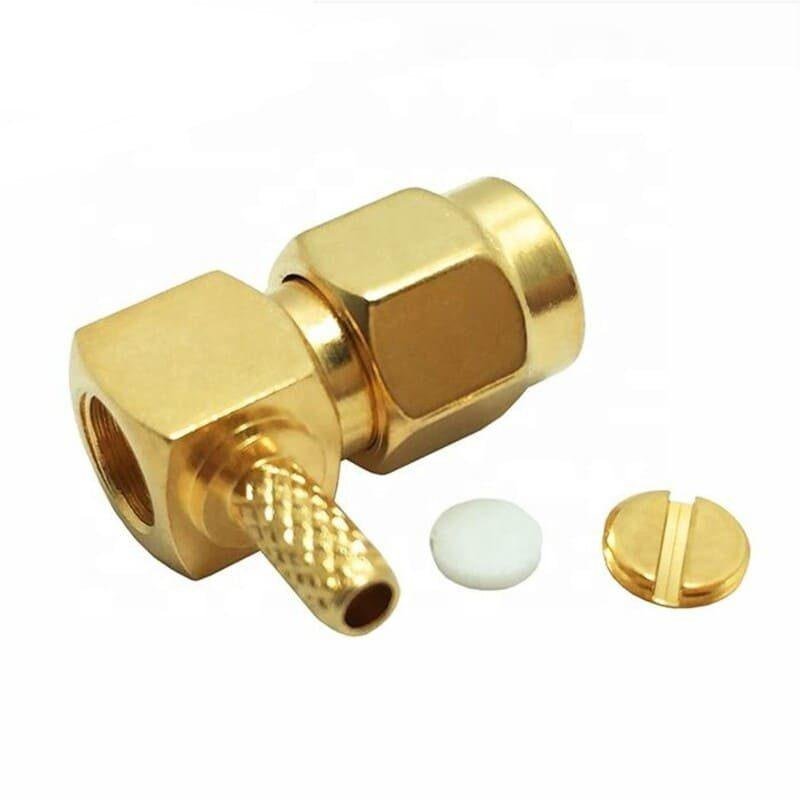

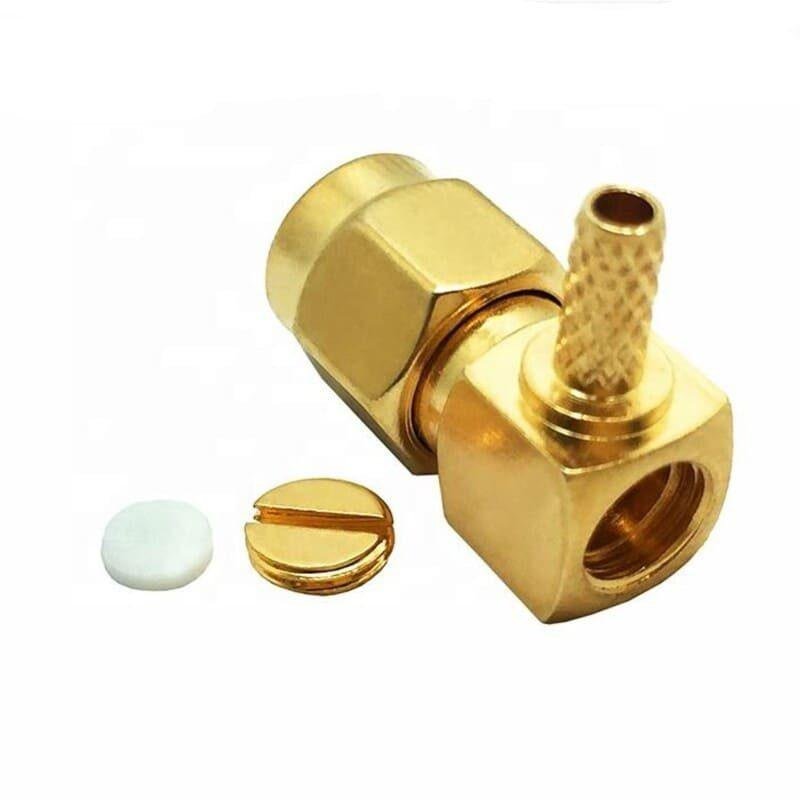

• 3-Piece Assembly: Includes the right-angle body, center contact pin, and outer crimp ferrule for fast and reliable field installation.

• Industrial Standard Compatibility: Fully compatible with all standard SMA Female jacks and bulkhead adapters.

Technical Summary
