Description

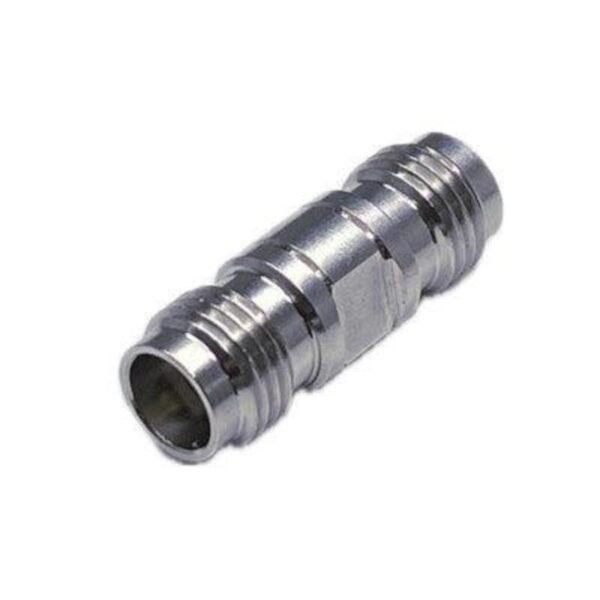

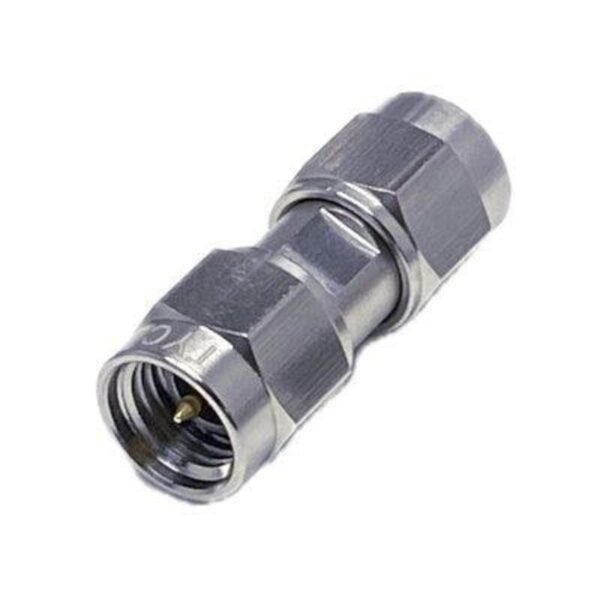

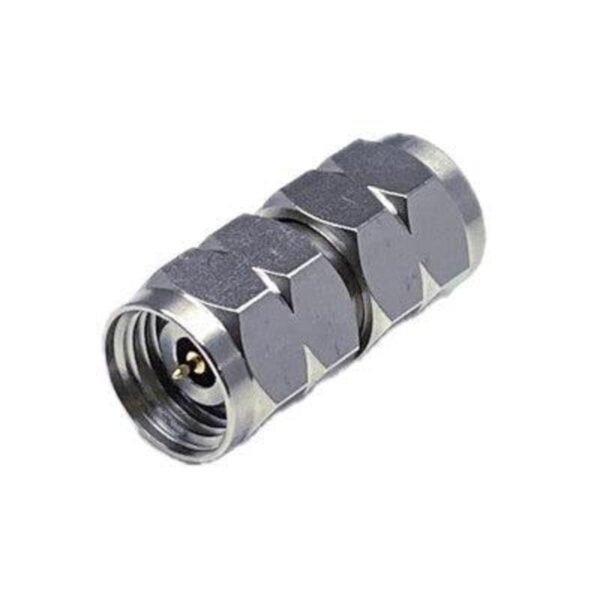

The SMA Male to SMA Male Adapter is a high-fidelity “in-series” coupler designed to join two cables or devices terminating in SMA-Female jacks. Unlike the larger N-type interface, the Sub-Miniature Version A (SMA) is favored for its compact size and exceptional performance at microwave frequencies. This adapter is commonly used as a “connector saver” on expensive test equipment (like Spectrum Analyzers or VNAs) to prevent wear on the internal ports from repeated mating cycles.
Constructed with Gold-Plated Brass or Passivated Stainless Steel, these adapters ensure superior conductivity and long-term corrosion resistance. The internal dielectric is typically made of high-grade PTFE (Teflon) to maintain impedance stability and minimize signal reflections. Whether you are building a custom RF manifold or setting up a 5G prototype, this adapter provides the mechanical precision and electrical transparency required for modern high-bandwidth applications.
Key Technical Advantages
-
Extended Microwave Range: Optimized for linear performance up to 18 GHz, making it suitable for aerospace, defense, and high-speed data communications.
-
Compact High-Density Design: Allows for close port spacing in tightly packed RF enclosures and small-cell telecommunications hardware.
-
Low Insertion Loss & VSWR: Engineered to minimize signal attenuation (typically ≤0.2 dB) and reflections (VSWR ≤1.2:1), ensuring peak system efficiency.
-
Robust Mechanical Coupling: The threaded interface provides a secure, vibration-resistant connection that maintains electrical stability under stress.
-
Precision Construction: Manufactured to tight tolerances to ensure repeatable performance across hundreds of connect/disconnect cycles.
Key Features
-
Adapter Type: Straight / In-Series Coupler.
-
Interface: 2x SMA Male (Plug).
-
Impedance: 50 Ohm.
-
Body Material: Gold-Plated Brass or Stainless Steel.
-
Contact Material: Gold-Plated Beryllium Copper or Brass.
-
Insulator: PTFE (Teflon).
-
Common Applications: Port protection for RF test equipment, signal routing in microwave assemblies, and 5G/Wi-Fi 6E infrastructure.
Technical Summary
| Parameter | Specification (Typical) |
| Impedance | 50 Ohm |
| Frequency Range | DC to 18 GHz |
| VSWR | ≤ 1.20 @ 18 GHz |
| Insertion Loss | ≤ 0.2 dB |
| Mating Cycles | ≥ 500 Cycles |
| Operating Temp | -65°C to +165°C |
