Description

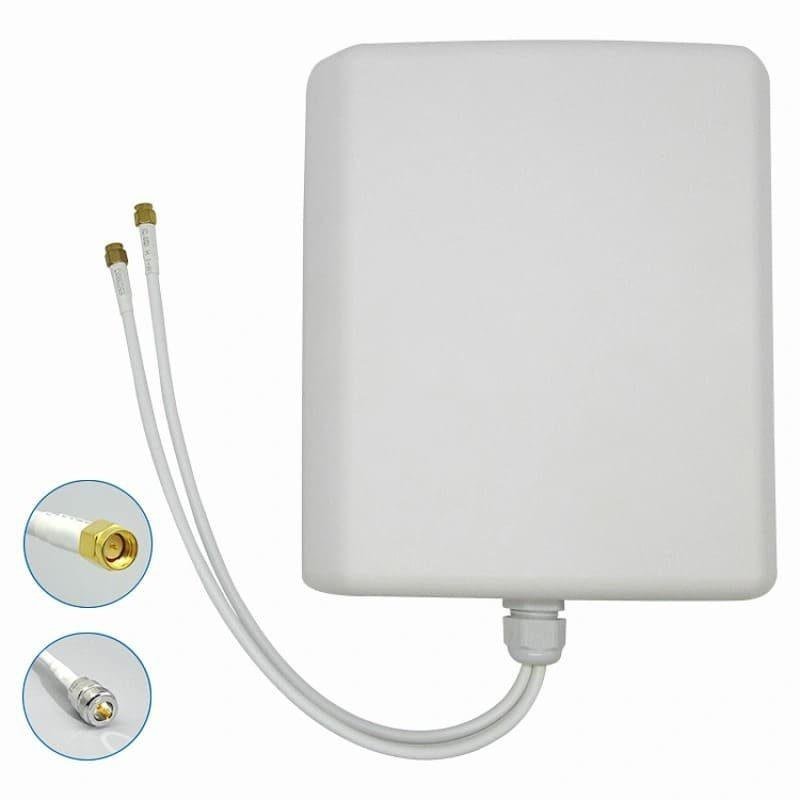

The 12 dBi Panel Antenna is a powerful directional antenna designed to provide high-gain connectivity for cellular and data networks. With a significant 12 dBi gain rating, this antenna is built to capture weak signals from distant towers and focus them precisely where they are needed, making it a critical component for fringe-area signal boosters and Distributed Antenna Systems (DAS). Its wideband capability from 800 MHz to 2500 MHz ensures it can handle diverse network requirements, including the common 850/900 MHz cellular bands and high-speed 1800/2100/2300/2500 MHz data bands.

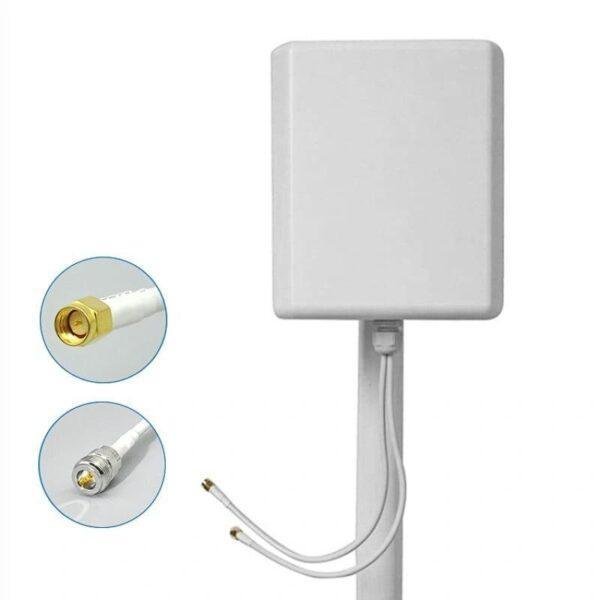

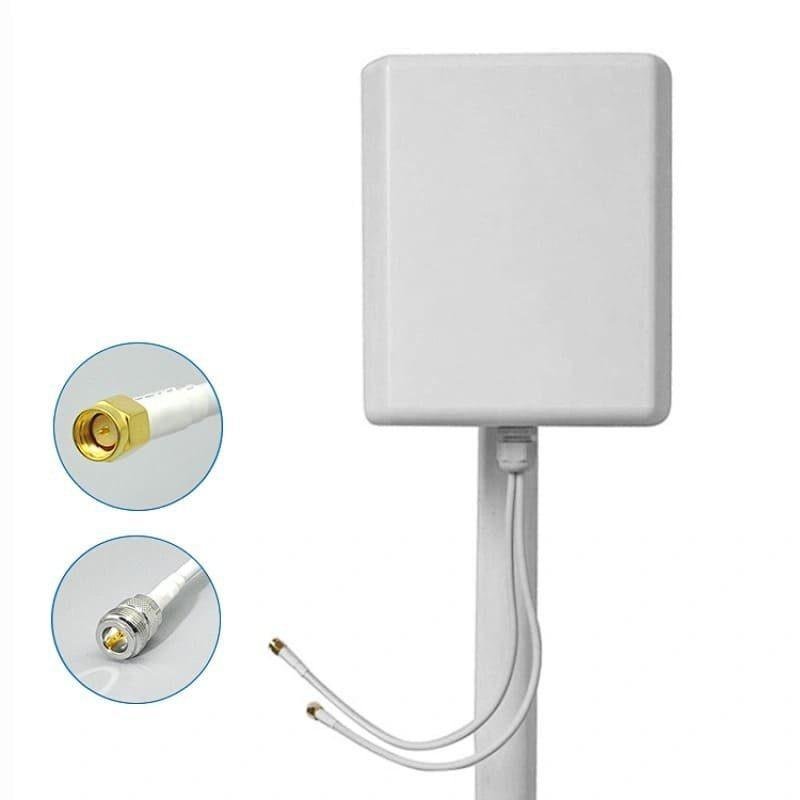

The antenna is encased in a weatherproof, UV-protected ABS radome, allowing for reliable permanent installation on rooftops, poles, or walls in both urban and rural environments. By utilizing a narrow directional beam—typically around 60° to 65° horizontal—it minimizes interference from unwanted sources and provides a significantly longer range compared to standard 7 dBi or 9 dBi models. Most units come equipped with a high-quality N-Female connector, facilitating a secure and low-loss link to your RF transmission equipment.
Key Technical Advantages
-
Exceptional 12 dBi Gain: Provides a substantial power increase, effectively pulling in signals from remote locations where lower-gain antennas struggle.
-
Broad-Spectrum Support: A versatile “all-carrier” solution that covers GSM, WCDMA, LTE, and 2.4 GHz Wi-Fi bands in one compact unit.
-
Focused Directional Signal: Concentrates RF energy into a specific sector to bypass interference and deliver a cleaner, more stable data connection.
-
Low VSWR (≤1.5): Precision-engineered to ensure maximum power efficiency, reducing signal reflections and protecting your booster or router from damage.
-
Industrial Durability: The rugged ABS housing and stainless steel mounting hardware are designed to survive high winds, heavy rain, and intense UV exposure.
Key Features
-
Antenna Type: Directional Patch Panel.
-
Frequency Range: 800–960 MHz / 1710–2500 MHz.
-
Gain: 12 dBi.
-
Polarization: Vertical.
-
Connector Type: N-Female (Standard).
-
Material: UV-Stabilized ABS Radome.
-

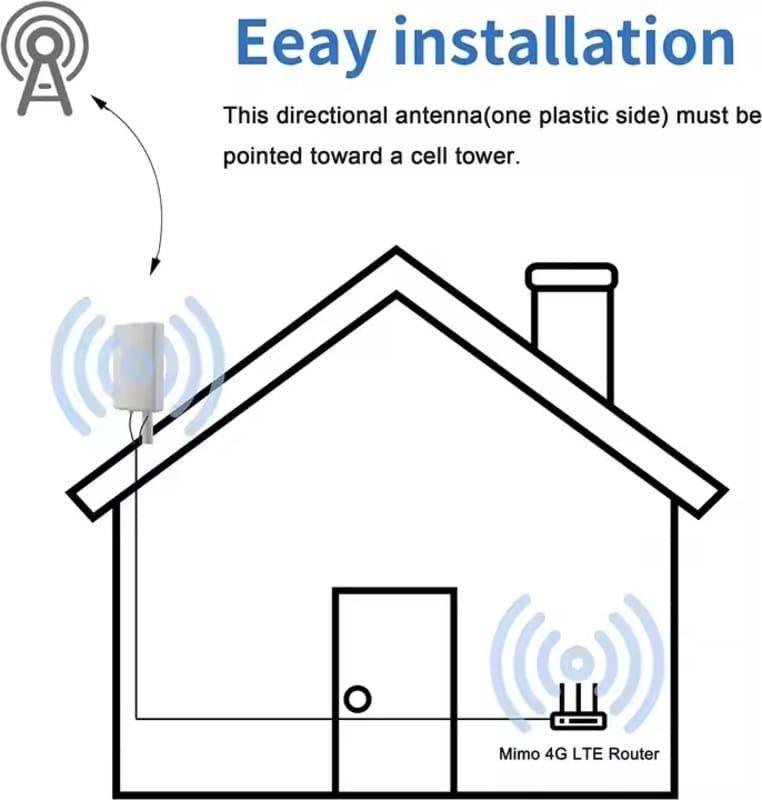

Common Applications: Rural signal boosting, long-range Wi-Fi bridges, industrial IoT monitoring, and donor antennas for high-capacity cellular repeaters.
🔹 Applications:
- High-gain indoor/outdoor RF coverage
- Telecom and DAS systems
- Wireless communication infrastructure
- LTE signal boosting
- Antenna systems for buildings
- RF signal distribution networks
