Description

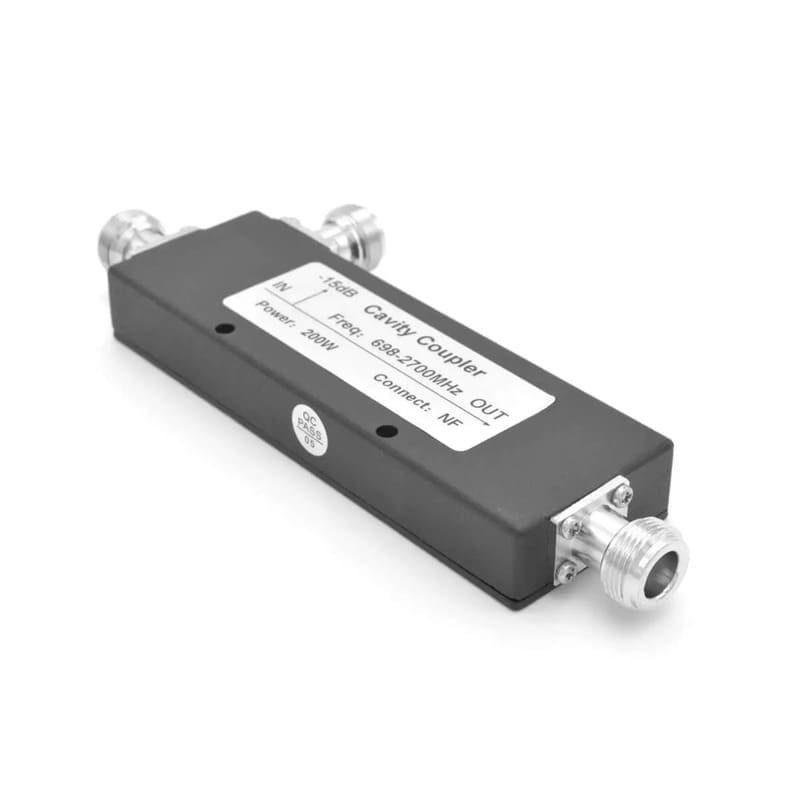

Constructed for infrastructure-grade reliability, this coupler uses a precision internal design to ensure minimal signal distortion. The N-Female connectors are built with high-durability plating, such as tri-alloy or silver, to withstand the high torque and repeated mating cycles common in professional field installations. Its wideband capabilities allow it to support multiple frequency bands simultaneously, facilitating neutral-host wireless systems where multiple operators share the same hardware.
The device is specifically engineered for low Passive Intermodulation (PIM), which is vital for preventing receiver interference and maintaining peak data throughput in modern high-speed networks. Housed in a rugged, corrosion-resistant aluminum or brass casing, it is often rated for IP65/IP67 ingress protection, allowing for reliable operation in both indoor stadium environments and sheltered outdoor telecommunications cabinets.
Key Technical Advantages
-
Carrier-Grade Wideband Coverage: Supports the full cellular spectrum from 698MHz to 2700MHz, including all major 3G, 4G LTE, and early 5G bands.
-
Minimal Mainline Impact: With a 15dB coupling value, very little power is diverted from the main path (approx. 0.14 dB insertion loss from coupling alone), maximizing the reach of the primary signal.
-
Superior Signal Purity: Engineered to achieve PIM levels as low as -161 dBc, ensuring that the noise floor remains low for sensitive 5G receivers.
-
High Power Capacity: Designed to handle average power levels of 200W to 300W, making it suitable for integration with high-power macro-cell or small-cell amplifiers.
-

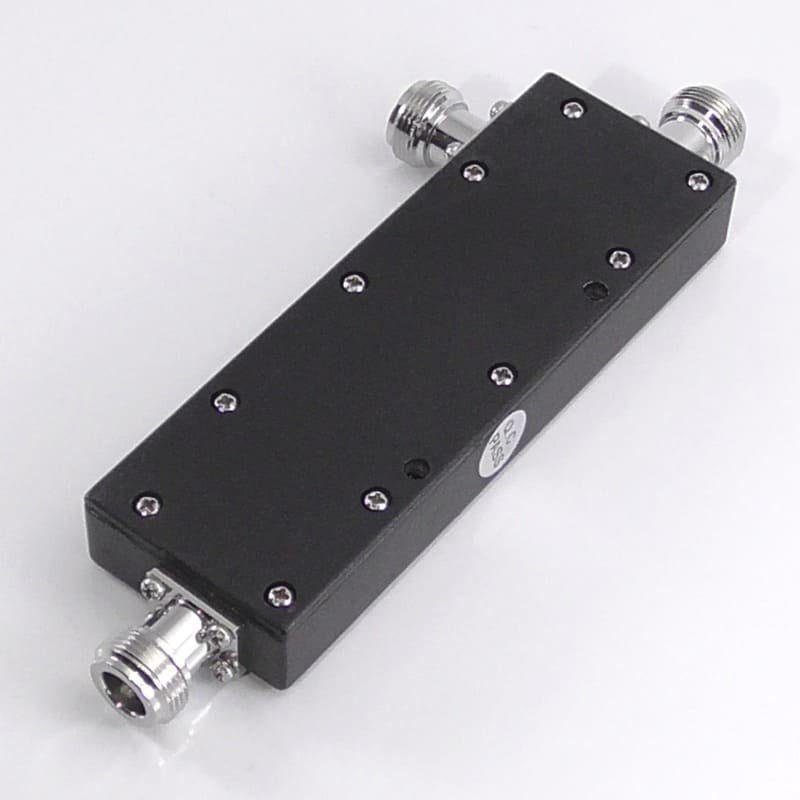

Rugged Mechanical Build: Features stable mounting brackets and a compact footprint, designed to fit into tight enclosures or rack-mount systems.
Key Features
-
Connector Type: N-Female (All ports).
-
Coupling Value: 15dB ± 1.0dB.
-
Frequency Range: 698-2700 MHz.
-
Impedance: 50 Ohm.
-
Insertion Loss: Typical ≤ 0.4 dB (plus coupling loss).
-
Directivity: ≥ 20 dB.
🔹 Applications:
- RF signal attenuation and monitoring
- Telecom RF distribution systems
- DAS and antenna networks
- RF testing setups
- Wireless communication systems
- Industrial RF applications
