20dB 2W RF Fixed Attenuator N M/F 6GHz

Description

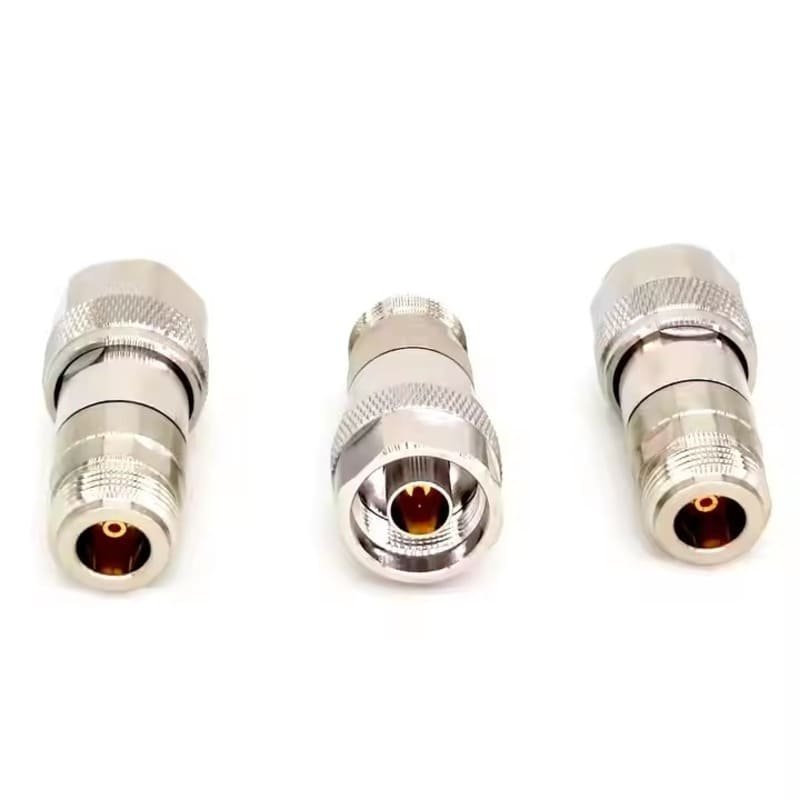

The 20dB 2W RF Fixed Attenuator is a high-performance passive component designed to reduce the power of an RF signal by exactly 20dB, providing a precise 100:1 power reduction. With a 2-Watt power handling capacity, it is ideal for low-to-medium power applications where precision and signal integrity are paramount. This model is optimized for a wide frequency spectrum from DC to 6GHz, ensuring full compatibility with sub-6GHz 5G NR, Wi-Fi 6, GPS, and standard telecommunications bands.

The attenuator features an N-Type Male to N-Type Female inline configuration, utilizing a threaded coupling mechanism for a secure, low-loss, and vibration-resistant connection. It is constructed using high-reliability resistive elements that provide excellent frequency flatness and a low Voltage Standing Wave Ratio (VSWR). The housing is manufactured from nickel-plated brass or stainless steel, providing a ruggedized exterior that ensures consistent electrical performance and durability over hundreds of mating cycles.

Key Technical Advantages

• Precise 20dB Attenuation: Provides a reliable 100-fold power reduction, essential for balancing signal strength and protecting sensitive receiver front-ends or spectrum analyzer inputs from high-power saturation.

• Broad 6GHz Bandwidth: Provides a versatile solution for a wide range of wireless technologies, maintaining high accuracy from DC through the 6GHz spectrum.

• Excellent Impedance Matching: Often used as a “pad” to improve the VSWR between two mismatched components, minimizing signal reflections and protecting upstream sources.

• Compact and Rugged Design: The 2W power rating is housed in a streamlined form factor, making it ideal for tight spaces in both laboratory and field environments.

• Industrial-Grade N-Type Interface: Features high-quality connectors designed for high mechanical stability and excellent RF shielding in demanding environments.

Key Features

• Interface Type: N-Type Male (Plug) to N-Type Female (Jack).

• Attenuation Value: 20dB (Fixed).

• Power Rating: 2 Watts (Continuous).

• Frequency Range: DC – 6.0 GHz.

• Impedance: 50 Ohm (Standard).

• Construction: Nickel-Plated Brass or Stainless Steel with PTFE dielectric.

• Common Application: Signal leveling in wireless systems, laboratory measurements, protection of sensitive test ports, and inter-stage isolation in RF chains.

🔹 Applications:

• RF signal reduction in telecom systems
• Antenna testing and calibration
• Wireless communication
• RF lab setups
• Signal protection
• Measurement systems
