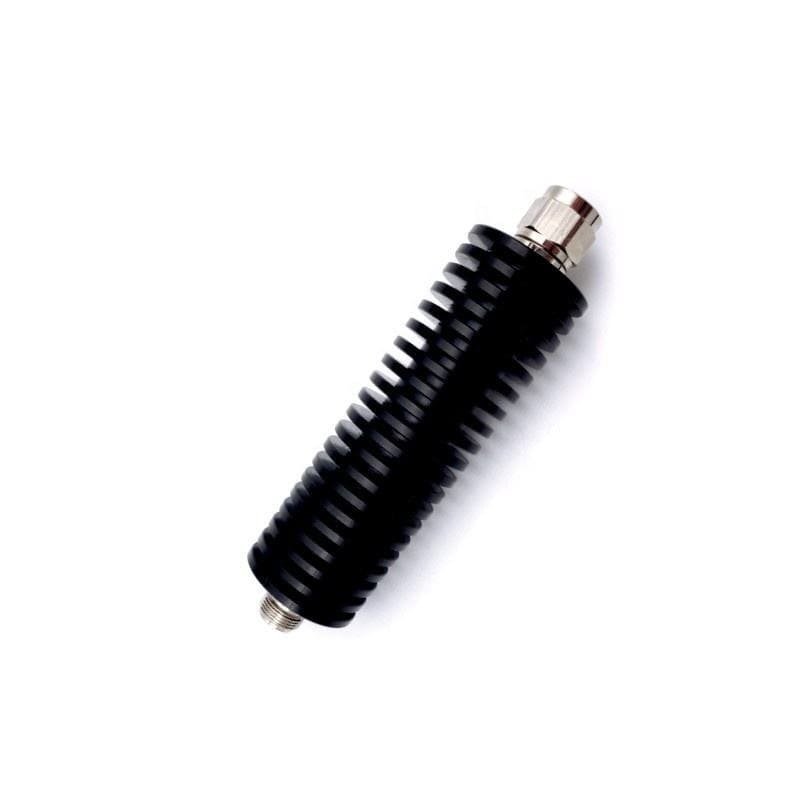

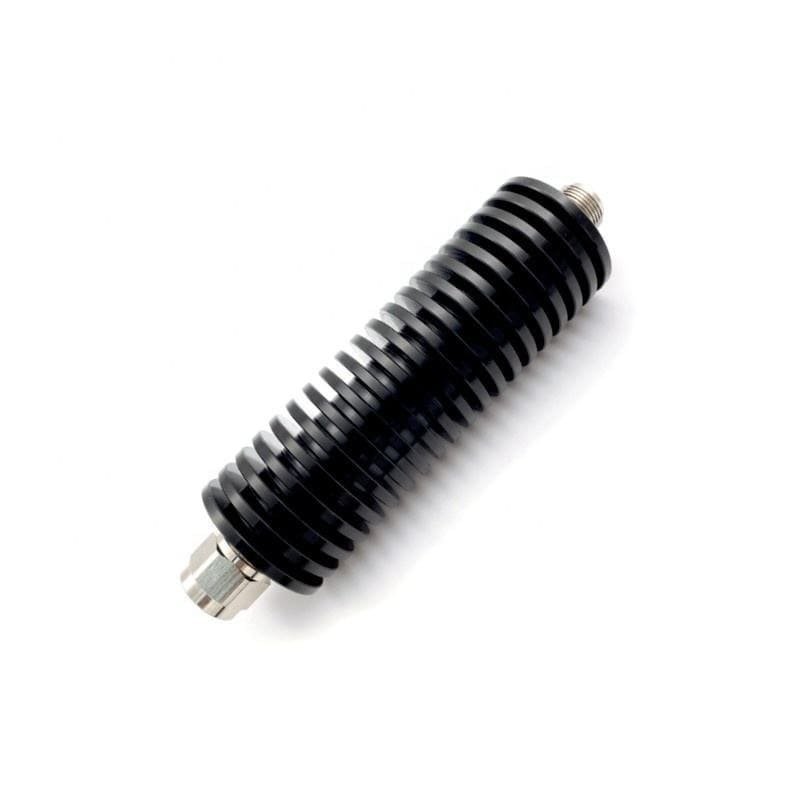

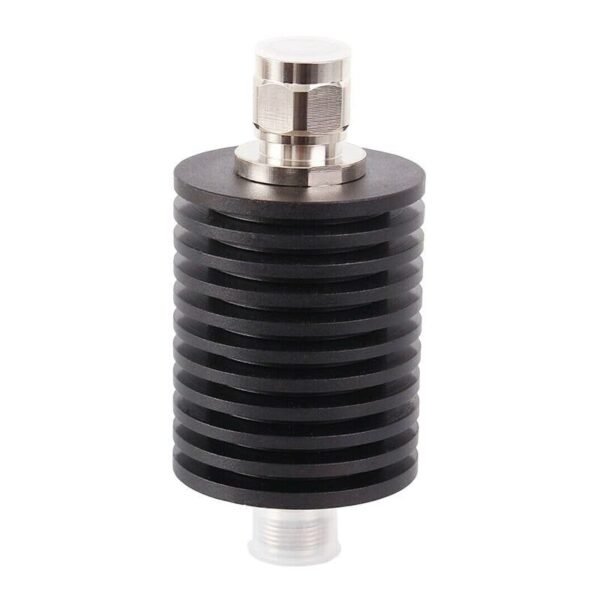

30dB 100W RF Fixed Attenuator N M/F 3GHz

Description

The 30dB 100W RF Fixed Attenuator is a high-capacity passive component designed to reduce the power of an RF signal by exactly 30dB, providing a 1000:1 power reduction. With a robust 100-Watt power handling capacity, it is engineered to safely manage high-power outputs from transmitters and power amplifiers, stepping them down to milliwatt levels compatible with spectrum analyzers, power meters, and receivers. This model is optimized for frequencies from DC to 3GHz, making it a vital tool for 4G/LTE, VHF/UHF broadcast, and industrial RF applications.

The attenuator features a rugged N-Type Male to N-Type Female inline configuration with a high-reliability threaded coupling. To effectively manage the significant heat generated by 100W of power, the device is housed in a large-format anodized aluminum heat-sink body with longitudinal cooling fins. This design ensures maximum thermal dissipation and prevents attenuation drift during high-duty-cycle operations. Manufactured with premium PTFE dielectric and high-stability resistive film, it maintains exceptional frequency flatness and low VSWR throughout its service life.

Key Technical Advantages

• High-Power 100W Capacity: Specifically designed for high-energy RF environments where standard laboratory attenuators would suffer immediate thermal failure.

• Precise 30dB Power Reduction: Delivers an accurate 1000-fold reduction in signal strength, allowing for the direct measurement of high-power transmission lines.

• Superior Thermal Management: The oversized heat-sink housing is optimized for natural convection, ensuring the internal components remain within safe operating temperatures.

• Excellent Impedance Stability: Precision-engineered internals provide a low VSWR across the entire 3GHz band, protecting expensive signal sources from harmful reflections.

• Industrial-Grade N-Type Interface: Features ruggedized connectors designed for repeated use in both field maintenance and high-power laboratory setups.

Key Features

• Interface Type: N-Type Male (Plug) to N-Type Female (Jack).

• Attenuation Value: 30dB (Fixed).

• Power Rating: 100 Watts (Continuous Average).

• Frequency Range: DC – 3.0 GHz.

• Impedance: 50 Ohm (Standard).

• Construction: Black Anodized Aluminum heat-sink with Nickel-Plated Brass connectors.

• Common Application: High-power transmitter testing, base station signal conditioning, dummy load applications, and RF power measurement.
