6dB 20W RF Fixed Attenuator N M/F 3GHz

Description

The 6dB 20W RF Fixed Attenuator is a high-performance passive component designed to reduce the power of an RF signal by exactly 6dB, providing a precise 4:1 power reduction. With a robust 20-Watt power handling capacity, it is engineered to safely manage significant power loads from transmitters and amplifiers, stepping them down to safe levels for spectrum analyzers, power meters, and receivers. This model is optimized for frequencies from DC to 3GHz, making it a vital tool for 4G/LTE, VHF/UHF broadcast, and standard telecommunications applications.

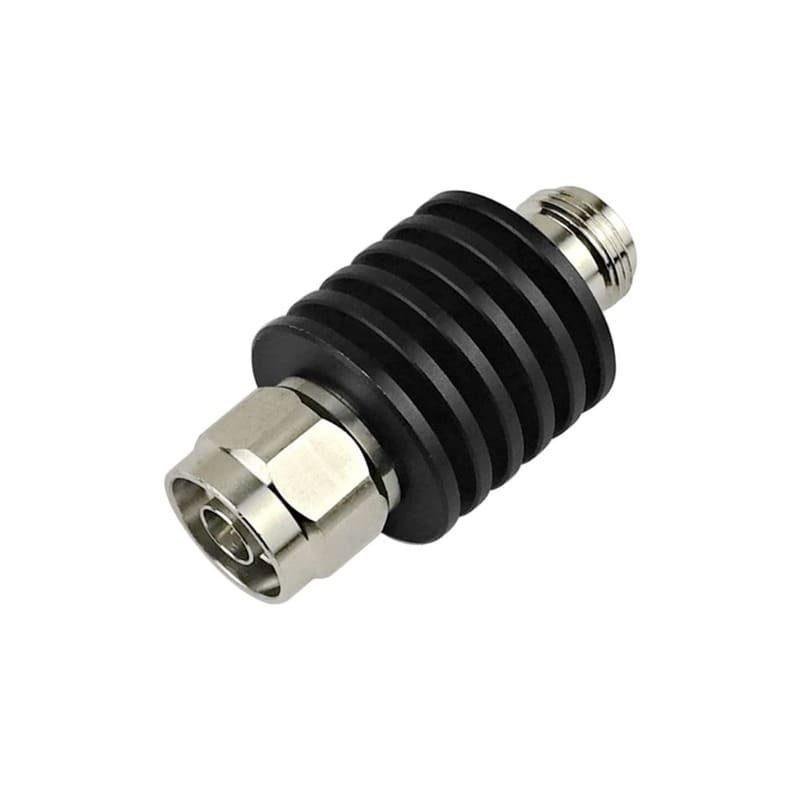

The attenuator features an N-Type Male to N-Type Female inline configuration with a high-reliability threaded coupling mechanism. To effectively manage the heat generated by 20W of continuous power, the device is housed in a ruggedized anodized aluminum heat-sink body with longitudinal cooling fins. This design ensures maximum thermal dissipation and prevents attenuation drift during continuous operation. Manufactured with premium PTFE dielectric and high-stability resistive elements, it maintains exceptional frequency flatness and low VSWR throughout its operating life.

Key Technical Advantages

• Precise 6dB Attenuation: Provides a reliable and accurate signal reduction (4:1 ratio), essential for balancing high-power signal chains and protecting high-precision test ports from saturation or damage.

• 20W High-Capacity Power Rating: Specifically designed for environments that exceed the limits of standard low-power attenuators, featuring a robust thermal design for high-duty-cycle use.

• Superior Thermal Management: The integrated finned heat-sink housing is optimized for efficient heat transfer, ensuring that internal resistive elements remain within safe operating temperatures.

• Excellent Impedance Stability: Precision-engineered internals provide a low VSWR across the entire 3GHz band, protecting expensive signal sources from harmful reflections.

• Rugged N-Type Interface: Features industrial-grade threaded connectors designed for a secure, vibration-resistant connection in both field and laboratory settings.

Key Features

• Interface Type: N-Type Male (Plug) to N-Type Female (Jack).

• Attenuation Value: 6dB (Fixed).

• Power Rating: 20 Watts (Continuous Average).

• Frequency Range: DC – 3.0 GHz.

• Impedance: 50 Ohm (Standard).

• Construction: Black Anodized Aluminum heat-sink with Nickel-Plated Brass connectors.

• Common Application: High-power transmitter testing, signal conditioning in wireless networks, inter-stage isolation, and RF laboratory measurements.
