Description

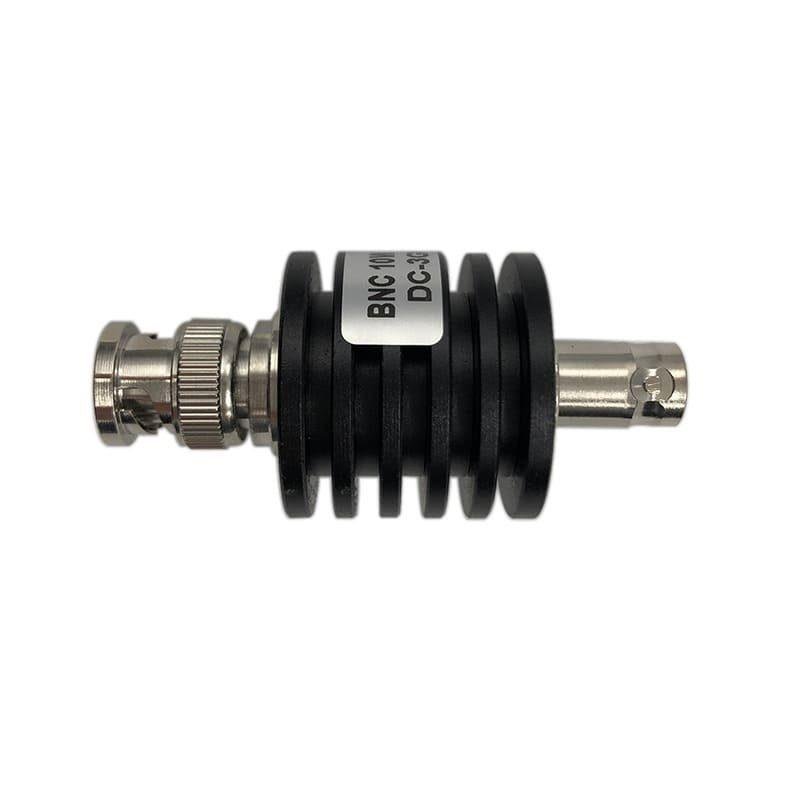

The 6dB 10W RF Fixed Attenuator is a high-performance passive component designed to reduce the power of an RF signal by exactly 6dB, providing a precise 4:1 power reduction. With a robust 10-Watt power handling capacity, it is engineered to safely manage moderate power loads from amplifiers and signal generators, stepping them down to safe levels for sensitive test equipment. This model is optimized for frequencies from DC to 3GHz, making it a vital tool for VHF/UHF communications, low-power broadcast, and general-purpose laboratory use.
The attenuator features a BNC Male to BNC Female inline configuration, utilizing the classic bayonet-style coupling mechanism for secure and fast mating. To effectively manage the heat generated by 10W of continuous power, the device is housed in a ruggedized anodized aluminum heat-sink body with longitudinal cooling fins. This design ensures maximum thermal dissipation and prevents attenuation drift during continuous operation. Manufactured with high-stability resistive elements and premium PTFE dielectric, it maintains excellent frequency flatness and low VSWR throughout its operating life.
Key Technical Advantages
-
Precise 6dB Attenuation: Provides a reliable four-fold power reduction, essential for balancing signal levels and protecting receiver front-ends from saturation.
-
10W Medium-Power Capacity: Specifically designed for environments that exceed the limits of standard low-power attenuators, featuring a robust thermal design for high-duty-cycle use.
-
Superior Thermal Management: The integrated finned heat-sink housing is optimized for efficient heat transfer, ensuring internal components stay within safe operating temperatures.
-
Quick-Connect BNC Interface: Features a bayonet coupling system for fast, reliable connections without the need for tools, ideal for test benches and field diagnostics.
-
Excellent Impedance Stability: Precision-engineered internals provide a low VSWR across the 3GHz band, protecting expensive signal sources from harmful reflections.
Key Features
-
Interface Type: BNC Male (Plug) to BNC Female (Jack).
-
Attenuation Value: 6dB (Fixed).
-
Power Rating: 10 Watts (Continuous Average).
-
Frequency Range: DC – 3.0 GHz.
-
Impedance: 50 Ohm (Standard).
-
Construction: Black Anodized Aluminum heat-sink with Nickel-Plated Brass connectors.
-
Common Application: Signal leveling in test setups, laboratory power management, inter-stage isolation, and protecting oscilloscope inputs.
🔹 Applications:
- RF signal reduction in BNC systems
- Broadcast and video equipment
- RF testing setups
- Signal conditioning
- Communication systems
- Measurement setups
