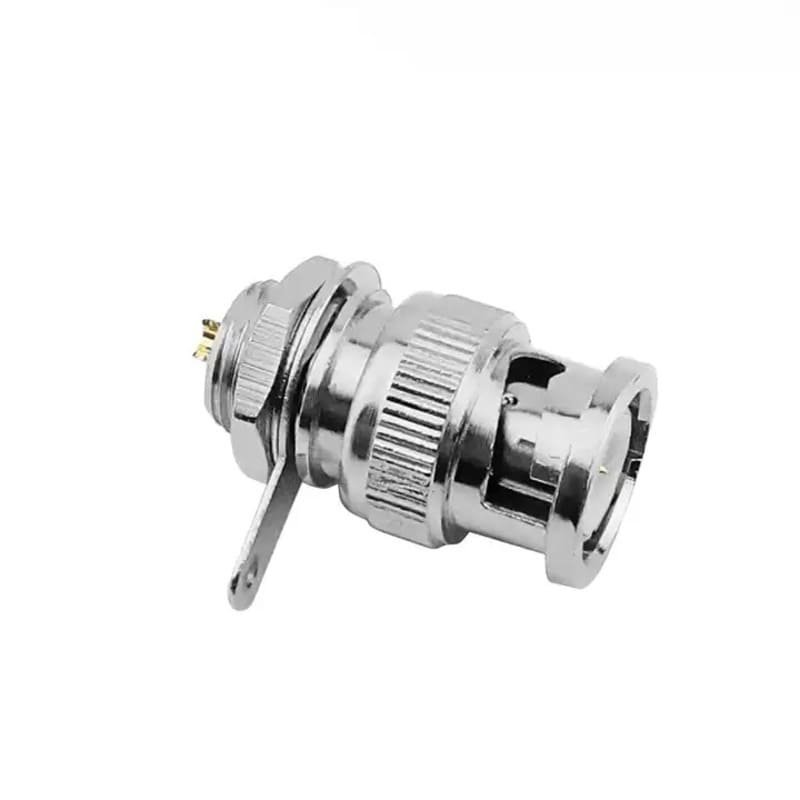

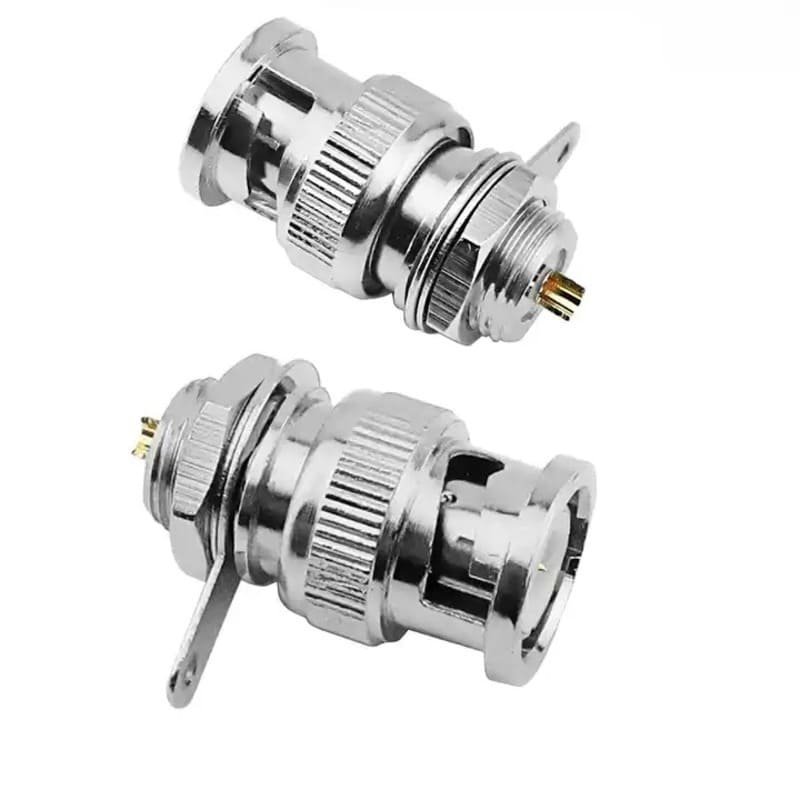

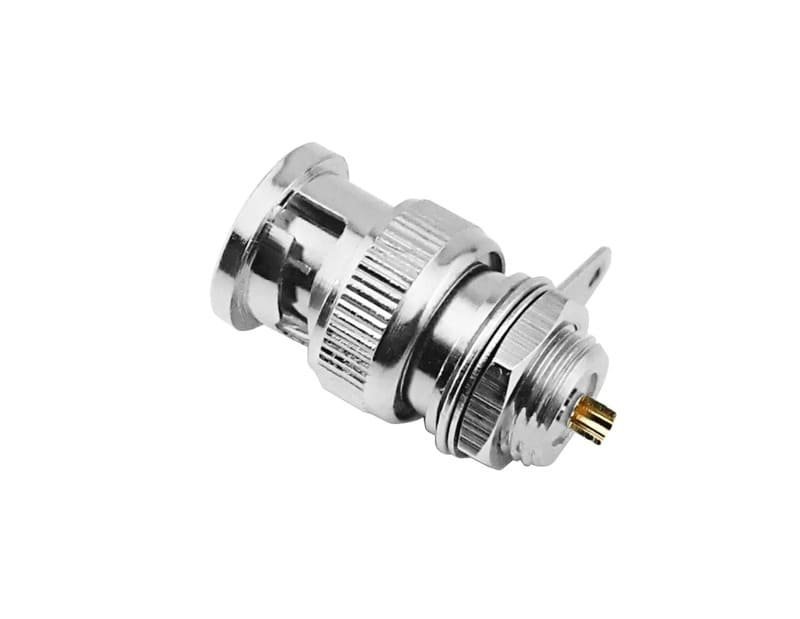

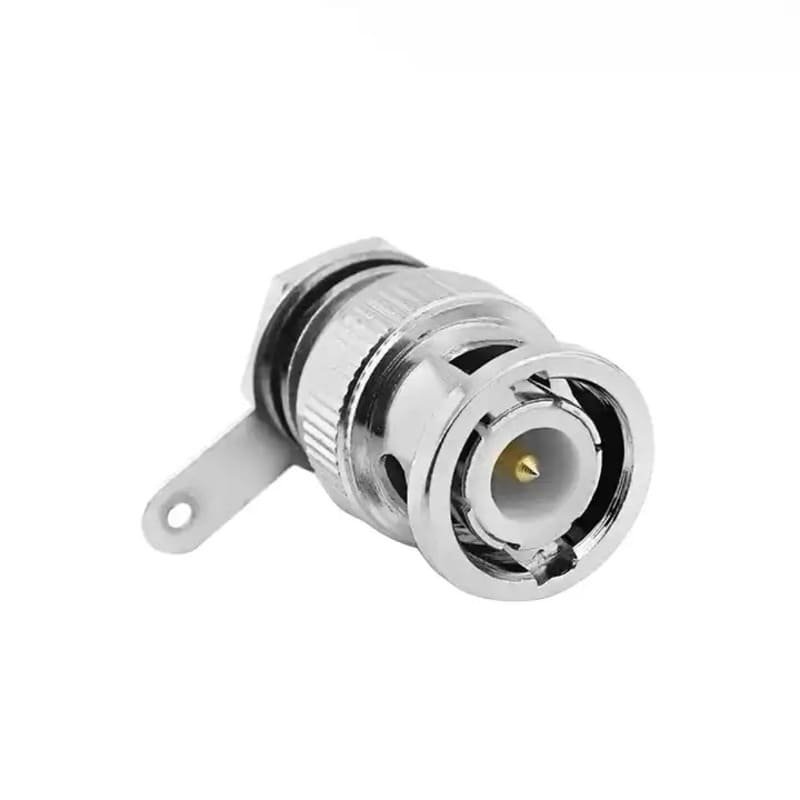

BNC M BH PCB MOUNT SOLDER

Description

The BNC male bulkhead PCB mount connector is a specialized RF component designed to provide a robust mechanical and electrical bridge between a printed circuit board (PCB) and an external port. Unlike standard female bulkhead jacks, this variant provides a male (plug) interface, allowing external female-terminated cables to connect directly to the equipment face. This design is essential for specific signal routing architectures and proprietary equipment configurations where the male interface must be hard-mounted to the chassis.

As a male interface (plug), it features the standard two-stud bayonet housing for rapid, vibration-resistant mating. The bulkhead mounting feature includes a threaded front-mount body with a lock washer and nut, ensuring that mechanical stress from mating cables is transferred to the chassis rather than the delicate solder joints on the PCB. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it maintains consistent impedance and high signal integrity for precision instrumentation and high-reliability communication modules.

Key Technical Advantages

• Chassis-to-Board Stability: Combines PCB through-hole mounting with a threaded bulkhead interface, providing maximum mechanical security and preventing board-level fatigue.

• Specialized Male Interface: Provides a hard-mounted plug interface on the enclosure, ideal for specific antenna or test port requirements where a standard female jack is not desired.

• Direct Solder Termination: Features precision-machined solder pins for the center conductor and multiple grounding legs, ensuring a permanent, low-resistance connection to the circuit traces.

• Standard Bayonet Housing: Features the industry-standard BNC male interface for rapid, tool-less mating that remains mechanically stable under physical stress.

• Superior Corrosion Resistance: Features a precision-machined nickel-plated body and gold-plated center pin to ensure low contact resistance and long-term protection against environmental oxidation.

Key Features

• Interface Type: BNC Male (Plug) with standard bayonet coupling.

• Mounting Style: Bulkhead Front-Mount with Straight PCB Through-Hole pins.

• Termination Method: Solder (Through-Hole).

• Body Configuration: Straight (Vertical).

• Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.

• Common Application: RF signal generators, specialized antenna ports, modular communications equipment, and industrial RF monitoring hardware.
