Description

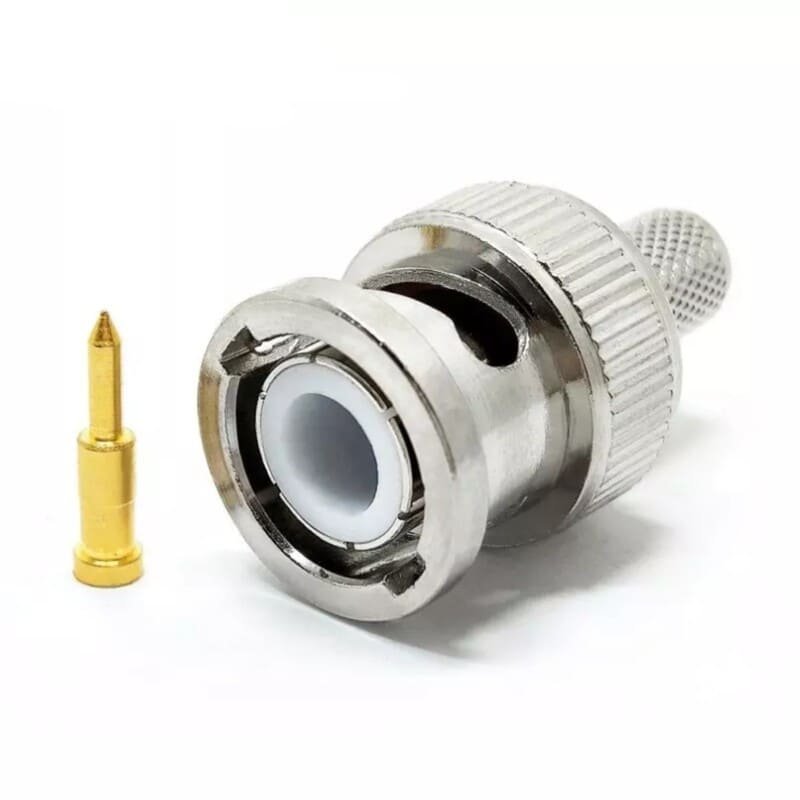

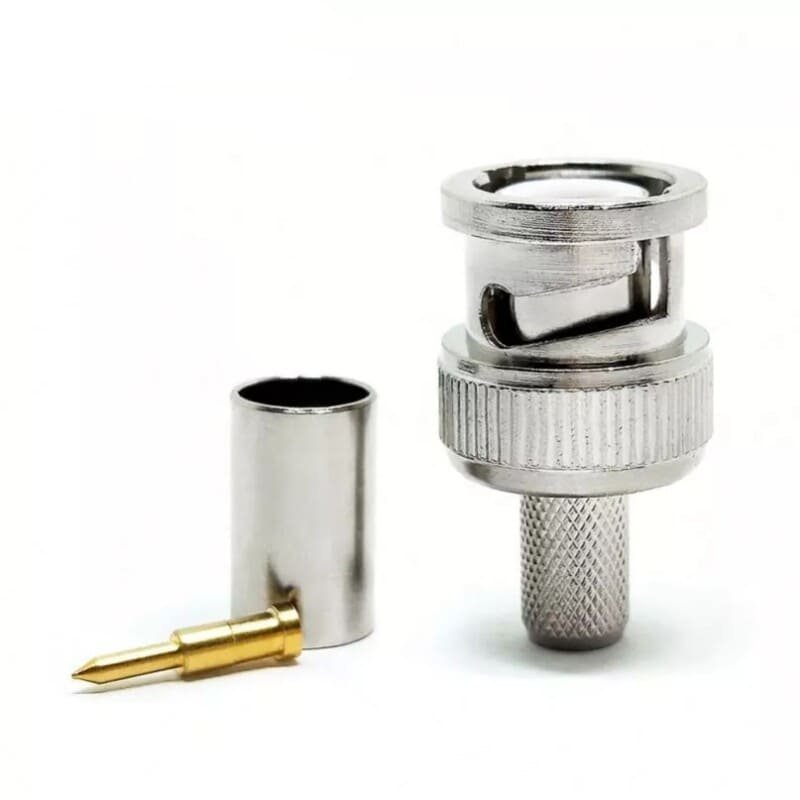

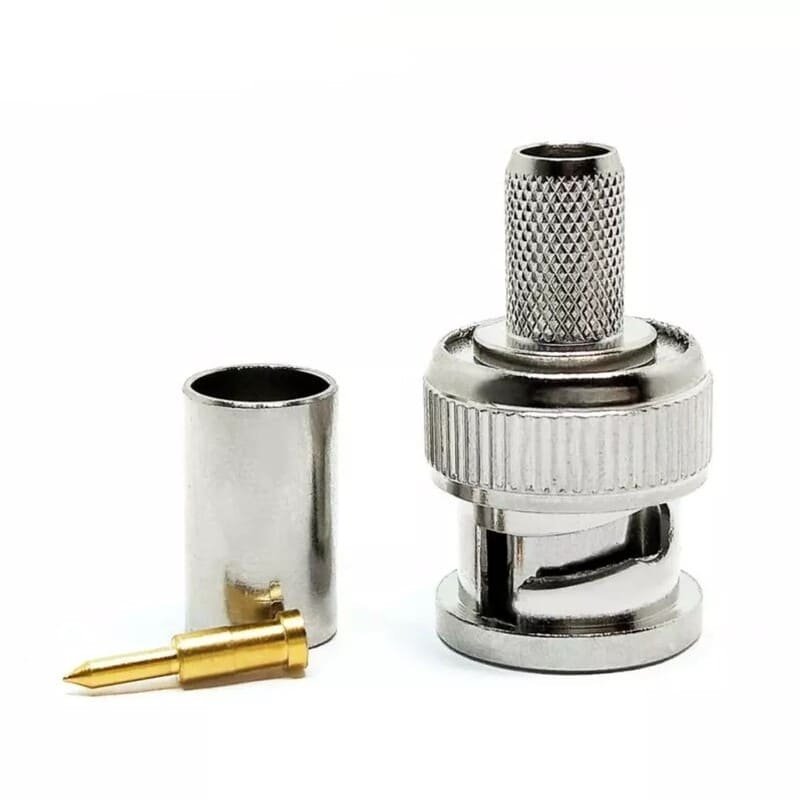

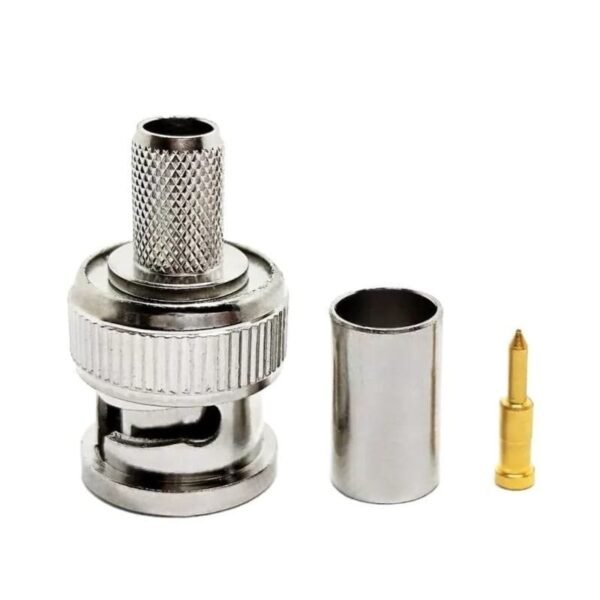

The BNC male crimp connector is a foundational RF component valued for its quick-connect/disconnect bayonet coupling and robust mechanical interface. This variant is specialized for the 6mm cable class, specifically optimized for standard RG59 coaxial cable, which is the industry standard for baseband video and CATV applications. As a male interface (plug), it features a precision center pin and a rugged housing designed for secure, vibration-resistant engagement with BNC jacks.
This connector utilizes a hex-crimp termination system for the outer conductor, providing a high-strength 360-degree mechanical bond and superior strain relief. This ensures consistent electrical contact and prevents the cable from pulling away from the connector during installation or maintenance. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent impedance matching and reliable signal integrity, making it ideal for maintaining high-quality video signals in both commercial and residential environments.
Key Technical Advantages
-
Efficient Crimp Termination: The hex-crimp design allows for rapid, repeatable assembly, making it ideal for high-volume production, security camera installations, and cabling workshops.
-
Precision RG59 Match: Specifically calibrated for the ~0.242″ OD cable family, ensuring a precise mechanical fit and optimized electrical transition for standard video distribution lines.
-
Secure Bayonet Coupling: Features the industry-standard bayonet locking mechanism for tool-less mating that remains mechanically stable under vibration and constant movement.
-
High Mechanical Stability: The crimp sleeve provides superior pull-off resistance and robust strain relief, maintaining electrical contact even under physical stress.
-
Superior Corrosion Resistance: Features a precision-machined nickel-plated body and gold-plated center contact to ensure low contact resistance and long-term protection against oxidation.
Key Features
-
Interface Type: BNC Male (Plug) with standard bayonet coupling.
-
Termination Method: Crimp (Outer Braid) / Solder or Crimp (Center Pin).
-
Cable Compatibility: Optimized for RG59 and equivalent 75-Ohm (or 50-Ohm variant) coaxial cables.
-
Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.
-
Common Application: CCTV surveillance systems, analog broadcast video, RF signal jumpers, and composite video routing.
🔹 Applications:
- CCTV and surveillance systems
- Video signal transmission
- Broadcast systems
- RF communication
- Antenna connections
- Signal routing
