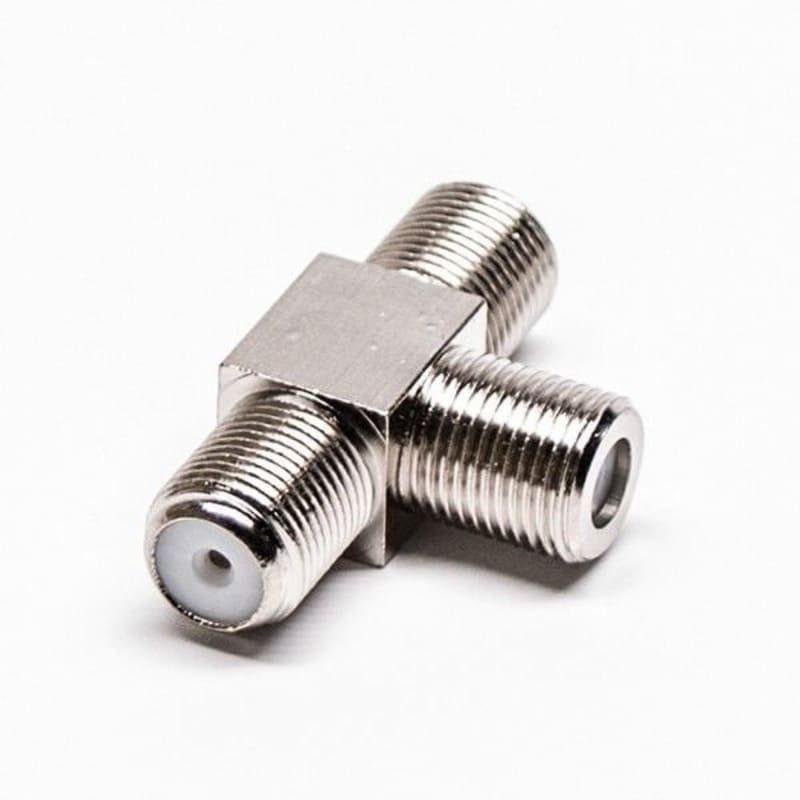

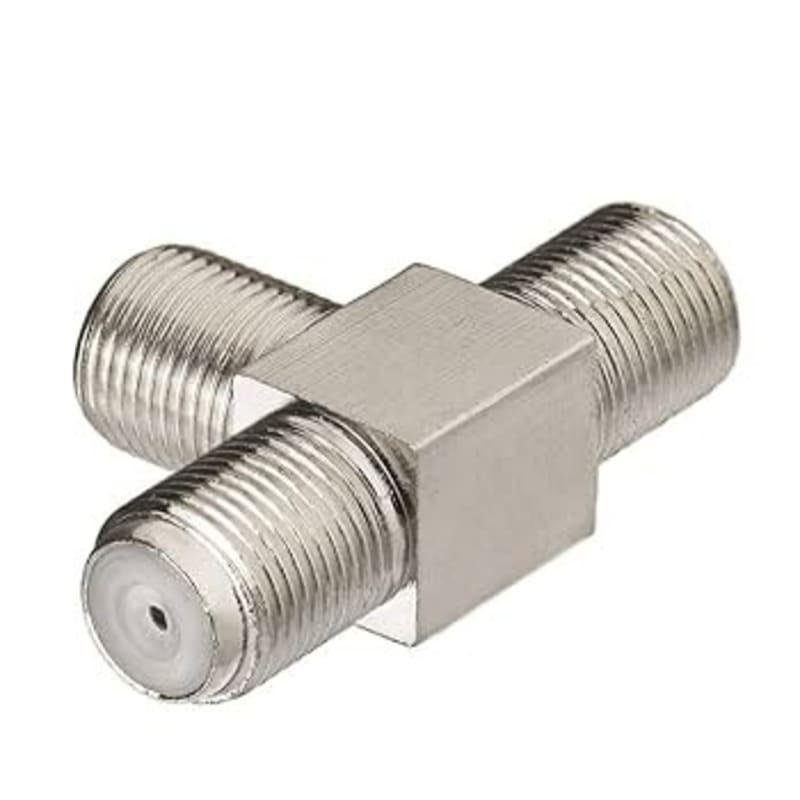

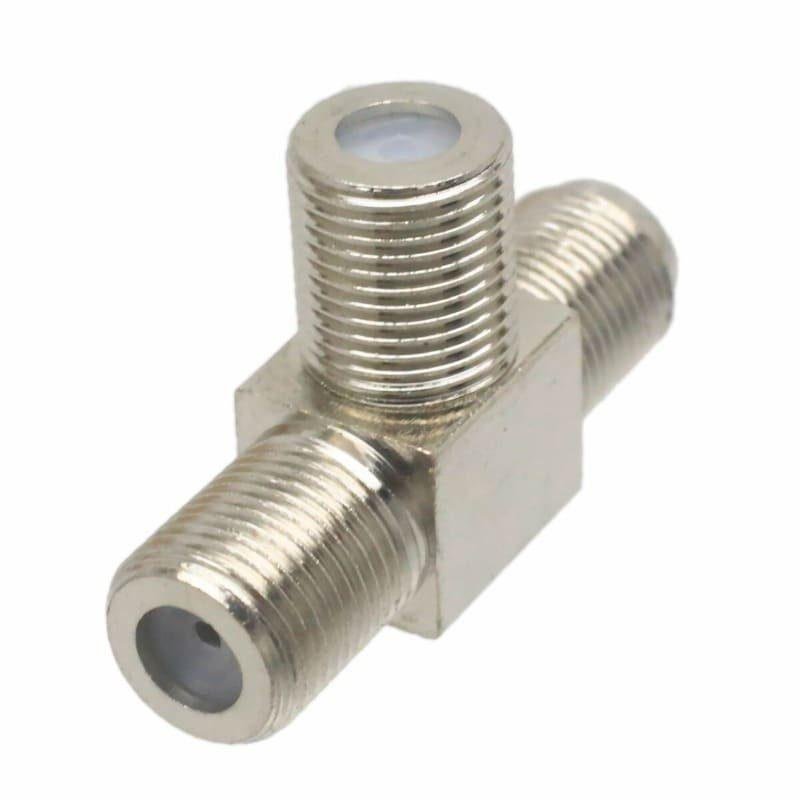

F-Type Tee-Type Adaptor (F-F-F), DC to 4 GHz

Description

The F-Type Tee-Type Adapter (Female-Female-Female) is a precision RF component designed to branch a single signal path into two, or to combine two signals into one, using three standard F-Type Female interfaces. While standard F-connectors are often associated with residential cable TV, this high-spec adapter is precision-machined to maintain signal integrity and low return loss up to 4 GHz. This makes it an essential tool for modern satellite L-band distribution, DOCSIS 3.1/4.0 network testing, and advanced broadband laboratory environments.

The adapter features a Nickel-Plated Brass body for superior durability and corrosion resistance. It is equipped with high-retention Gold-Plated center contacts on all ports to ensure maximum conductivity and a reliable physical interface through repeated mating cycles. The 3/8-32 threaded interfaces provide a secure, vibration-resistant connection with F-Type male plugs. This specific F-F-F configuration is most commonly used as a central high-frequency hub to join three F-Type male-terminated cables, allowing for clean signal distribution without the need for additional gender changers.

Key Technical Advantages

• Extended 4 GHz Bandwidth: Engineered to operate far beyond the limits of standard consumer splitters, supporting high-frequency satellite (IF) signals and high-speed data protocols.

• Optimized 75 Ohm Impedance: Precision-tuned to maintain a strict 75 Ohm impedance, essential for preventing signal reflections and ghosting in high-definition video and data systems.

• Triple-Female Versatility: Facilitates the interconnection of multiple F-Type male cables, making it an ideal central junction for high-density broadband signal splitting.

• Superior Signal Integrity: High-quality internal dielectrics and precision internal geometry minimize signal attenuation and phase distortion across the entire spectrum.

• Rugged Mechanical Design: The nickel-plated brass construction provides excellent mechanical resilience and RF shielding for demanding field and laboratory use.

Key Features

• Adapter Type: Tee-Type (T-Shape).

• Interface: 3x F-Type Female (Jack).

• Impedance: 75 Ohm.

• Body Material: Brass (Nickel Plated).

• Contact Material: Phosphor Bronze or Beryllium Copper (Gold Plated).

• Insulator: High-Frequency PTFE or Polypropylene.

• Common Applications: Satellite signal distribution, DOCSIS 3.1/4.0 testing, professional CATV headends, and broadband laboratory manifolds.
