Description

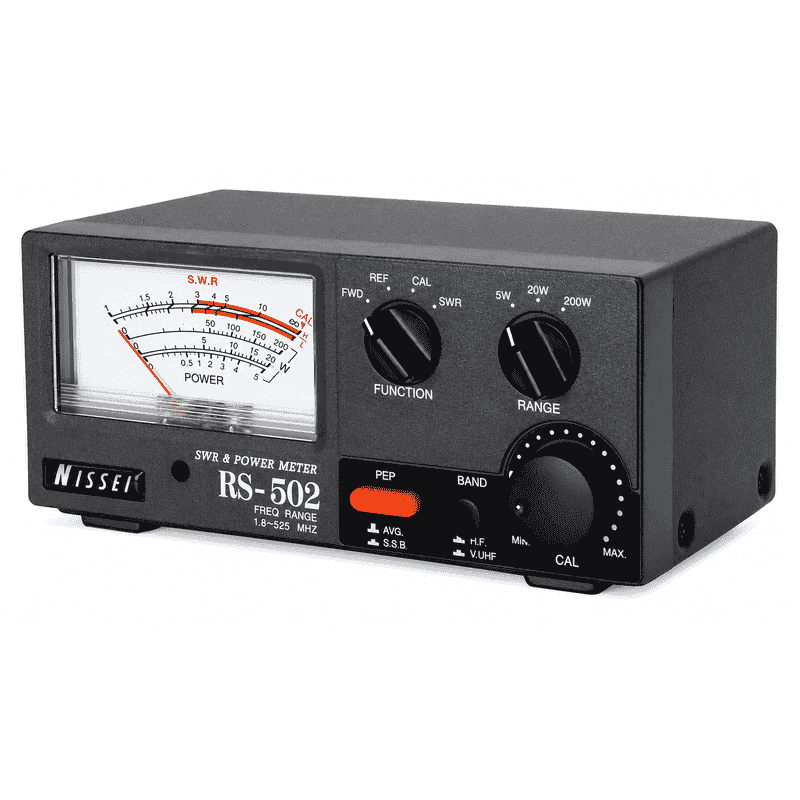

The NISSEI RS-502 Analog SWR Meter is a precision RF measurement device designed for accurate SWR, forward power, and reflected power monitoring across HF, VHF, and UHF frequency bands. Covering a wide frequency range from 1.6 MHz to 525 MHz with up to 200W power handling capacity, this analog SWR meter is ideal for antenna tuning, RF diagnostics, and communication system optimization.
Engineered for professional RF testing environments, the meter provides stable and reliable readings for radio operators, telecom engineers, broadcasting systems, and wireless communication networks. The easy-to-read analog display enables real-time signal analysis and efficient impedance matching, helping reduce transmission loss and improve antenna performance.
Its compact and durable construction ensures long-term reliability for both field operations and laboratory use. The device supports a wide range of RF applications where accurate power monitoring and VSWR measurement are essential.
Key Features
- Frequency Range: 1.6–525 MHz
- Power Handling Capacity up to 200W
- Accurate SWR and RF Power Measurement
- Supports HF, VHF & UHF Bands
- Real-Time Analog Display Monitoring
- Durable and Compact Design
- Reliable Antenna Tuning Performance
- Suitable for RF Testing and Diagnostics
Specifications
- Frequency Range: 1.6–525 MHz
- Accuracy Class: ±5%
- Maximum Power Capacity: 200W
- Meter Type: Analog Illuminated SWR Meter
- Functions: SWR / Forward Power / Reverse Power / PEP Measurement
- Impedance: 50 Ohm
- Measuring Voltage: DC 13.8V
- Dimensions: 140 × 82 × 122 mm
- Display Type: Backlit Analog Display
- Application Support: HF / VHF / UHF Bands
- Usage: RF Power Monitoring & Antenna Tuning
- Construction: Compact Metal Body Design
- Connectivity: RF Coaxial Connector Compatible
- Suitable For: Ham Radio, Telecom, Broadcasting & RF Labs
Applications
- Amateur Ham Radio Systems
- RF Communication Testing
- Antenna Tuning and Matching
- Telecom Infrastructure Maintenance
- Broadcasting Station Monitoring
- Wireless Communication Networks
- RF Laboratory and Research Applications
- Repeater and Base Station Testing
- Coaxial Cable Signal Analysis
- Industrial RF Equipment Diagnostics
