Mini DIN Female to 7/16 DIN Female Adapter

Description

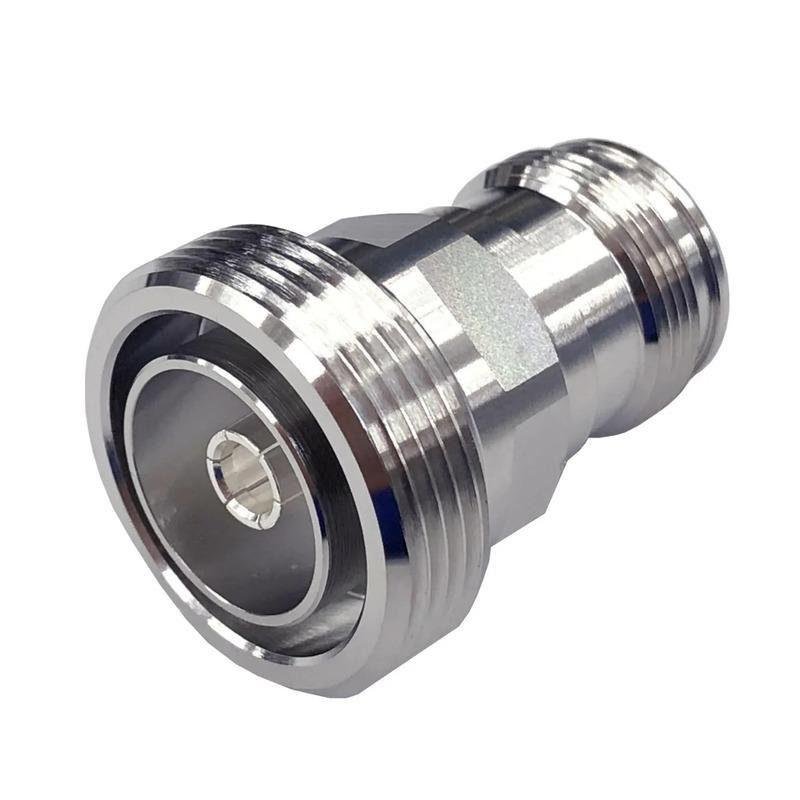

The Mini DIN (4.3-10) Female to 7/16 DIN Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between two prominent low-PIM standards. It features a 4.3-10 Jack (Female) on one side, representing the compact “Mini DIN” standard utilized in modern 5G and DAS deployments, and a 7/16 DIN Jack (Female) on the other, featuring the large-format threaded interface known for its exceptional power handling in macro cell environments.

This adapter is indispensable for telecommunications engineers who need to join different cable types or interface 4.3-10 male cable ends with 7/16 DIN male connections. The precision-machined design ensures a constant 50 Ohm impedance and is specifically optimized to maintain ultra-low Passive Intermodulation (PIM) levels, which is critical for preventing signal interference in multi-carrier networks. Constructed with a heavy-duty tri-metal (white bronze) plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 6 GHz.

Key Technical Advantages

• Ultra-Low PIM Performance: Specifically engineered to minimize passive intermodulation, ensuring clean signal transmission in high-speed 4G LTE and 5G environments.

• Modern-to-Legacy Interoperability: Enables seamless integration between the latest 4.3-10 (Mini DIN) small cell hardware and traditional 7/16 DIN infrastructure.

• Superior RF Shielding: The solid brass construction and tri-metal plating provide an exceptional ground path, protecting against EMI and signal leakage across high-frequency bands.

• Rugged Mechanical Stability: The durable housing is designed to handle the mechanical stress associated with joining different sizes of high-power coaxial cables.

• Maximum Conductivity: High-purity silver or gold plating on the internal center contact sockets ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• 4.3-10 Female to 7/16 DIN Female Interface: Consists of a 4.3-10 Jack (with socket) and a 7/16 DIN Jack (with socket) for joining two male plugs.

• Tri-Metal / White Bronze Plating: Offers superior electrical conductivity and a non-magnetic finish that significantly reduces PIM compared to nickel plating.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in demanding outdoor tower-top and base station applications.

• Precision 50 Ohm Match: Specifically engineered to match standard high-power communication and test instrumentation.

🔹 Applications:

• RF Signal Interface between Mini DIN and 7/16 DIN Connectors
• Antenna & RF Cable Adaptation
• Telecom Base Stations & Infrastructure
• Wireless Communication Systems
• RF Test & Measurement Equipment
• High Power RF Transmission Systems
• RF Coaxial Cable Assemblies
• Outdoor & Industrial RF Installations
