N M CRIMP for LMR240 Cable

Description

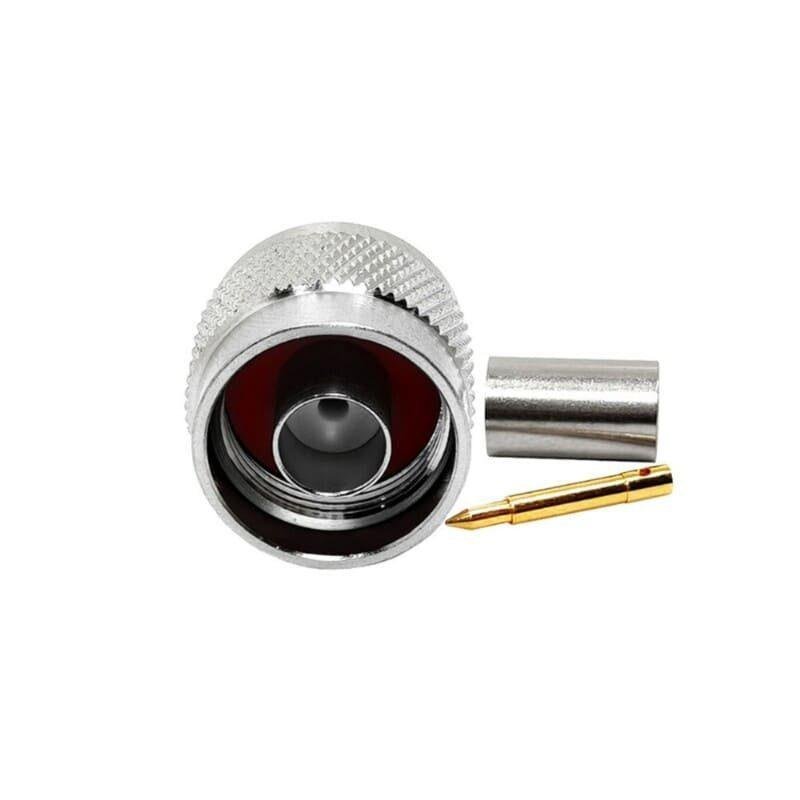

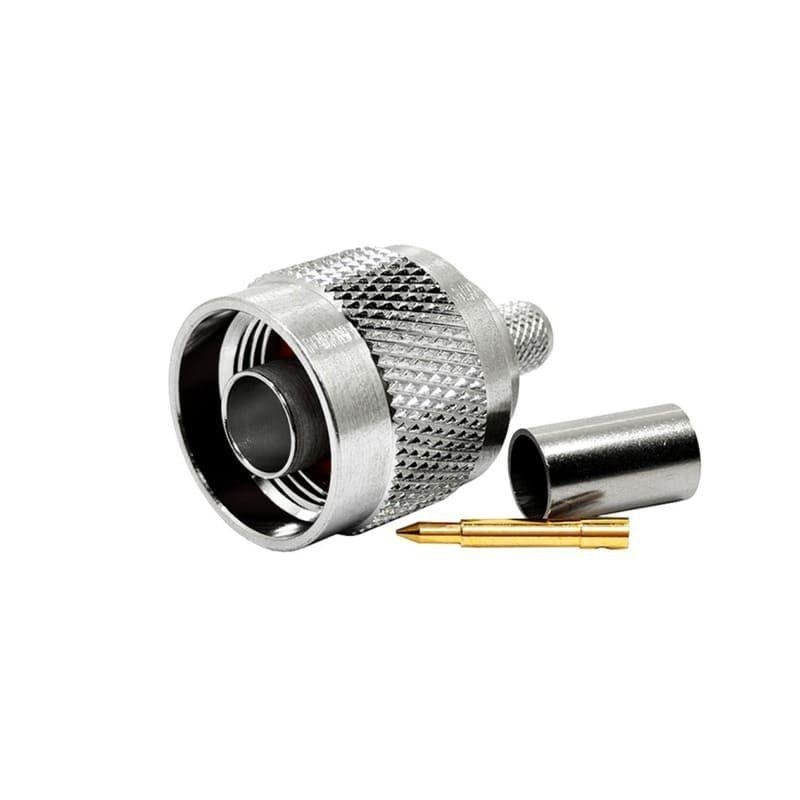

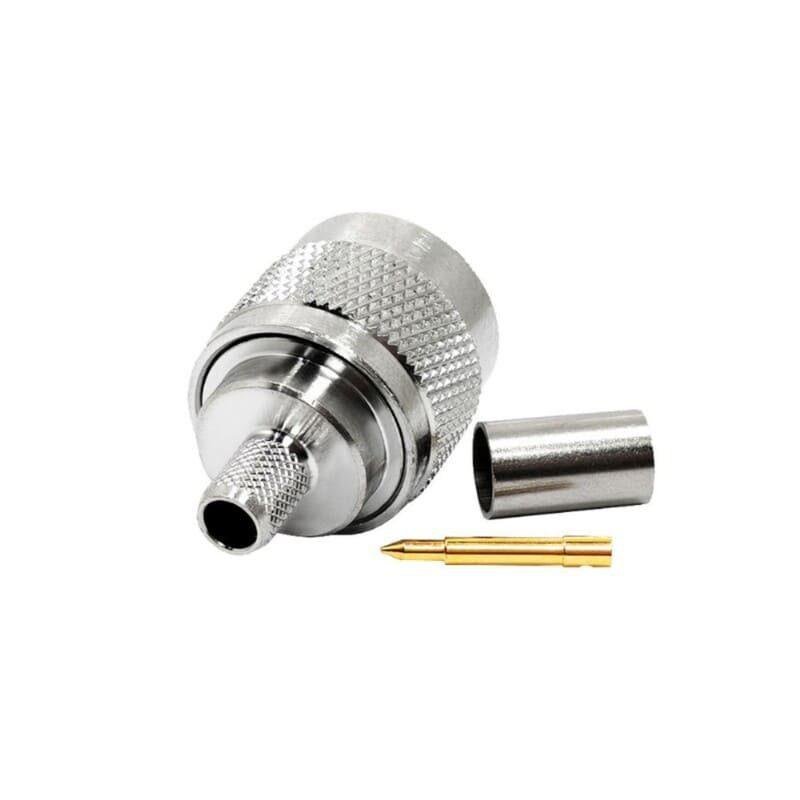

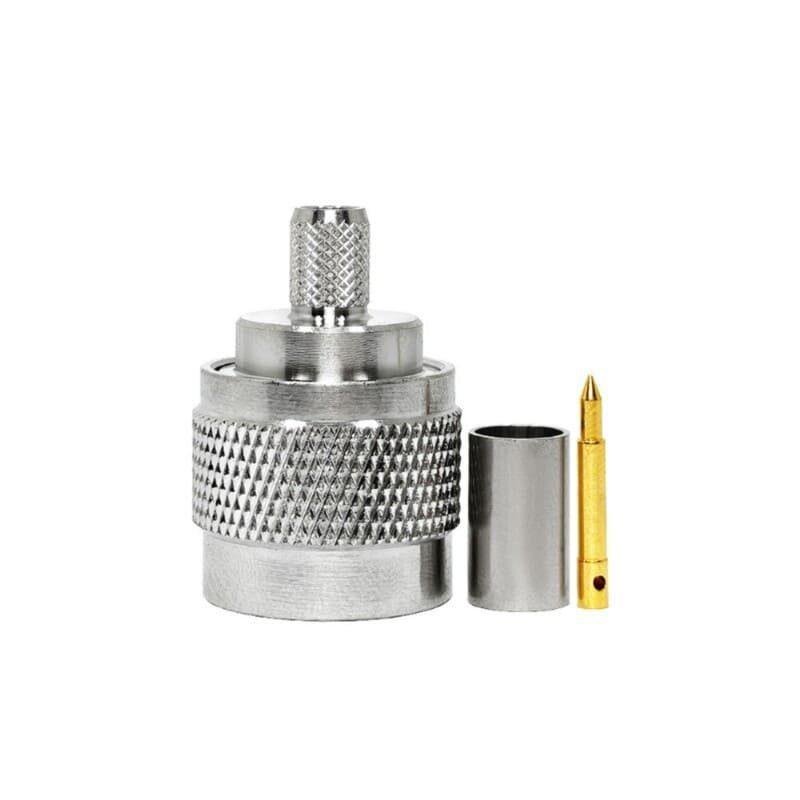

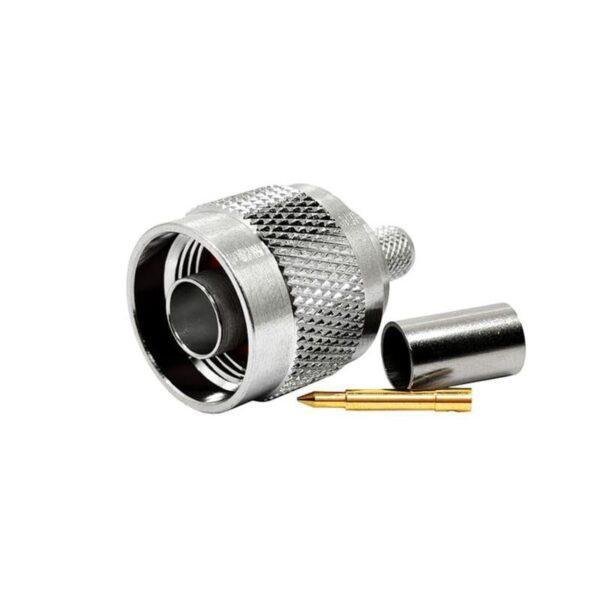

The N-Type connector is a heavy-duty RF interface designed to provide low-loss performance at microwave frequencies while handling medium to high power levels. This male (plug) variant is specialized for the 6.1mm (0.240″) cable class, specifically optimized for high-performance LMR240 and equivalent low-loss coaxial cables. It provides a precision electrical transition between high-bandwidth equipment ports and flexible, low-attenuation cabling.

This connector utilizes a professional crimp termination system. The outer ferrule is calibrated to provide a high-strength 360-degree mechanical bond with the cable’s braid and jacket, while the precision-machined center pin is typically soldered to the center conductor for maximum signal stability. Manufactured with a heavy-duty nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and low VSWR up to 11 GHz. The threaded coupling provides superior mechanical stability and environmental sealing, making it ideal for outdoor wireless infrastructure and mobile communication units.

Key Technical Advantages

• LMR240 Precision Match: Specifically calibrated for the 0.240-inch OD cable class, ensuring a high-strength pull-off resistance and an optimized electrical transition for low-loss coaxial lines.

• Low-Loss Performance: Engineered to maintain signal integrity across a wide frequency range, making it suitable for modern LTE, Wi-Fi 6, and 5G mid-band applications.

• Rugged Threaded Coupling: The 5/8-24 threaded mechanism provides a secure, vibration-proof connection, maintaining stable performance in high-shock industrial or outdoor environments.

• Superior EMI/RFI Shielding: The solid metal construction and threaded design offer exceptional shielding, significantly reducing signal leakage and protecting sensitive microwave circuits.

• Industrial-Grade Build: Features a nickel-plated brass body for maximum corrosion resistance and a gold-plated center contact for consistent signal clarity over the life of the hardware.

Key Features

• Interface Type: N-Type Male (Plug) with standard 5/8-24 threaded coupling.

• Termination Method: Crimp (Outer Ferrule) / Solder (Center Pin).

• Cable Compatibility: Optimized for LMR240 and equivalent 0.240″ low-loss coaxial cables.

• Premium Construction: Features a nickel-plated brass body and high-performance PTFE dielectric.

• Common Application: Antenna jumpers, wireless base stations, GPS systems, and laboratory test leads.

🔹 Applications:

• Medium power RF systems
• Telecom and antenna connections
• RF signal routing
• Wireless communication
• Test setups
• Communication systems
