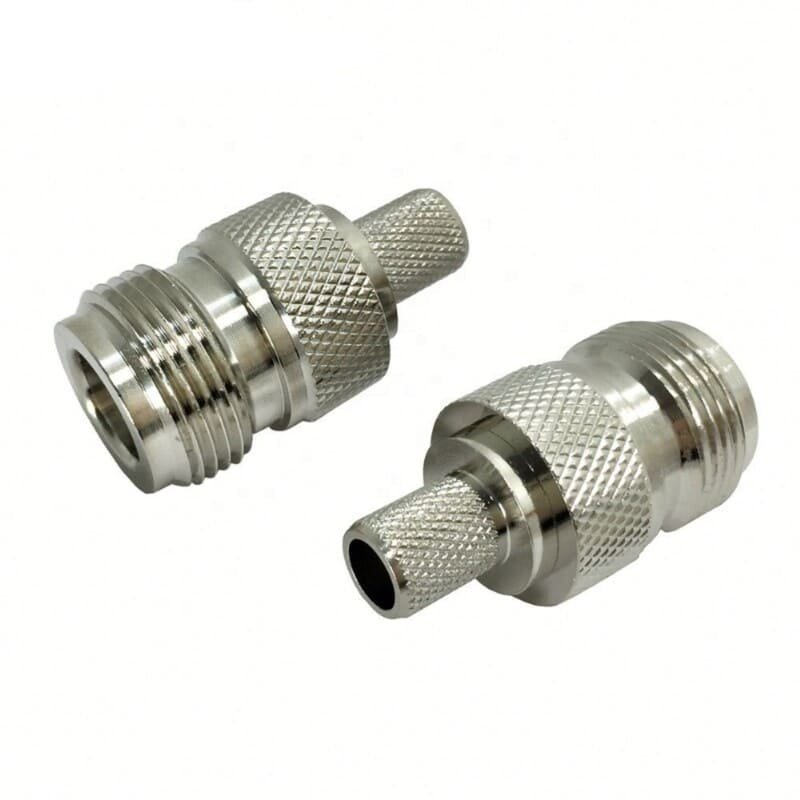

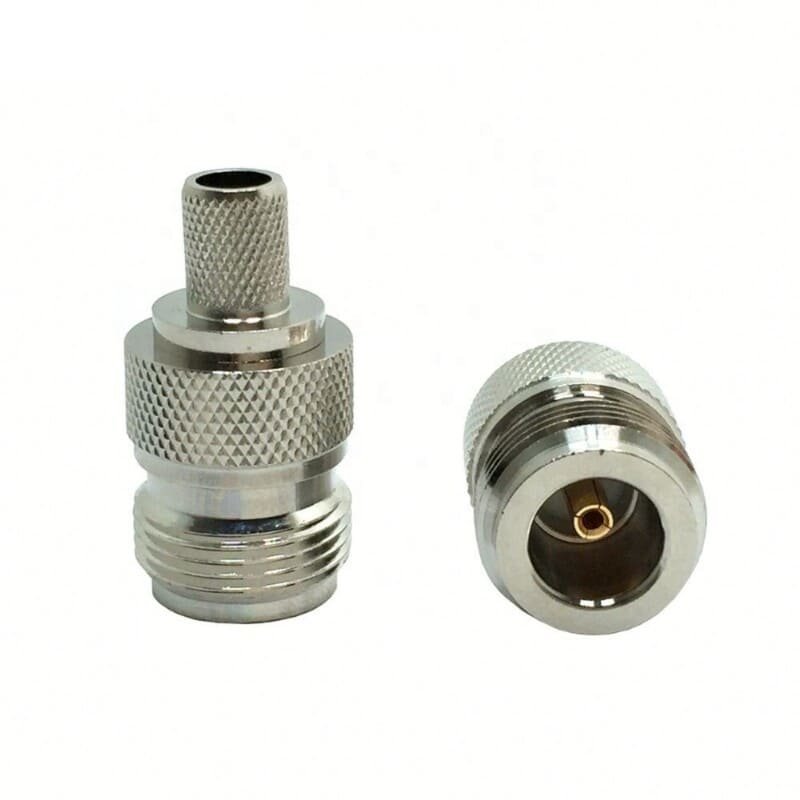

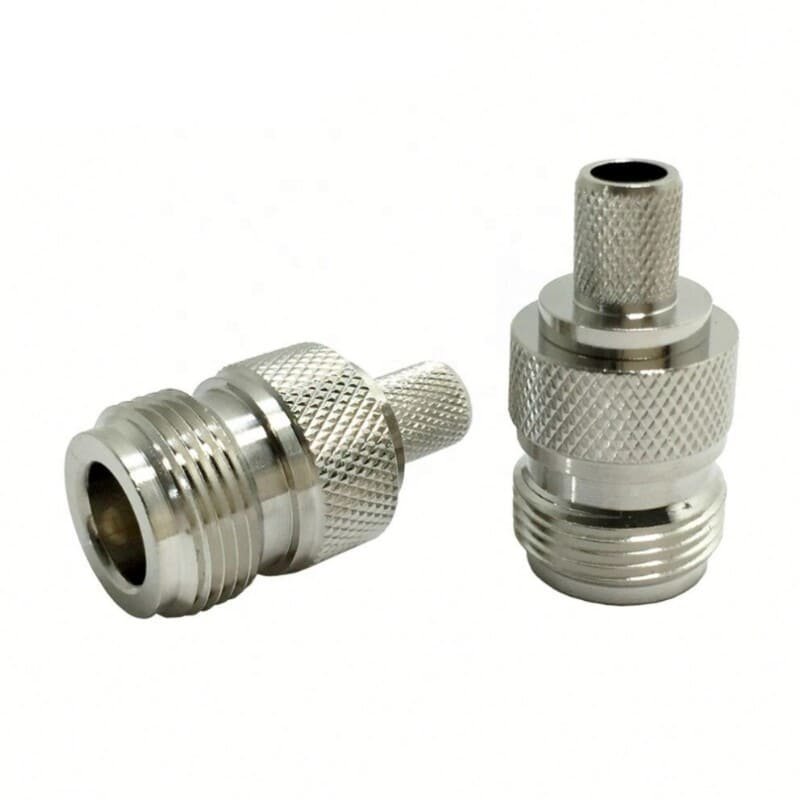

N M CRIMP for RG6 Cable

Description

The N-Type connector is the industry standard for high-reliability RF infrastructure, prized for its mechanical durability and stable electrical performance. This variant is specialized for the 6.8mm to 7.0mm (0.270″ – 0.275″) cable class, specifically optimized for the popular RG6 coaxial cable. While RG6 is common in 75-Ohm video applications, this 50-Ohm N-Type connector allows system integrators to utilize the low-loss properties and widespread availability of RG6 within 50-Ohm RF environments, such as signal amplification and broadband data links.

This connector utilizes a standard hex-crimp termination system for the outer conductor. This provides a high-strength, 360-degree mechanical bond that is highly resistant to pull-off and vibration, making it ideal for both residential and commercial rooftop installations. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent electrical performance and low VSWR up to 6 GHz. The center contact is designed for soldering to ensure a permanent, high-integrity electrical connection with the cable’s center conductor, maintaining signal clarity over long cable runs.

Key Technical Advantages

• RG6 Versatility: Specifically calibrated for the outer diameter and dielectric profile of RG6, allowing for a secure mechanical fit and a clean electrical transition.

• Secure Crimp Termination: The hex-crimp sleeve provides a robust mechanical grip on the cable braid and foil, offering excellent strain relief and maximum EMI/RFI shielding.

• Streamlined Installation: The crimp-style assembly allows for fast, repeatable, and high-integrity terminations using standard RF crimping tools.

• Vibration-Proof Threaded Interface: The 5/8-24 threaded coupling ensures a secure, locked connection that maintains signal continuity in high-wind or high-vibration outdoor environments.

• High-Grade Materials: Features a nickel-plated brass body and a gold-plated center contact for maximum corrosion resistance and stable signal integrity over the life of the installation.

Key Features

• Interface Type: N-Type Male (Plug) with standard 5/8-24 threaded coupling.

• Termination Method: Crimp (Outer Braid) / Solder (Center Pin).

• Cable Compatibility: Optimized for RG6 and equivalent 0.275″ 50/75-Ohm coaxial cables.

• Premium Construction: Features a nickel-plated brass body and high-performance PTFE dielectric.

• Common Application: Cellular signal boosters, WLAN antenna arrays, wireless local loop, and custom RF jumper cables.

🔹 Applications:

• CATV and broadband systems
• Video transmission
• RF signal routing
• Communication systems
• CCTV setups
• Signal distribution
