N M RA CRIMP for RG58/RG142/LMR195/LMR200 Cable

Description

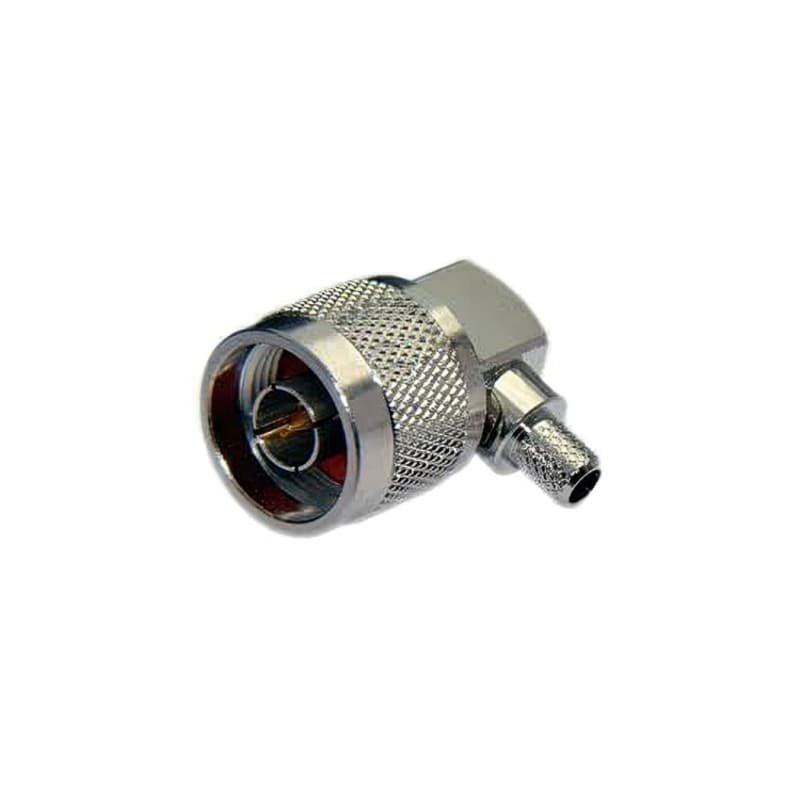

The N-Type connector is favored for its rugged construction and stable electrical characteristics at microwave frequencies. This Right Angle (RA) variant is specialized for the 5.0mm (0.195″ – 0.200″) cable class, optimized for high-performance LMR200 and double-shielded RG142. The 90-degree elbow configuration is essential for tight-clearance applications, allowing for clean cable management without exceeding the minimum bend radius of the cable, which prevents signal degradation and internal stress.

This connector utilizes a standard hex-crimp termination system for the outer conductor. This provides a fast, repeatable, and high-strength mechanical bond that is resistant to pull-off and vibration, making it superior for mobile and outdoor environments. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and low VSWR up to 11 GHz. The center contact is designed for soldering to ensure the highest electrical integrity and a permanent bond with the cable’s center conductor.

Key Technical Advantages

• Compact 90° Routing: The right-angle design significantly reduces the depth required for connections, making it perfect for small enclosures, vehicle dashboards, and high-density interface panels.

• Secure Crimp Termination: The hex-crimp sleeve ensures a robust, 360-degree mechanical grip on the cable braid, providing excellent strain relief and maximum electrical shielding.

• Mid-Size Cable Precision: Specifically calibrated for the 0.195-inch to 0.200-inch OD cable family, ensuring an optimized transition from the connector interface to the transmission line.

• Vibration-Proof Threaded Interface: The 5/8-24 threaded coupling provides a locked, stable connection that resists loosening in mobile, marine, or high-vibration industrial environments.

• High-Grade Materials: Features a nickel-plated brass body and a gold-plated center contact for maximum corrosion resistance and consistent signal clarity over the life of the product.

Key Features

• Interface Type: N-Type Male (Plug) Right Angle (90°) with standard 5/8-24 threaded coupling.

• Termination Method: Crimp (Outer Braid) / Solder (Center Pin).

• Cable Compatibility: Optimized for RG58, RG142, LMR195, LMR200, and equivalent 50-Ohm cables.

• Premium Construction: Features a nickel-plated brass body and high-performance PTFE dielectric.

• Common Application: Vehicular mobile radio, GPS antenna arrays, wireless modules, and tactical communication links.
