Description
The SMA Male Crimp Connector for LMR240 is a precision RF component designed for applications requiring high signal integrity and mechanical durability. LMR240 is a popular low-loss cable, and this connector is sized to accommodate its specific dimensions, including the 0.240-inch outer diameter and foam dielectric.
The termination process utilizes a hex-crimp method for the outer ferrule, while the center pin can be either crimped or soldered depending on the specific model. This creates a permanent, 360-degree mechanical bond that ensures maximum pull-strength and superior electrical grounding. Constructed with a gold-plated brass or stainless steel body, these connectors maintain a strict 50 Ohm impedance and are typically rated for reliable performance from DC up to 6 GHz, with high-precision variants reaching 12.4 GHz.
Key Technical Advantages
-
Optimized for 240-Series: Specifically designed for the dielectric and shield diameters of LMR240, ensuring a perfect fit and preventing signal leakage.
-
High-Strength Mechanical Bond: The hex-crimp ferrule provides a rugged attachment that resists physical strain and vibration.
-
Superior Signal Integrity: Precision-machined to ensure a consistent 50 Ohm match, minimizing VSWR and insertion loss in high-frequency paths.
-
Corrosion Resistance: High-purity gold or nickel plating protects the connector from oxidation and ensures reliable conductivity.
-
Industrial Durability: Rated for at least 500 mating cycles, maintaining stable electrical contact throughout its operational life.
Key Features
-
Crimp/Solder Termination: Offers flexibility in assembly, allowing for a fast crimp or a high-precision solder connection for the center pin.
-
PTFE (Teflon) Insulator: Features a premium dielectric for high thermal stability and low signal attenuation.
-
Standard 1/4-36 Threaded Nut: Guaranteed compatibility with all standard SMA female jacks and bulkhead adapters.
-
Broad Frequency Support: Reliably handles signals for 4G/LTE, 5G, GPS, and WiFi applications.
-

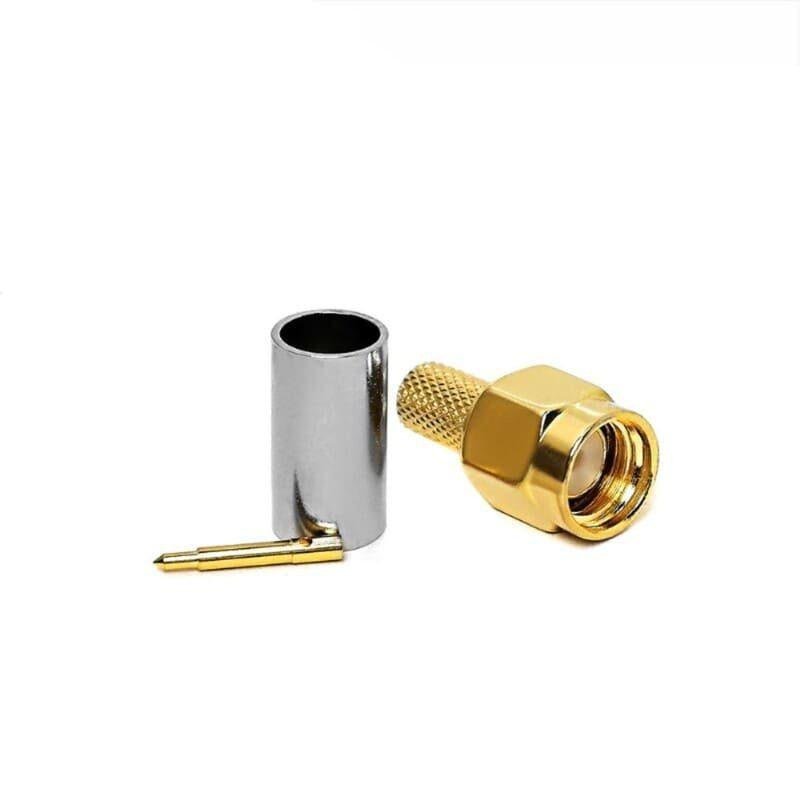

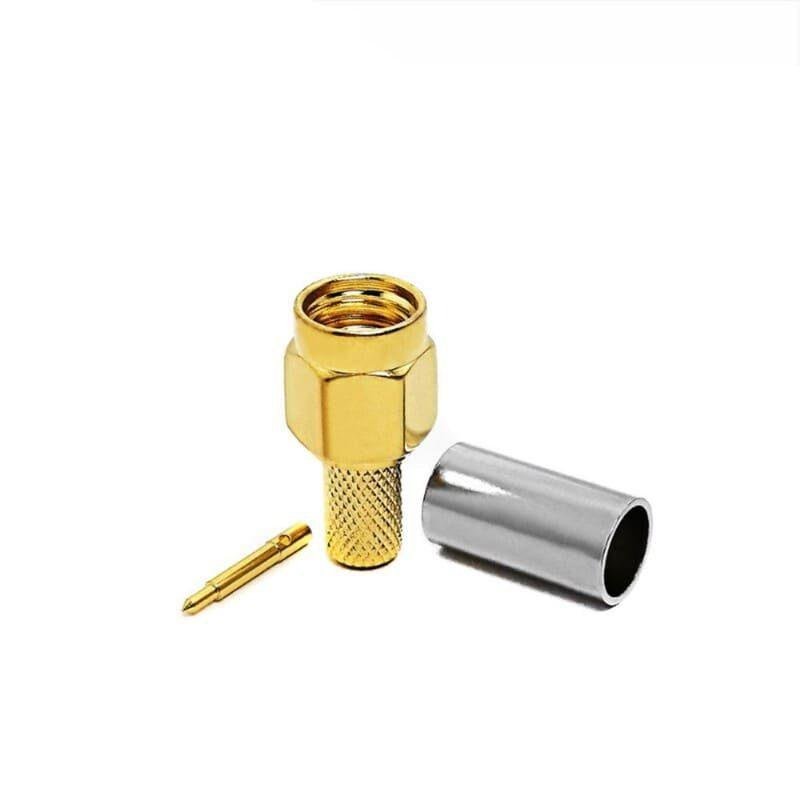

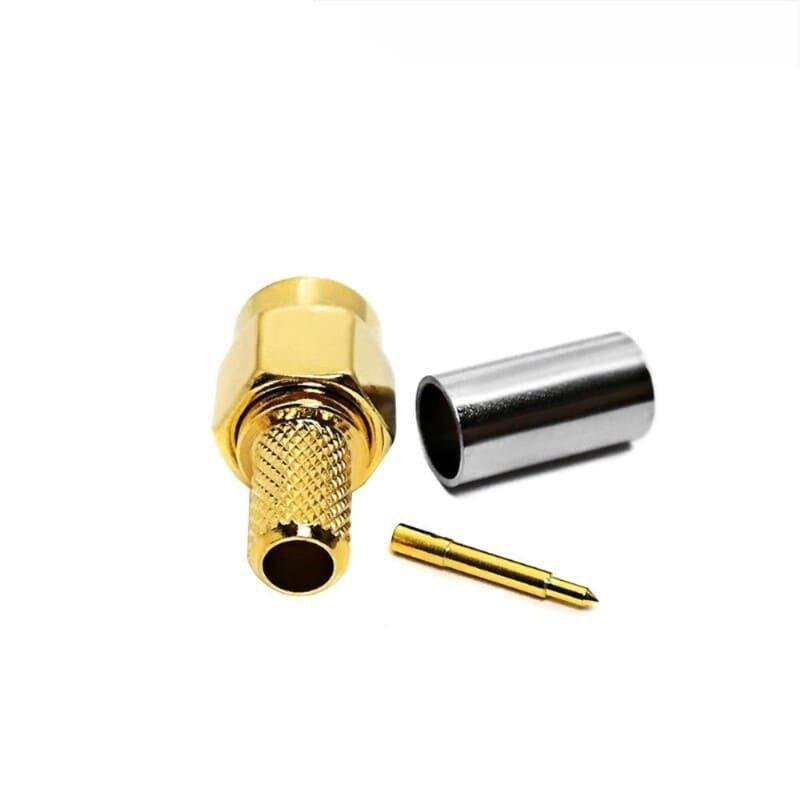

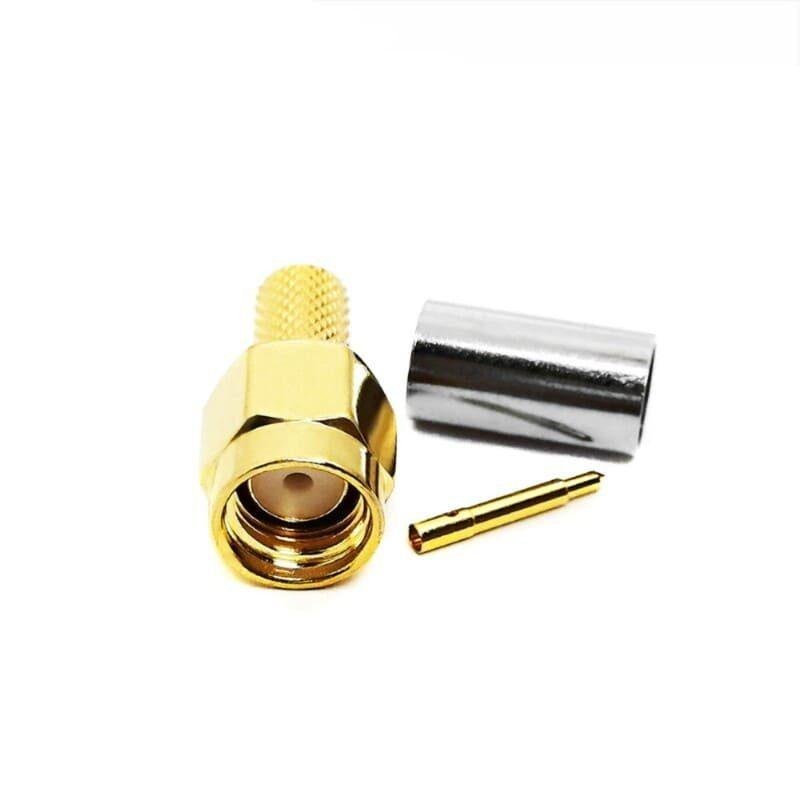

3-Piece Design: Includes the main connector body, the center contact pin, and the outer crimp ferrule for straightforward assembly.
Technical Summary
Parameter Specification Frequency Range DC ~ 6 GHz (Up to 12.4 GHz) Impedance 50 O Body Material Gold-Plated Brass / Stainless Steel Insulator PTFE (Teflon) Termination Style Hex Crimp (Ferrule) Standard Hex Die 6.5 mm (0.255″)
