Description

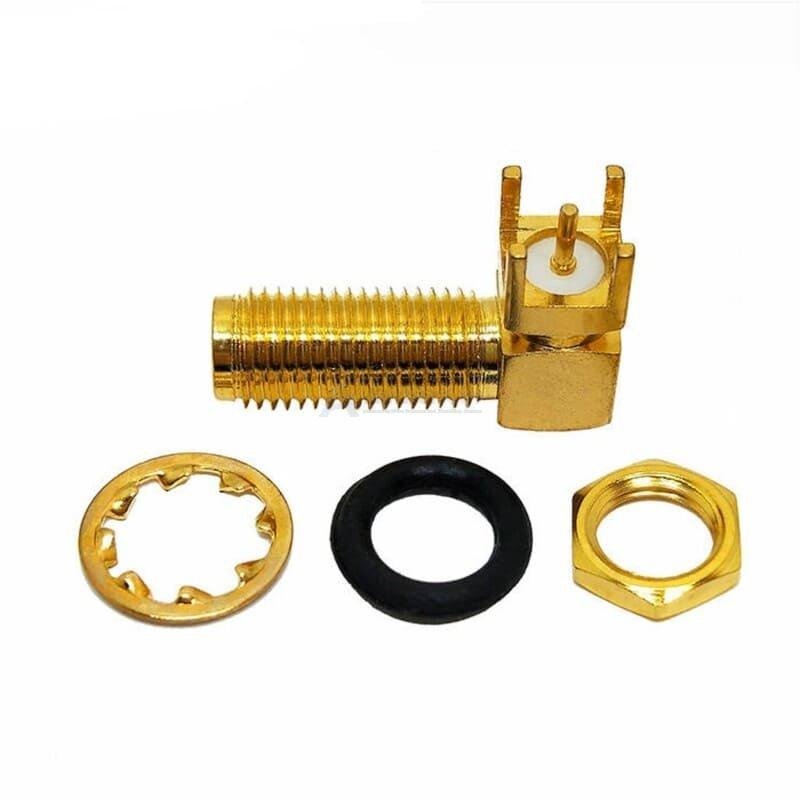

The SMA Female Bulkhead (BH) Solder Connector with Long Thread is specifically engineered for mounting through thick panels, chassis walls, and ruggedized equipment enclosures. Unlike standard bulkhead connectors that struggle with thicker materials, the extended threaded barrel provides ample clearance for secure fastening using the included nut and washer, even on reinforced or insulated panels.
Precision Engineering for Shielded Enclosures
This connector features a high-grade solder-cup termination, allowing for direct, low-resistance internal wiring to PCBs or coaxial pigtails. The bulkhead design includes a “D-flat” or knurled shoulder to prevent rotation during installation, ensuring the connector stays perfectly aligned even when subjected to high-torque antenna adjustments.
Key Technical Advantages:
-
Extended Threaded Barrel: Designed to pass through panels up to 5mm?10mm thick (depending on specific model length), offering maximum installation flexibility.
-
Hermetic-Style Seal Potential: When used with the included O-ring or a gasket, the bulkhead design provides a superior moisture and dust barrier for outdoor RF equipment.
-
Low VSWR Performance: Optimized for the DC to 18 GHz range, ensuring consistent 50 Ohm impedance for everything from GPS and Wi-Fi to high-frequency satellite communication.
-
High-Durability Construction: Machined from premium brass with thick gold plating, this connector resists corrosion and maintains low contact resistance over 500+ mating cycles.
-
Secure Grounding: The bulkhead nut provides a large surface area for excellent electrical grounding to the metal chassis, reducing EMI and noise.
Key Features
-
Connector Gender: SMA Female (Jack) with external threads.
-
Mounting Type: Bulkhead (Rear-mount or Front-mount) with Nut & Washer.
-
Termination: Solder Cup (for easy internal wiring).
-
Extended Reach: Long-thread design for thick-wall enclosures.
-
Impedance: 50 Ohm (Standard RF).
-
Frequency Range: DC to 18 GHz.
Applications:
• Bulkhead Mount RF Panels
• Antenna Systems
• Wireless Communication Devices
• RF Signal Distribution
• Telecom Equipment
• Test & Measurement Instruments
• Enclosure Mount Applications
• Industrial RF Systems
