Description

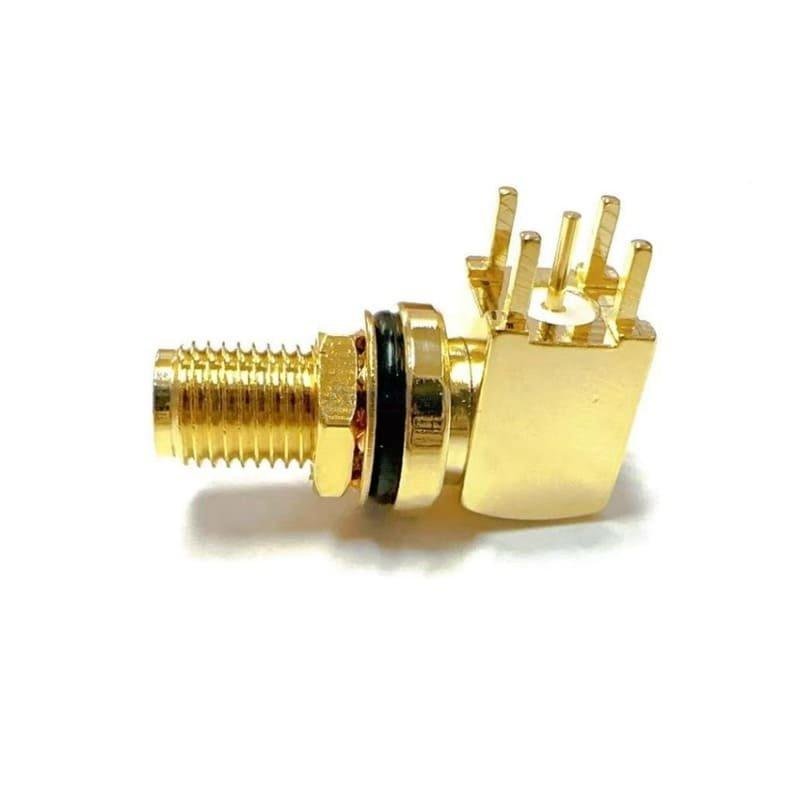

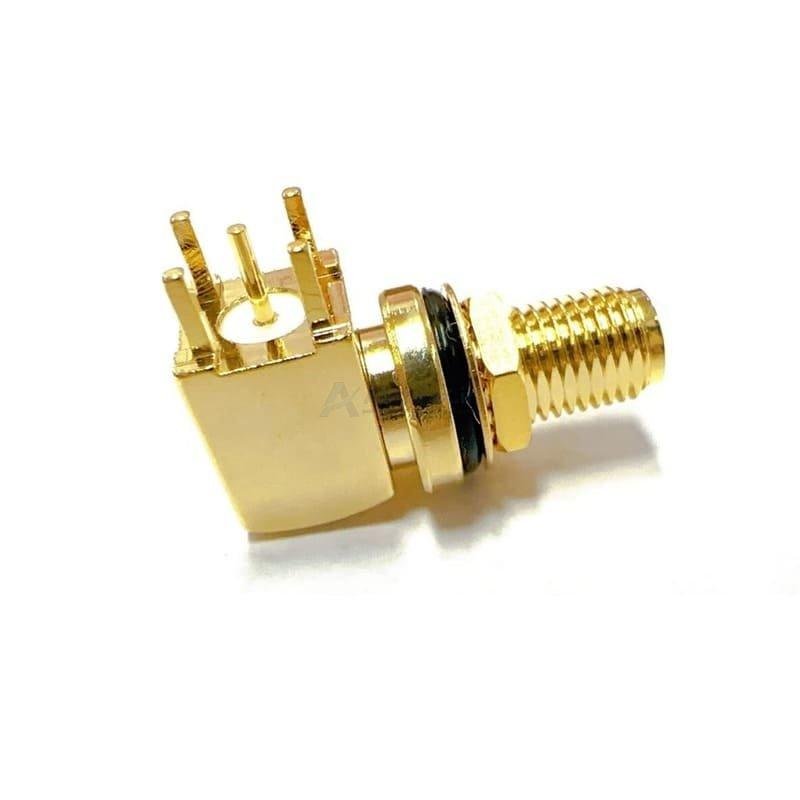

The SMA Female Bulkhead Right-Angle PCB Solder Connector is a dual-purpose RF interface designed for both structural stability and signal integrity. The Bulkhead (BH) design allows the connector to pass through a device enclosure and be secured with a nut and washer, while the Right-Angle (RA) orientation allows the internal PCB to sit perpendicular to the antenna port.
Dual-Support Engineering
This connector is ideal for compact devices where the antenna must be mounted on the side of the housing. By combining a bulkhead mount with PCB solder pins, it offloads the mechanical stress of the antenna from the solder joints to the chassis itself. This “double-anchor” system ensures that the connector won’t snap off the board even under heavy external pressure or frequent antenna rotations.
Key Technical Advantages:
-
90° Space Optimization: Perfect for low-profile or slim-line enclosures where a straight connector would protrude too far into the internal circuitry.
-
Bulkhead Chassis Grounding: The threaded barrel provides a direct electrical connection to the metal enclosure, significantly improving EMI shielding and reducing noise.
-
High-Strength PCB Mounting: Features a 4-leg or 2-leg ground post design for a rock-solid mechanical bond to the printed circuit board.
-
Low VSWR & High Frequency: Optimized for the DC to 6 GHz (and up to 12 GHz depending on grade) spectrum, supporting Wi-Fi, GPS, LTE, and IoT applications.
-
Corrosion Resistance: Premium gold plating over high-grade brass ensures a long lifecycle and consistent 50 Ohm impedance matching.
Key Features
-
Connector Type: SMA Female (Jack) with external bulkhead threads.
-
Orientation: Right-Angle (90-degree) for side-panel mounting.
-
Mounting Method: PCB Solder (Through-hole) + Bulkhead Nut/Washer.
-
Secure Attachment: Includes a hex nut and lock washer for panel fastening.
-
Impedance: 50 Ohm (Standard for professional RF).
-
Durability: Rated for 500+ mating cycles.
Applications:
• Bulkhead Mount PCB RF Circuits
• Right Angle PCB Applications
• Wireless Communication Devices
• Antenna Systems
• WiFi & RF Modules
• Test & Measurement Equipment
• Telecom Equipment
• Embedded RF Systems
