SMA M CRIMP for RG58/RG142/LMR195/LMR200 Cable

Description

The SMA Male Crimp Connector is a professional RF component designed for high-reliability signal transmission in both commercial and industrial environments. This connector is specifically sized for mid-range flexible cables with an outer diameter of approximately 0.195″ to 0.200″. It provides a secure, low-loss interface compatible with standard SMA female jacks found on modern communication equipment.

The termination process utilizes a hex-crimp method for the outer ferrule, which creates a permanent, 360-degree mechanical bond between the cable braid and the connector body. This ensures high pull-strength and superior electrical grounding. Constructed with a gold-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR across frequencies up to 12.4 GHz, making it ideal for high-frequency jumpers and pigtail assemblies.

Key Technical Advantages

• Universal RF Compatibility: The primary interface for 4G LTE, 5G, GPS, and standard RF test equipment.

• Broad Cable Support: A single connector design that accommodates multiple popular cables including LMR200 and RG58, reducing inventory complexity.

• High-Strength Crimp Bond: The hex-crimp ferrule provides a vibration-proof attachment that outperforms twist-on or solder-only outer terminations.

• Effective EMI/RFI Shielding: The 360-degree ferrule crimp ensures a continuous ground path, offering excellent protection against signal interference.

• Maximum Conductivity: High-purity gold plating on the center pin and body minimizes signal loss and prevents environmental corrosion over time.

Key Features

• Standard SMA Male Interface: Features internal threads and a protruding gold-plated center pin.

• Premium PTFE Insulator: High-grade dielectric ensures thermal stability during assembly and low signal attenuation.

• Standard 1/4-36 Thread: Fully compatible with all standard SMA Female (Jack) connectors and bulkhead adapters.

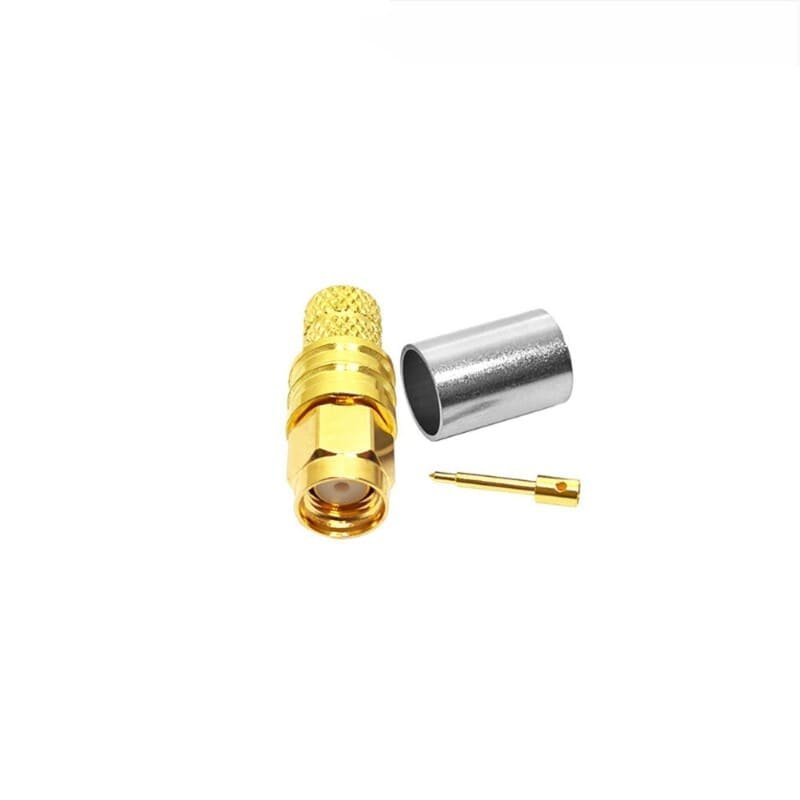

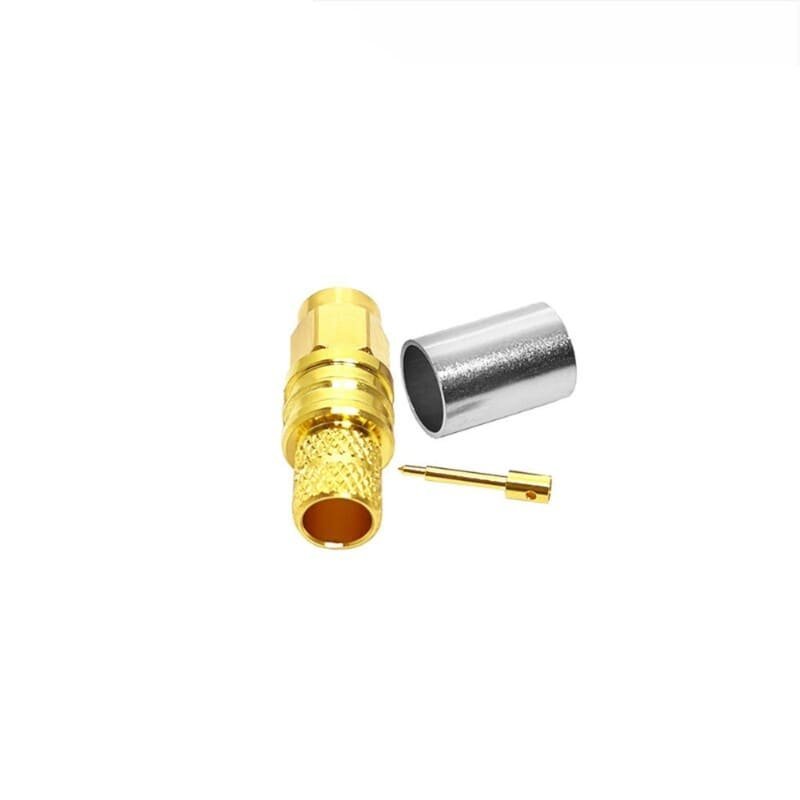

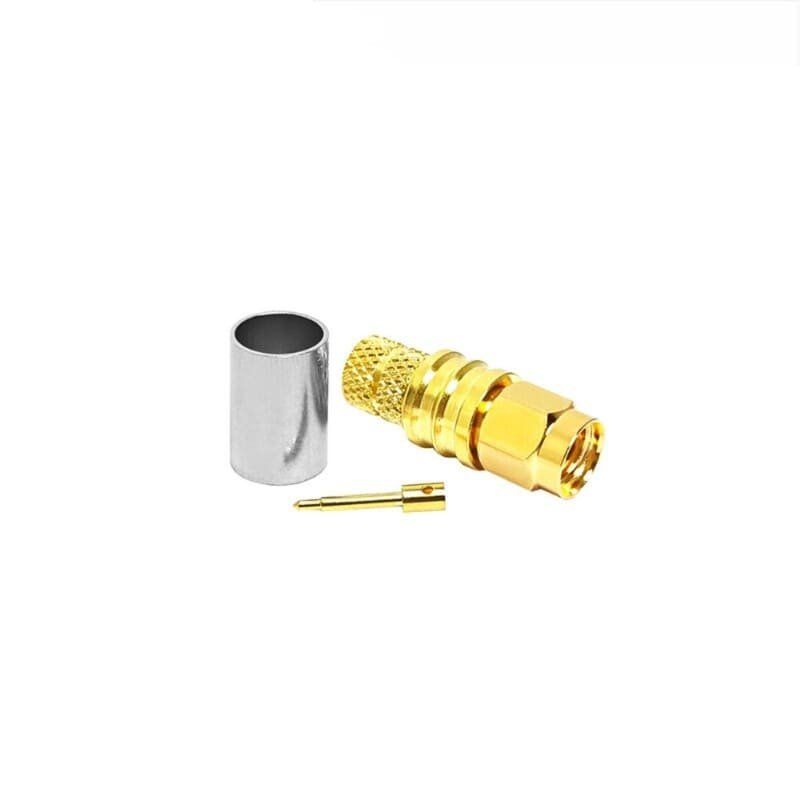

• 3-Piece Assembly: Includes the main connector body, the center contact pin, and the outer crimp ferrule for efficient installation.

• Mechanical Reliability: Designed to withstand at least 500 mating cycles while maintaining stable electrical performance.

🔹 Applications:

• Straight Cable Termination for RG58 / RG142 / LMR195 / LMR200
• RF Coaxial Cable Assemblies
• WiFi Antenna & Router Connections
• Wireless Communication Systems
• IoT & Embedded RF Modules
• Telecom Equipment Installations
• RF Signal Transmission Systems
• RF Test & Measurement Equipment
• WLAN Network Devices
