Description

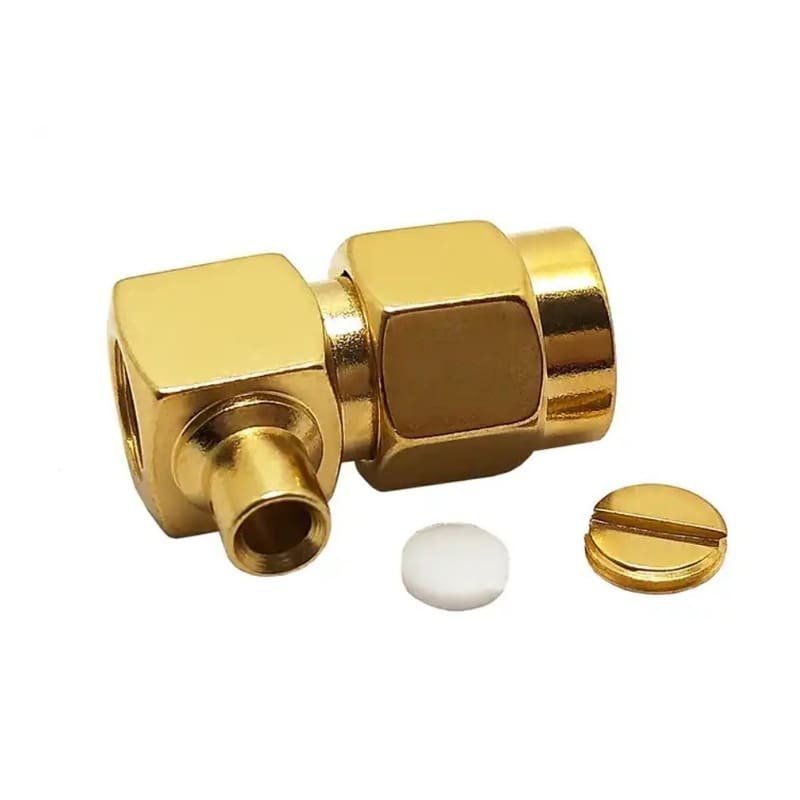

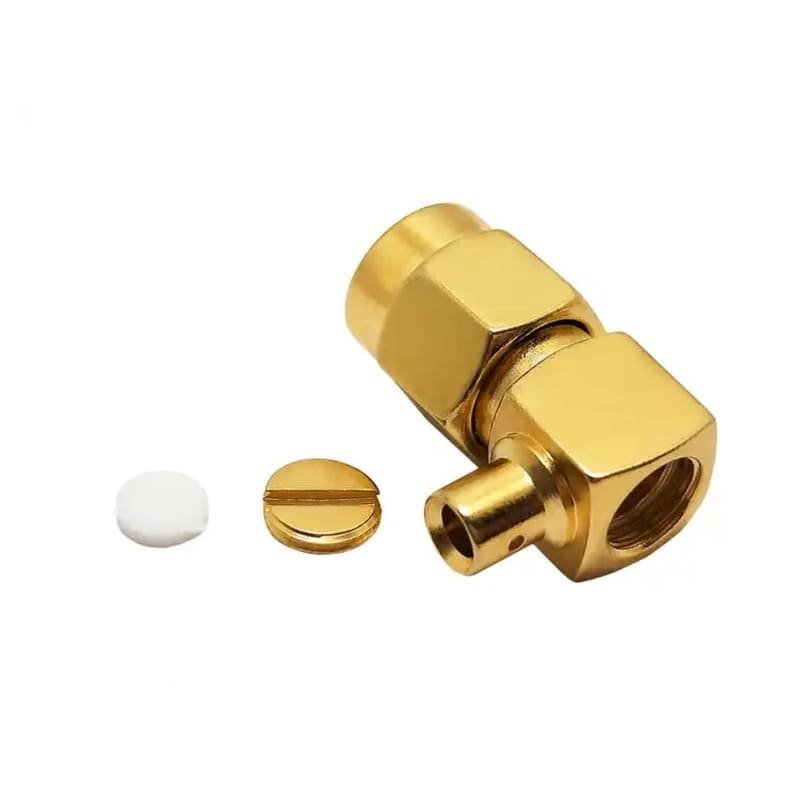

The SMA Male Right-Angle Solder Connector for RG.086 is a professional-grade RF component designed for applications where space is critically limited and signal integrity is paramount. Because RG.086 (often referred to as SS405 or RG405) features a solid or braided silver-plated copper outer conductor, this connector utilizes a direct-solder body attachment.
The cable is soldered 360 degrees to the connector body, creating a seamless, gas-tight mechanical and electrical bond. The Right-Angle (90°) geometry allows for tight cable routing inside shielded enclosures without exceeding the minimum bend radius of the semi-rigid cable, which could otherwise cause signal reflections. This termination method ensures the highest possible EMI/RFI shielding and maintains an ultra-low VSWR across frequencies reaching up to 18 GHz.
Key Technical Advantages
-
Compact 90° Profile: Facilitates high-density packaging in RF modules and prevents mechanical stress on the cable.
-
Direct-Solder Body Mount: Provides the most stable mechanical connection and superior electrical grounding compared to crimp or clamp styles.
-
Maximum RF Shielding: The soldered transition ensures virtually zero signal leakage, essential for sensitive receiver or high-power transmitter paths.
-
Low VSWR & Insertion Loss: Precision-machined to maintain a strict 50 Ohm impedance, optimized for high-frequency microwave performance.
-
Broad Temperature Stability: The use of Teflon (PTFE) insulation ensures consistent dielectric properties even during the high-heat soldering process.
Key Features
-
Direct-Solder Termination: Optimized specifically for .086″ diameter semi-rigid and hand-formable cables.
-
Gold-Plated Brass/Stainless Steel Body: Offers maximum conductivity and exceptional resistance to corrosion and oxidation.
-
Standard 1/4-36 Threaded Nut: Ensures a secure, vibration-proof mating with any standard SMA female (jack) interface.
-
Gold-Plated Center Pin: Provides a low-resistance contact point for precise high-speed signal transmission.
-
High Frequency Rating: Reliably supports microwave applications from DC up to 18 GHz.
Applications:
• Right Angle RG .86 Cable Termination
• Compact RF Cable Assemblies
• Microwave Communication Systems
• Antenna Cable Connections
• RF Test & Measurement Equipment
• Aerospace & Defense Applications
• Wireless Communication Systems
• RF Signal Routing in Tight Spaces
