Description

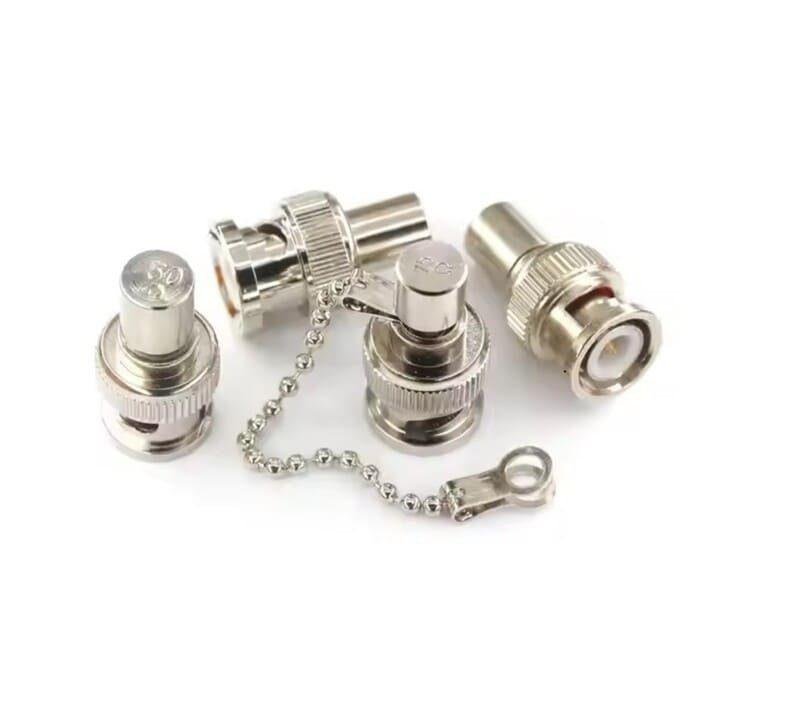

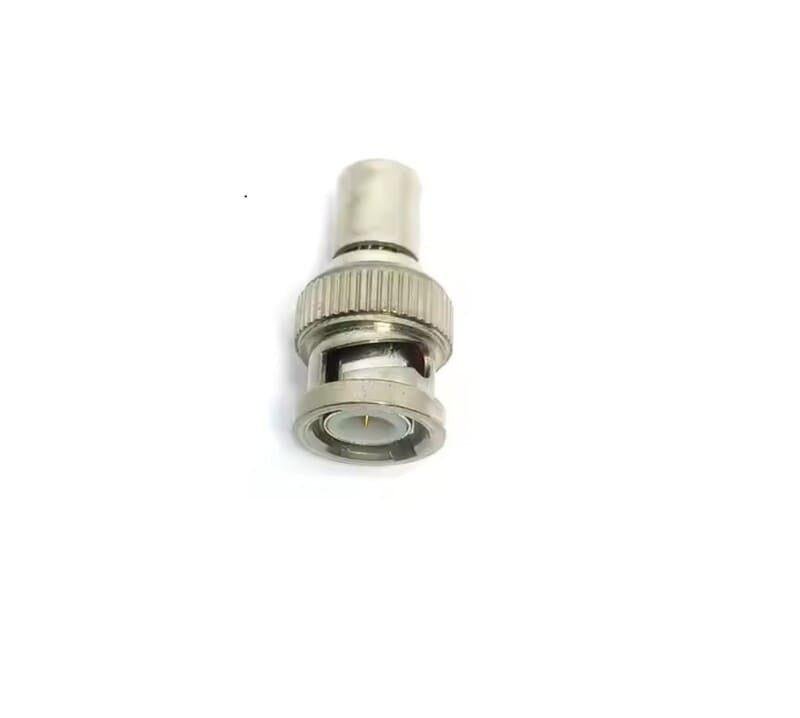

The 2W BNC dummy load is a step up from standard 1W models, offering increased thermal overhead for continuous-duty applications. It features a precision-ground 50 Ohm resistive element protected by a durable housing that efficiently dissipates heat. The PTFE (Teflon) dielectric ensures excellent electrical insulation and consistency across the DC to 3 GHz spectrum, while the gold-plated center contacts provide superior conductivity and resistance to oxidation.
Designed for ease of use, the bayonet-style coupling allows for rapid and secure attachment to any standard BNC female port. It is an essential tool for terminating unused ports on power splitters, directional couplers, and test manifolds, effectively eliminating “ghosting” and standing wave interference in high-density RF environments.
Key Technical Advantages
-
Higher Power Overhead: Rated for 2 Watts continuous power, offering a safety margin for signal-level testing where 1W units might overheat.
-
Stable Impedance Matching: Delivers a consistent 50 Ohm load to minimize reflected power, protecting the output stages of amplifiers and signal generators.
-
Industrial Durability: Features a robust nickel-plated finish that resists corrosion and is rated for hundreds of mating cycles in field or lab conditions.
-
Broadband Performance: Optimized for the 3 GHz range, making it highly effective for modern telecommunications infrastructure and broadcast systems.
-
Superior RF Shielding: The solid metallic construction ensures a high level of shielding effectiveness, preventing signal leakage into nearby sensitive equipment.
Key Features
-
Impedance: 50 Ohm (±1 Ohm).
-
Power Rating: 2 Watts (Continuous).
-
Frequency Range: DC to 3 GHz.
-
Connector Type: BNC Male (Plug).
-
Body Material: Nickel-Plated Brass.
-
Applications: RF System Testing, Port Termination, and Signal Attenuation.
🔹 Applications:
- RF signal termination in BNC systems
- Test and measurement equipment
- Broadcast and video transmission systems
- RF signal routing and balancing
- Lab calibration setups
- Communication devices
