Description

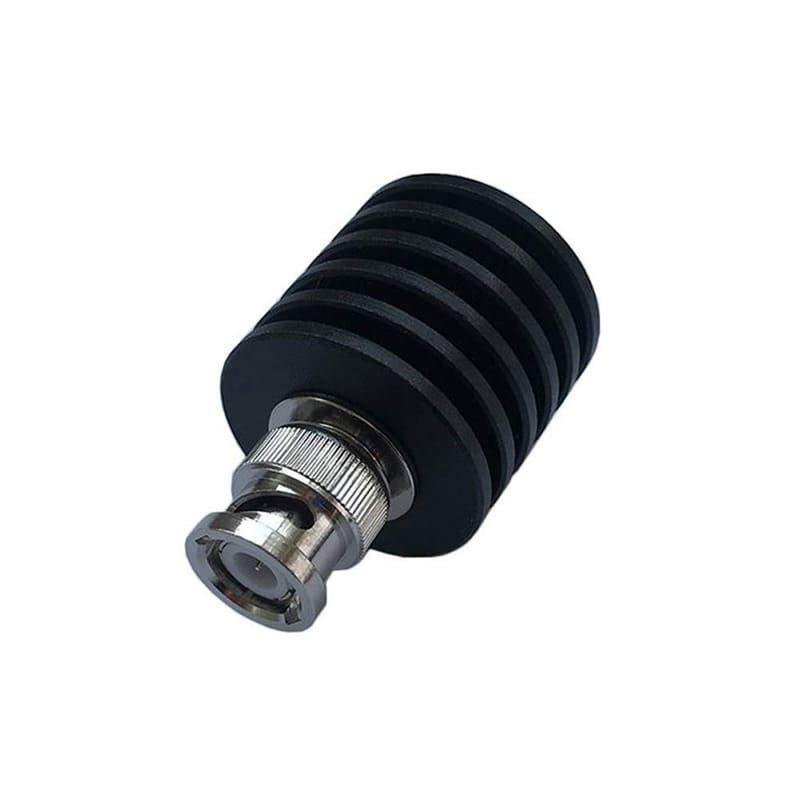

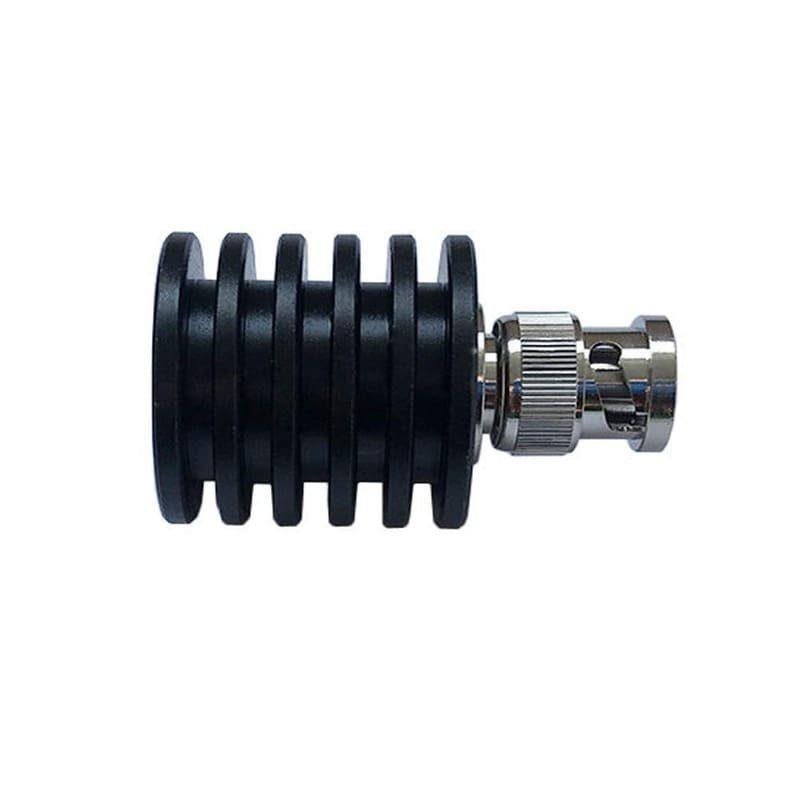

The 6W BNC dummy load is engineered for environments that exceed the thermal limits of standard 2W or 5W terminators. The enlarged body acts as a dedicated heat sink, utilizing high-grade aluminum or brass to effectively radiate thermal energy away from the internal precision resistor. It uses a PTFE (Teflon) dielectric to ensure electrical insulation and consistent performance across the DC to 3 GHz spectrum.
The BNC Male interface features the classic bayonet-style coupling for quick, secure locking, with gold-plated center contacts to ensure low contact resistance over hundreds of mating cycles. This component is a critical safety and performance tool for terminating high-power ports on combiners, directional couplers, and distribution amplifiers, ensuring a balanced system free from standing waves.
Key Technical Advantages
-
High Thermal Capacity: Specifically rated for 6 Watts of continuous RF power, providing a robust safety margin for high-output transmission lines.
-
Precision Reflection Control: Delivers a stable 50 Ohm match, significantly reducing reflected power to protect sensitive output stages in transmitters.
-
Durable Industrial Build: The ruggedized housing is resistant to corrosion and mechanical wear, suitable for both benchtop and harsh field environments.
-
Wideband Compatibility: Optimized for 3 GHz, making it an essential component for 4G/LTE, public safety, and industrial RF infrastructure.
-
Elite Shielding Effectiveness: Solid metal construction prevents signal leakage and protects nearby equipment from electromagnetic interference (EMI).
Key Features
-
Impedance: 50 Ohm (±1 Ohm).
-
Power Rating: 6 Watts (Continuous @ 25°C).
-
Frequency Range: DC to 3 GHz.
-
Connector Type: BNC Male (Plug).
-
Thermal Management: Integrated heat-dissipating housing.
- Applications: High-Power System Testing, Port Termination, and Signal Protection.
🔹 Applications:
- Medium power RF termination
- Broadcast and communication systems
- RF testing environments
- Antenna port load balancing
- Signal conditioning
- Lab and instrumentation
