Description

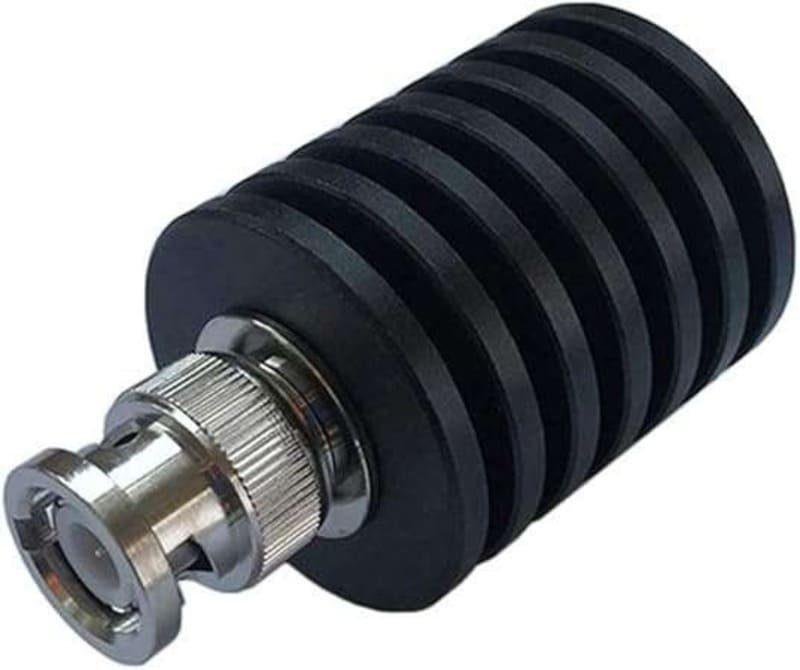

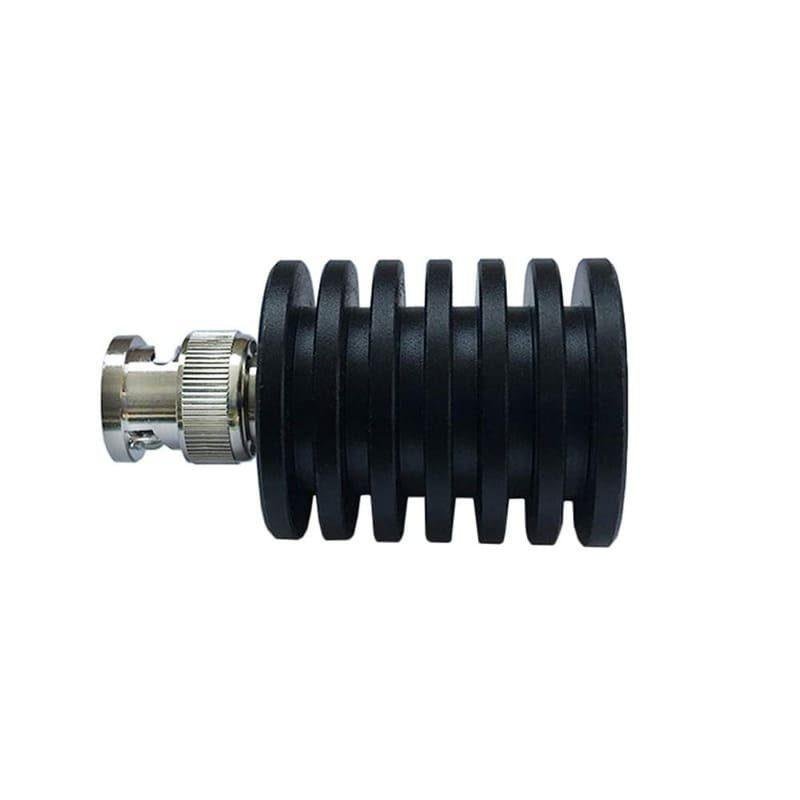

The 15W BNC dummy load is a robust solution for environments where standard low-power terminators would fail. Its physical design is dominated by large aluminum cooling fins that maximize surface area for rapid thermal radiation. Internally, it utilizes a high-performance 50 Ohm resistor and PTFE (Teflon) dielectric to maintain electrical consistency and prevent signal “ghosting” or interference.
The BNC Male interface uses a standard bayonet-style coupling for a secure, vibration-resistant lock. With gold-plated center contacts, it ensures minimal contact resistance and maximum signal integrity over hundreds of mating cycles. This component is typically used to terminate high-output ports on power combiners, amplifiers, and base station equipment, ensuring the system remains balanced and safe from high standing waves.
Key Technical Advantages
-
High-Wattage Thermal Management: Specifically rated for 15 Watts, allowing it to safely absorb substantial RF power without thermal drift or component degradation.
-
Precise Impedance Matching: Maintains a consistent 50 Ohm match to keep reflected power at a minimum, shielding the output stages of expensive RF hardware.
-
Heavy-Duty Construction: Built with a rugged, anodized aluminum heat sink and nickel-plated brass connectors for long-term durability in harsh environments.
-
Broadband Performance: Fully optimized for the DC to 3 GHz spectrum, making it compatible with various VHF, UHF, and 4G/LTE cellular bands.
-
Effective EMI Shielding: The solid metal housing ensures that “leaked” energy is contained, preventing electromagnetic interference with nearby sensitive electronics.
Key Features
-
Impedance: 50 Ohm (±1 Ohm).
-
Power Rating: 15 Watts (Continuous @ 25°C).
-
Frequency Range: DC to 3 GHz.
-
Connector Type: BNC Male (Plug).
-
Cooling: Integrated Aluminum Fin Heat Sink.
-
Applications: Base Station Testing, High-Power Signal Attenuation, and Port Isolation.
🔹 Applications:
- High-power RF signal termination
- Broadcast and RF transmission systems
- RF testing and calibration labs
- Antenna load simulation
- Communication infrastructure
- Industrial RF systems
