Description

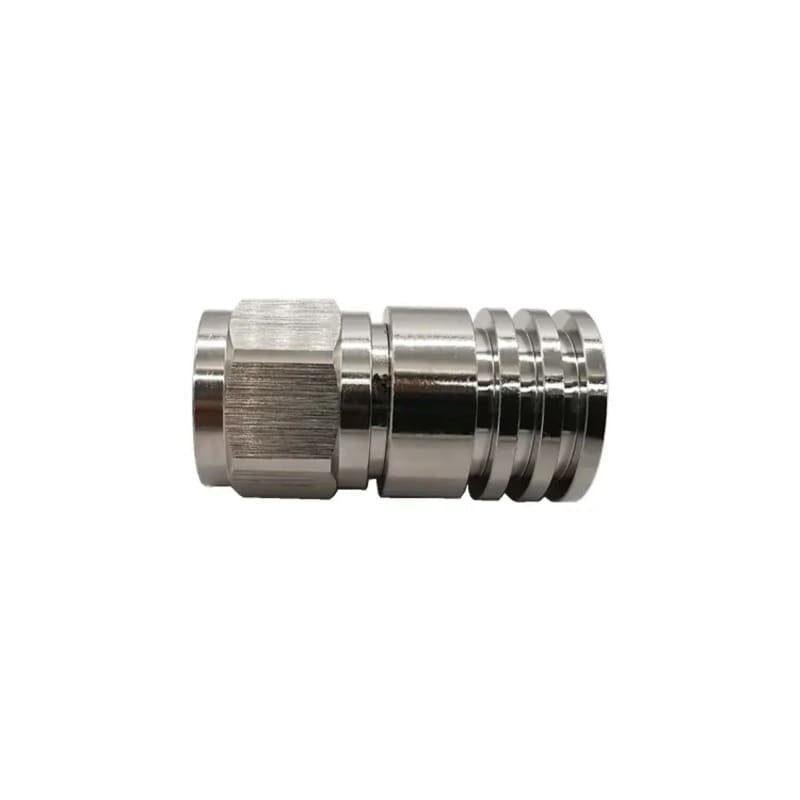

The 5W N-type dummy load is designed for continuous-duty applications where standard low-power terminators would exceed their thermal limits. It utilizes a precision-ground 50 Ohm resistive element and PTFE (Teflon) dielectric to ensure electrical consistency across the entire DC to 3 GHz spectrum. The enlarged housing acts as a heat sink, efficiently radiating thermal energy to prevent impedance drift.

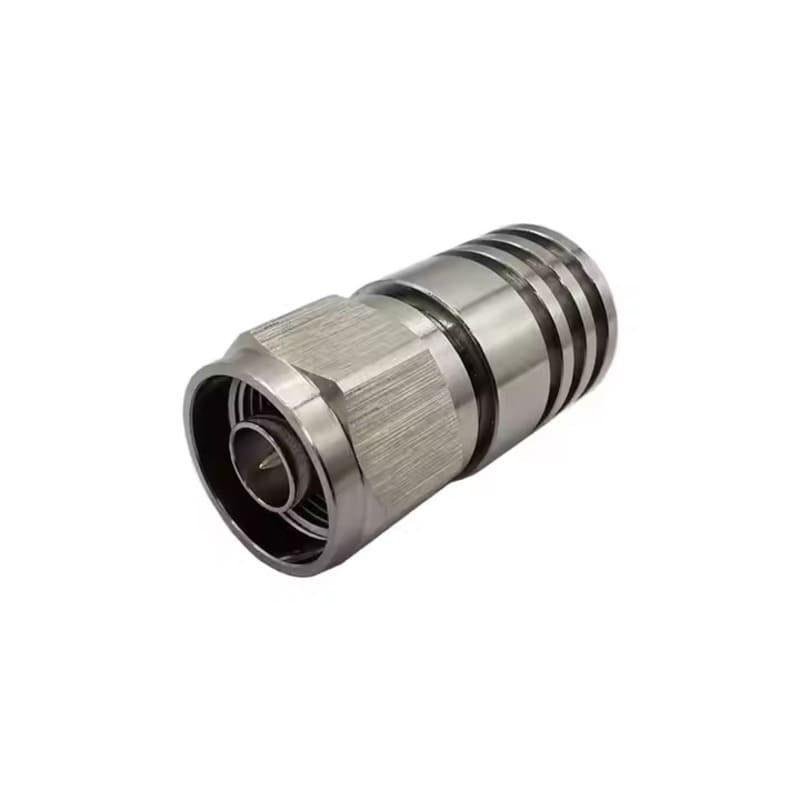

The N-type Male interface provides a secure, threaded connection that is highly resistant to vibration and environmental factors. With gold-plated center contacts, it ensures low contact resistance and maximum signal integrity over hundreds of mating cycles. It is the industry standard for terminating unused ports on power combiners, high-power splitters, and amplifiers, ensuring that the system remains balanced and protected from reflected power.
Key Technical Advantages
-
Enhanced Power Handling: Rated for 5 Watts of continuous RF power, providing a robust safety margin for active equipment testing and signal management.
-
Superior Reflection Loss: Maintains a low VSWR, effectively shielding the output stages of transmitters from standing waves and energy bounce-back.
-
Ruggedized Construction: The threaded N-type interface offers high mechanical durability, making it suitable for both benchtop use and harsh outdoor environments.
-
Broadband Versatility: Optimized for the 3 GHz range, supporting 4G/LTE, public safety, and industrial wireless frequency bands.
-
Weatherproof Design: When properly torqued, the threaded design and internal gaskets provide excellent protection against moisture and environmental ingress.
Key Features
-
Impedance: 50 Ohm (±1 Ohm).
-
Power Rating: 5 Watts (Continuous @ 25°C).
-
Frequency Range: DC to 3 GHz.
-
Connector Type: N Type Male (Plug).
-
Thermal Management: Integrated heat-dissipating body.
-
Applications: Cellular Infrastructure, High-Power Test Isolation, and DAS Deployment.
🔹 Applications:
- Medium power RF termination
- Telecom infrastructure testing
- Antenna systems
- RF signal conditioning
- Wireless communication networks
- RF measurement setups
