2 W N M DUMMY LOAD 3GHZ

Description

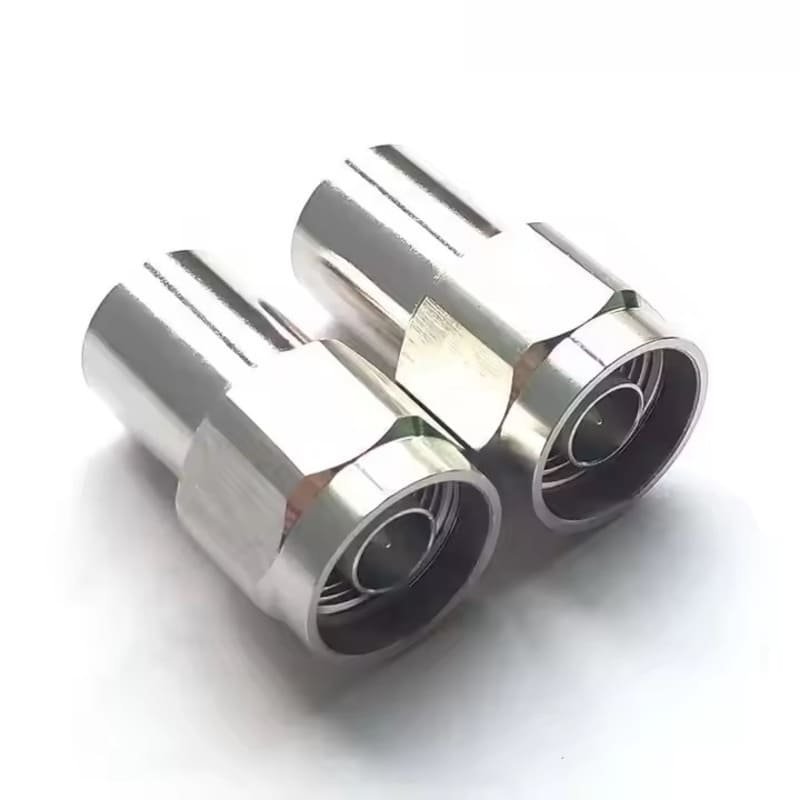

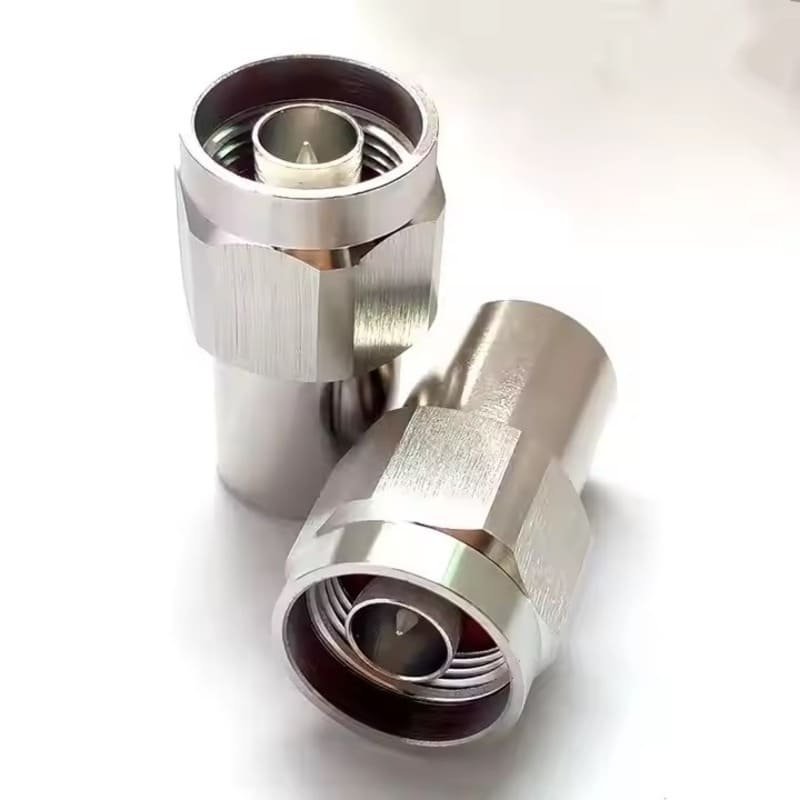

The 2W N-type dummy load is engineered to provide a reliable 50 Ohm termination for diagnostic and permanent installations. It features a high-stability internal resistive element and PTFE (Teflon) dielectric to maintain electrical integrity across the DC to 3 GHz spectrum. Its threaded coupling provides a secure, weatherproof connection that is more physically robust than bayonet or push-on styles.

By absorbing unused RF energy, this terminator protects power splitters, directional couplers, and amplifiers from reflected power that can cause transmitter damage or signal distortion. Its durable construction is rated for high-mating cycles and is frequently used in IBS (In-Building Solutions) to close out unused ports on distributed antenna systems (DAS).

Key Technical Advantages

• Rugged Interface: The N-type connector offers significant mechanical strength, making it suitable for heavy-duty cables and high-vibration environments.

• Superior Reflection Loss: Maintains a low VSWR, effectively shielding sensitive output stages from standing waves and energy bounce-back.

• Weatherproof Potential: Due to its threaded design and internal gaskets, it is highly suitable for outdoor use when properly torqued.

• Conductivity & Durability: Features gold-plated center contacts for low contact resistance and a non-corrosive body plating for long-term field exposure.

• Consistent 50Ω Load: Ensures the system remains balanced even when specific sectors or ports are not in active use.

Key Features

• Impedance: 50 Ohm (±1 Ohm).

• Power Rating: 2 Watts (Continuous).

• Frequency Range: DC to 3 GHz.

• Connector Type: N Type Male (Plug).

• Body Material: Nickel-Plated Brass or Tri-Alloy.

• Applications: Cellular Infrastructure, Test Bench Isolation, and DAS Deployment.
