Description

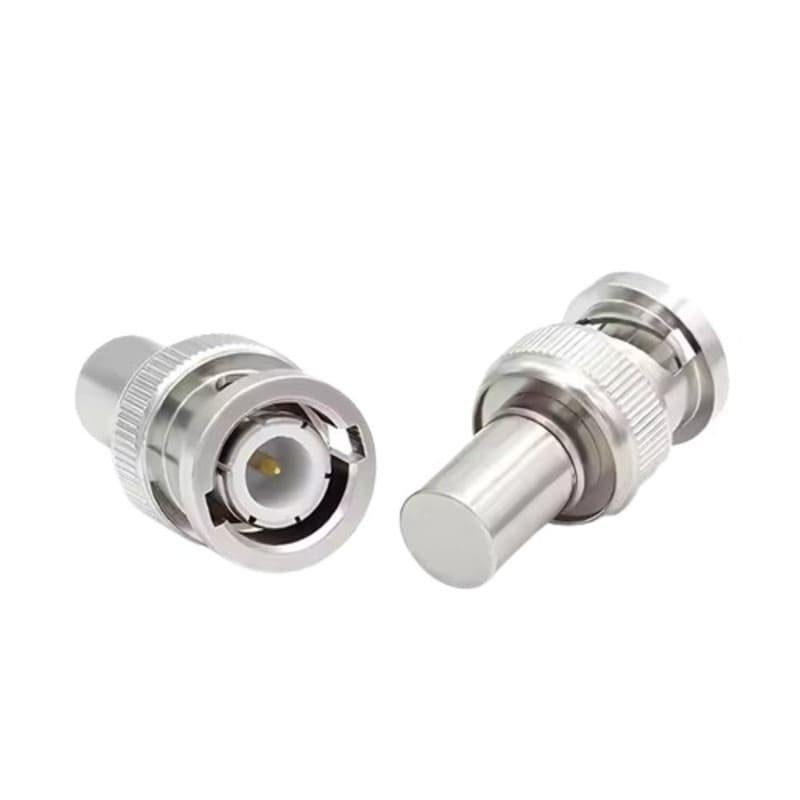

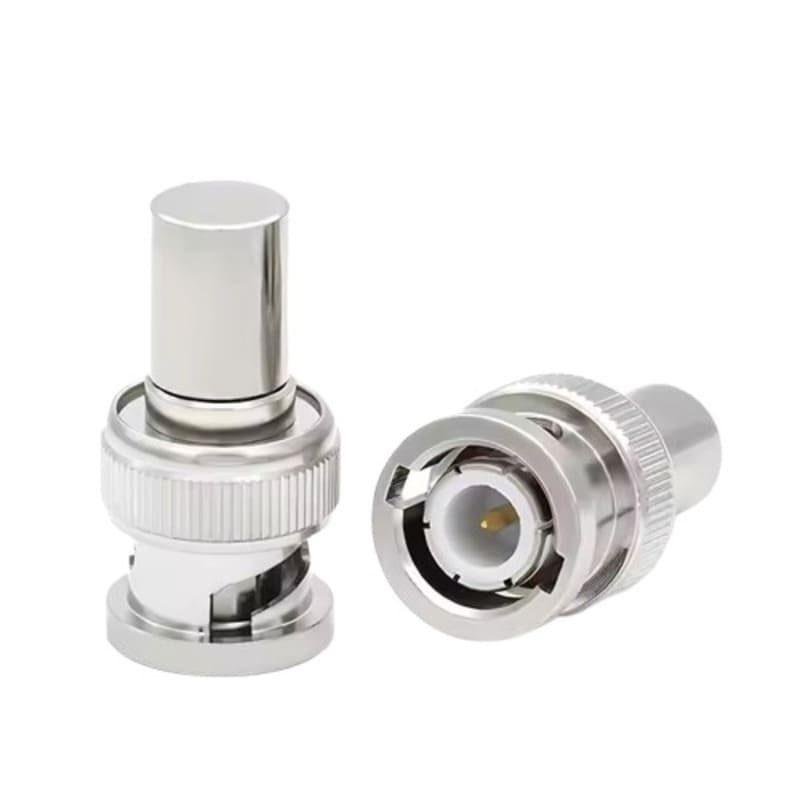

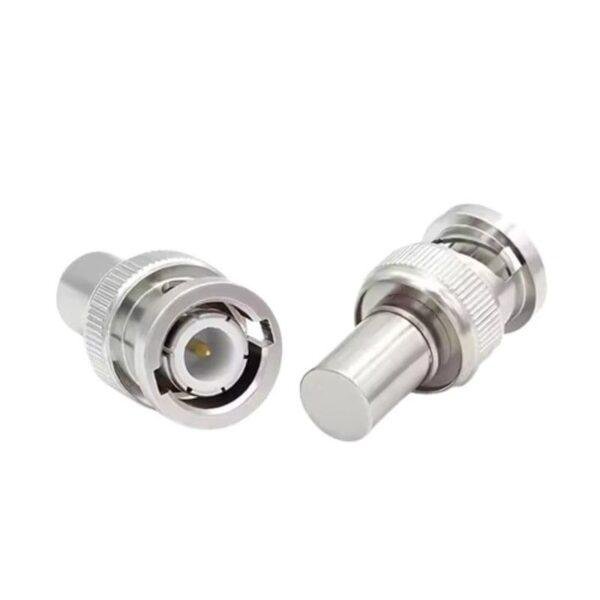

The 1W BNC dummy load is the industry standard for terminating unused ports on oscilloscopes, signal generators, and antenna distribution systems. Unlike standard connectors, it utilizes a high-quality internal resistive element and PTFE (Teflon) dielectric to ensure electrical stability and low insertion loss across its full operating range. The bayonet-style BNC coupling mechanism allows for quick, secure connection and disconnection without the need for specialized tools.
Constructed for longevity, the housing is designed to manage the thermal dissipation of 1 Watt continuous power. It is frequently employed in IBS (In-Building Solutions) and BTS (Base Transceiver Station) applications where signal integrity is critical. Its robust design ensures a stable cylindrical radiation zone is not required, as it is designed to contain and absorb the energy entirely.
Key Technical Advantages
-
Minimized Signal Reflection: Maintains a low VSWR (≤ 1.2), which is critical for protecting the output stages of transmitters and maintaining measurement accuracy.
-
Broadband Versatility: Optimized for performance from DC to 3 GHz, supporting various cellular bands including 3G, 4G, and LTE.
-
High-Quality Materials: Features gold-plated center pins for superior conductivity and tri-alloy or nickel plating on the body for enhanced corrosion resistance.
-
Temperature Resilience: Rated to operate effectively in extreme environments, typically ranging from -55°C to +80°C.
-
Reliable Port Isolation: Prevents environmental noise or EMI from entering open ports on sensitive receivers and test equipment.
Key Features
-
Impedance: 50 Ohm (Standard).
-
Power Rating: 1 Watt (Continuous).
-
Frequency Range: DC to 3 GHz.
-
Connector Type: BNC Male (Plug).
-
Body Material: Nickel-Plated Brass.
-
Applications: RF Testing, Calibration, Training, and System Maintenance.
🔹 Applications:
- RF termination in BNC-based systems
- CCTV and video signal testing
- Lab and instrumentation setups
- RF signal matching and balancing
- Communication system testing
- Low-power RF circuits
