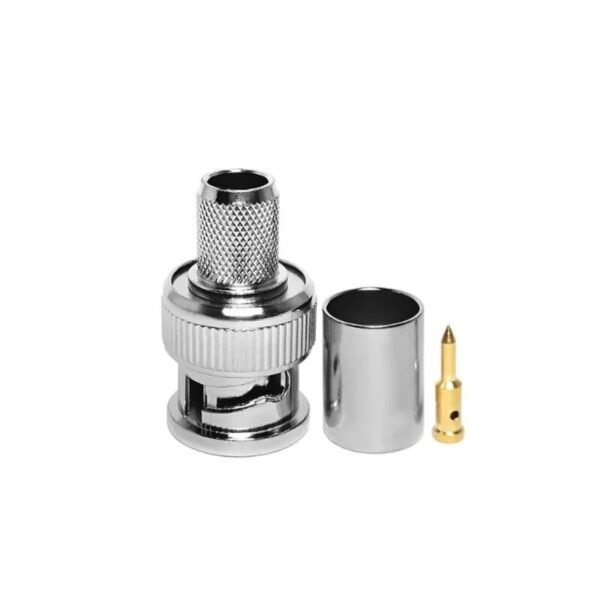

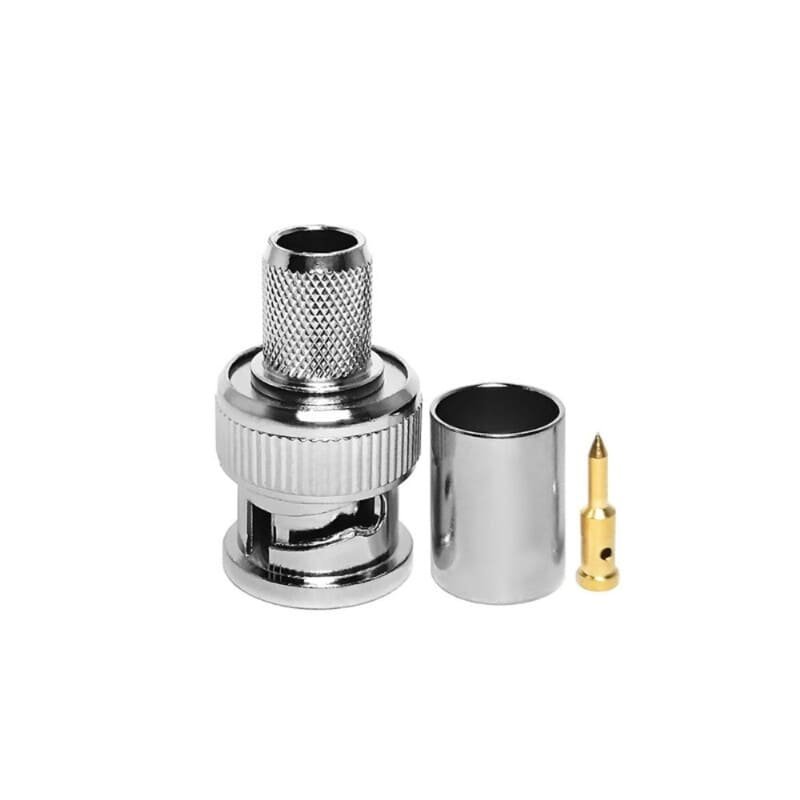

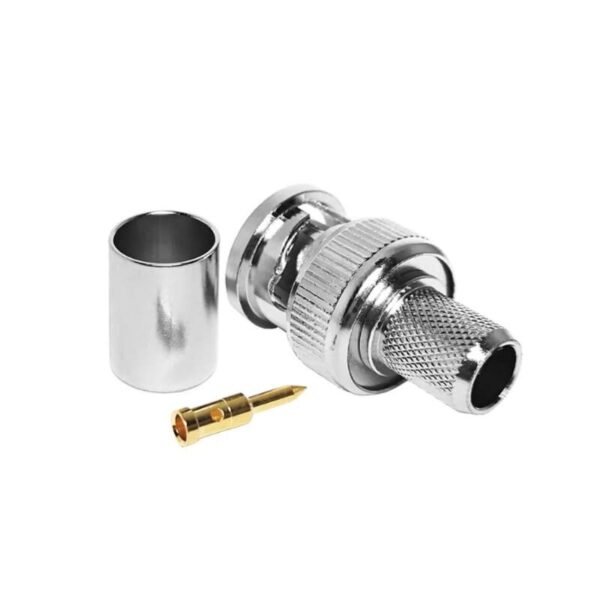

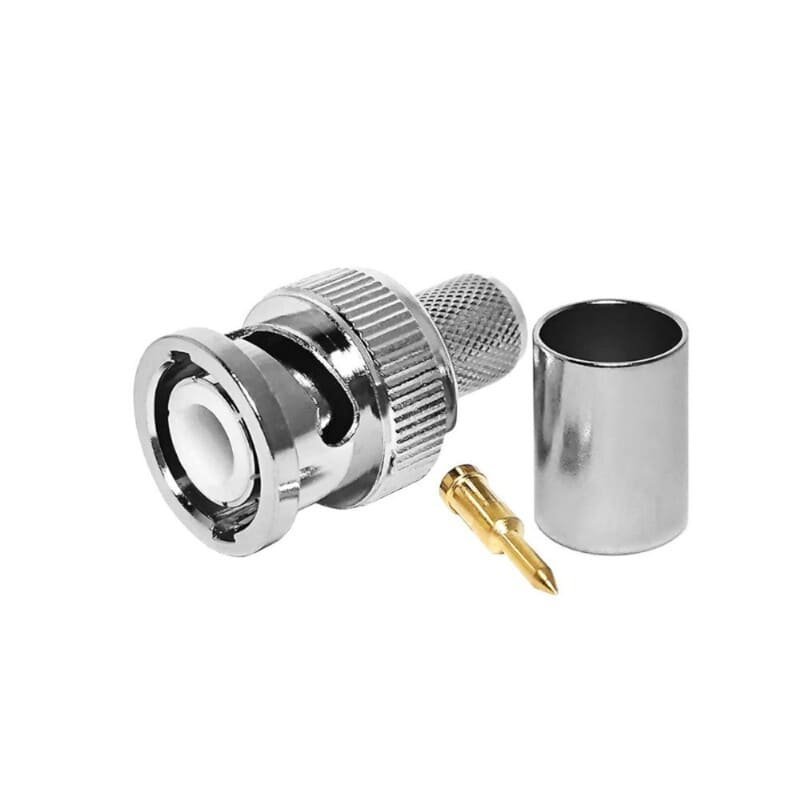

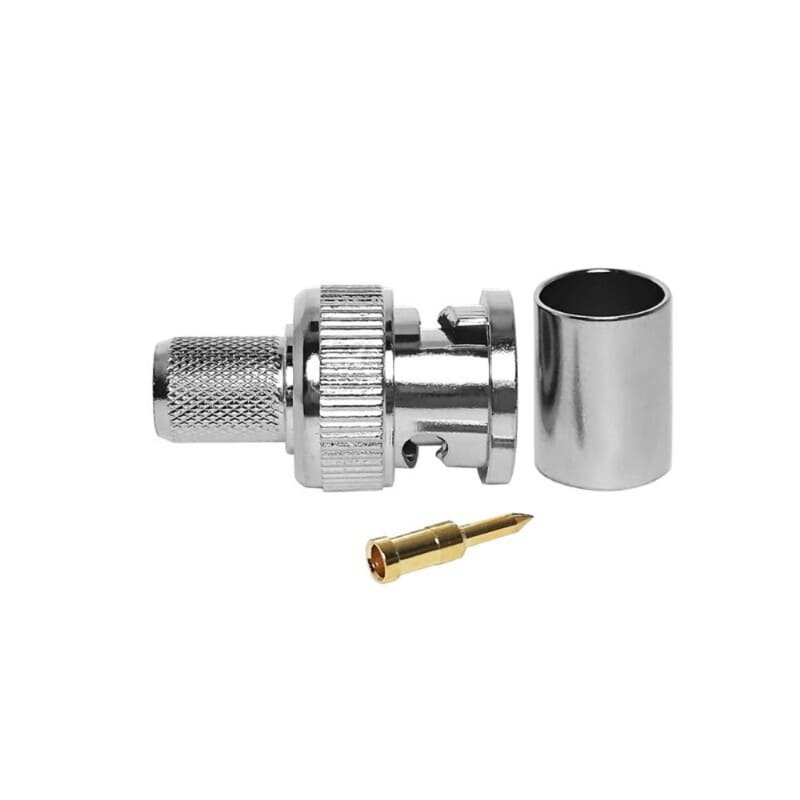

BNC M CRIMP for RG6/SM250 SUCO Flex Cable

Description

The BNC male crimp connector is a foundational RF component valued for its rapid bayonet coupling and robust mechanical interface. This variant is specialized for the 7mm to 8mm cable class, specifically optimized for standard RG6, precision SM250, and high-performance SUCOFLEX (e.g., SUCOFLEX 104) cable types. While standard BNCs are common, this specialized version accommodates the unique dimensions and shielding requirements of high-frequency flexible lines and low-loss distribution cables.

As a male interface (plug), it features the classic two-stud bayonet locking system for rapid, vibration-resistant mating with BNC jacks. This connector utilizes a hex-crimp termination system for the outer conductor, providing a high-strength 360-degree mechanical bond and superior strain relief. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent impedance matching and reliable signal integrity, making it ideal for both high-end broadcast video and microwave-frequency testing environments.

Key Technical Advantages

• Efficient Crimp Termination: The hex-crimp design allows for rapid, repeatable assembly, making it ideal for high-volume production, cabling workshops, and field-installed infrastructure.

• Precision Cable Match: Specifically calibrated for the outer diameters associated with RG6 and SM250, ensuring a precise mechanical fit and optimized electrical transition for low-loss coaxial lines.

• Secure Bayonet Coupling: Features the industry-standard bayonet locking mechanism for tool-less mating that remains mechanically stable under vibration and constant movement.

• High Mechanical Stability: The crimp sleeve provides superior pull-off resistance and robust strain relief, essential for maintaining electrical contact in dynamic environments.

• Superior Corrosion Resistance: Features a precision-machined nickel-plated body and gold-plated center contact to ensure low contact resistance and long-term protection against oxidation.

Key Features

• Interface Type: BNC Male (Plug) with standard bayonet coupling.

• Termination Method: Crimp (Outer Braid) / Solder or Crimp (Center Pin).

• Cable Compatibility: Optimized for RG6, SM250, SUCOFLEX 104, and equivalent 50/75-Ohm coaxial cables.

• Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.

• Common Application: Digital video distribution, microwave frequency test leads, wireless base stations, and high-performance RF jumpers.
