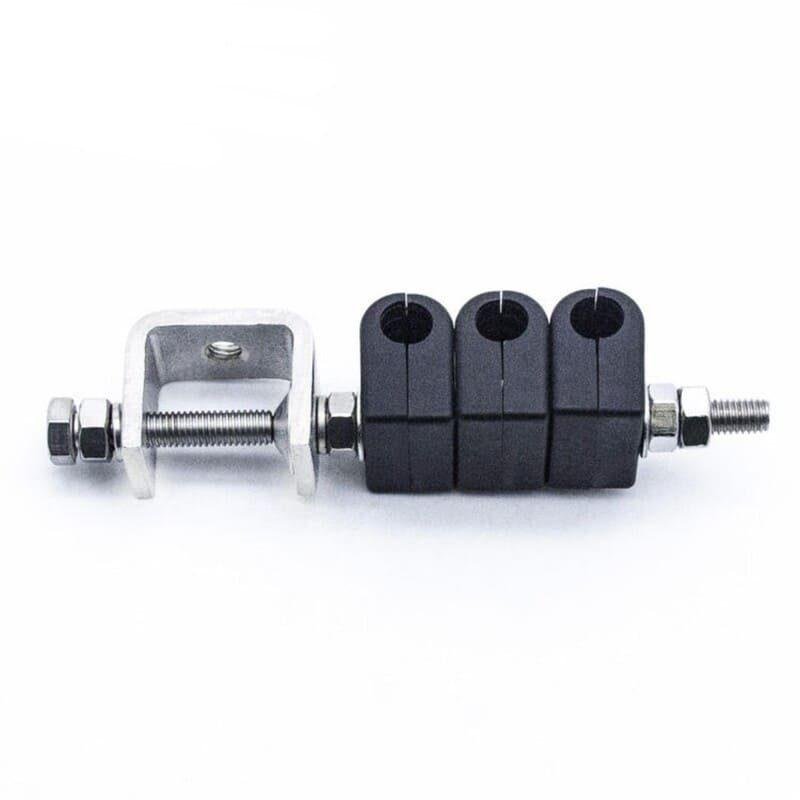

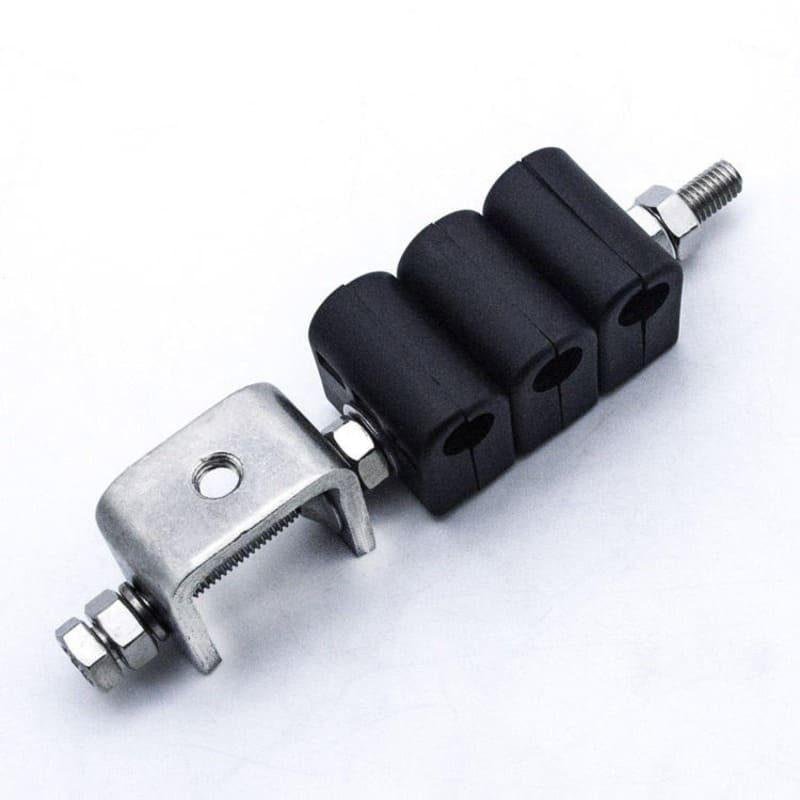

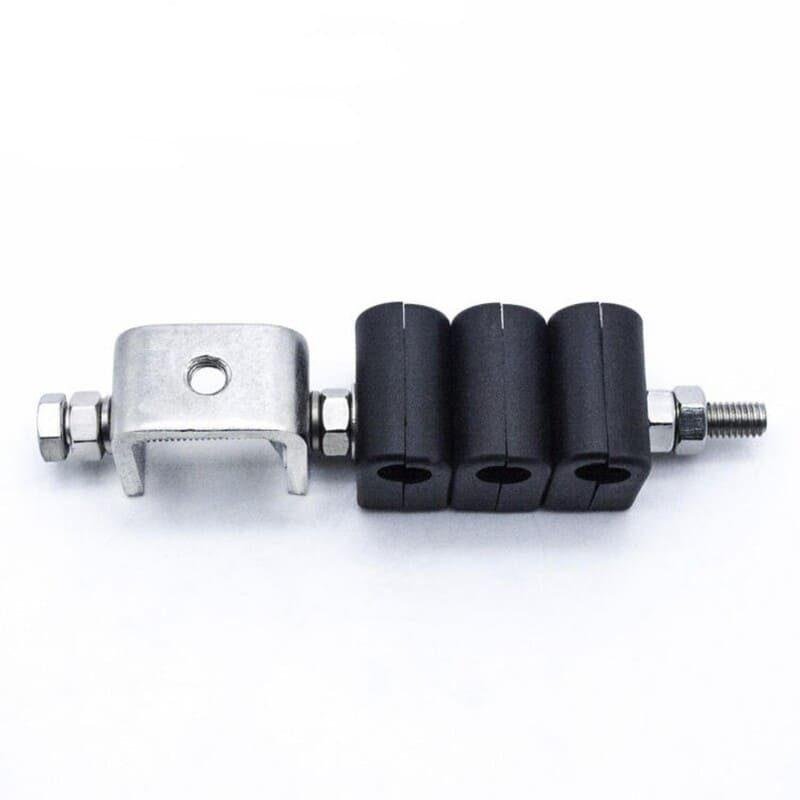

3 WAY FEEDER CLAMP FOR LMR400 CABLE

Description

The 3-Way Feeder Clamp for LMR-400 is a professional-grade mounting solution designed to maximize cable density on crowded tower members and cable trays. It is specifically sized to accommodate the outer diameter of LMR-400 series cables (approx. 10.29mm). The assembly consists of three independent UV-resistant polypropylene (PP) saddles held within a high-grade SUS304 stainless steel C-bracket, allowing three separate cables to be secured in a single organized row.

This clamp is indispensable for high-density wireless infrastructure, such as 3-sector antenna deployments or MIMO systems where multiple cable paths must follow the same route. By providing a secure, vibration-resistant attachment point for three cables simultaneously, it prevents physical damage and signal degradation caused by cable friction or wind loading. The high-quality stainless steel components ensure a rust-free lifespan in corrosive environments, while the modular design allows for even further expansion through stacking on the same mounting hardware.

Key Technical Advantages

• Triple-Run Efficiency: Secures three LMR-400 cables within a single footprint, significantly optimizing space on tower members, ladder rungs, and mounting brackets.

• LMR-400 Precision Fit: The plastic saddles are calibrated to provide a firm, non-slip grip on the cable jacket without over-compressing the dielectric, preserving the cable?s electrical properties.

• Superior Corrosion Resistance: All metallic components, including the C-bracket, threaded rod, and nuts, are manufactured from SUS304 stainless steel for maximum longevity in outdoor and coastal settings.

• UV and Weather Stability: The plastic hanger inserts are formulated with high-quality UV stabilizers to prevent embrittlement or cracking under prolonged exposure to sunlight and extreme temperature cycles.

• High-Density Management: Simplifies the organization of complex cable looms, reducing installation time and improving the overall aesthetic and safety of the cable run.

Key Features

• 3-Way Configuration: Specifically designed to secure three independent cables per clamp assembly.

• LMR-400 Compatibility: Optimized for all LMR-400 series cables, including Ultraflex, Plenum, and 400-series equivalents (e.g., RG-8, CNT-400).

• Heavy-Duty C-Bracket: A robust stainless steel frame designed to maintain constant tension and withstand extreme wind and ice loading across all three cable positions.

• Complete Hardware Set: Includes three UV-resistant saddles, a stainless steel bracket, a threaded rod/bolt, flat washers, spring washers, and hex nuts.

• Modular Stackability: The design supports stacking of additional hangers, allowing for the expansion of cable runs without requiring new base mounting points.

Technical Summary
