1 WAY FEEDER CLAMP FOR 7/8″ FEEDER CABLE

Description

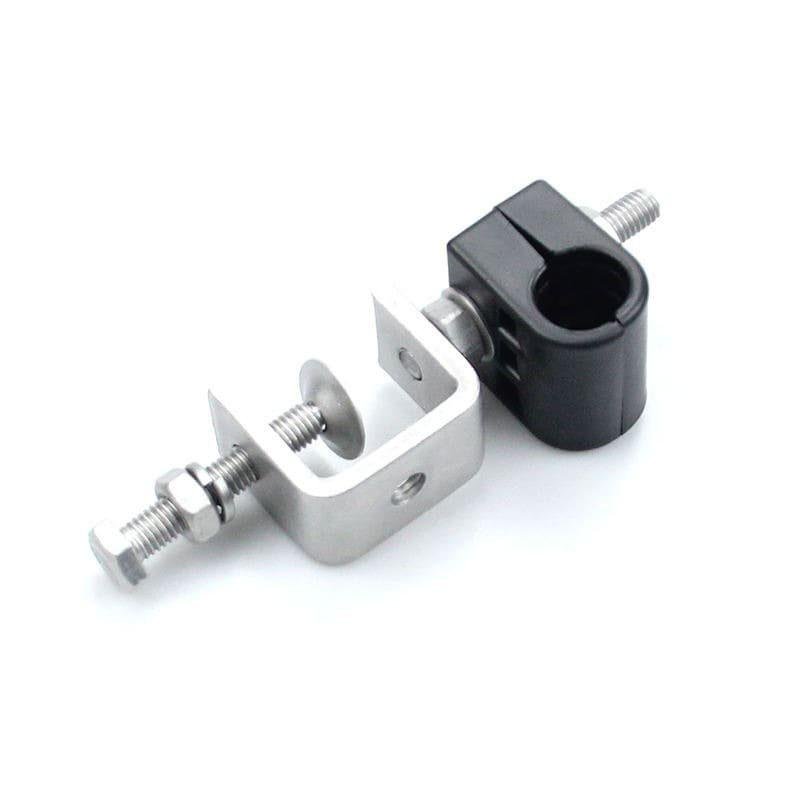

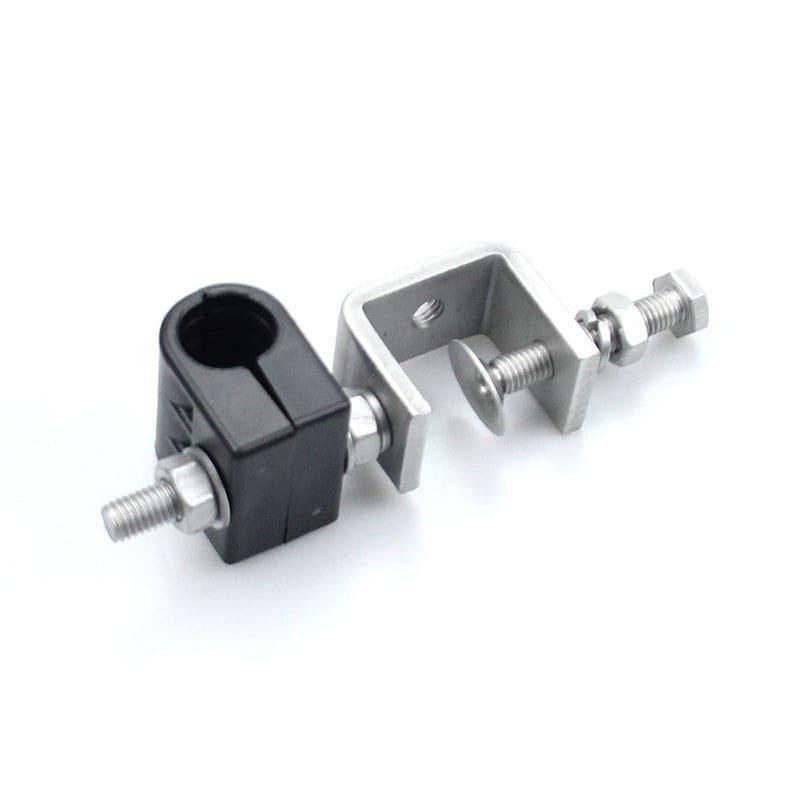

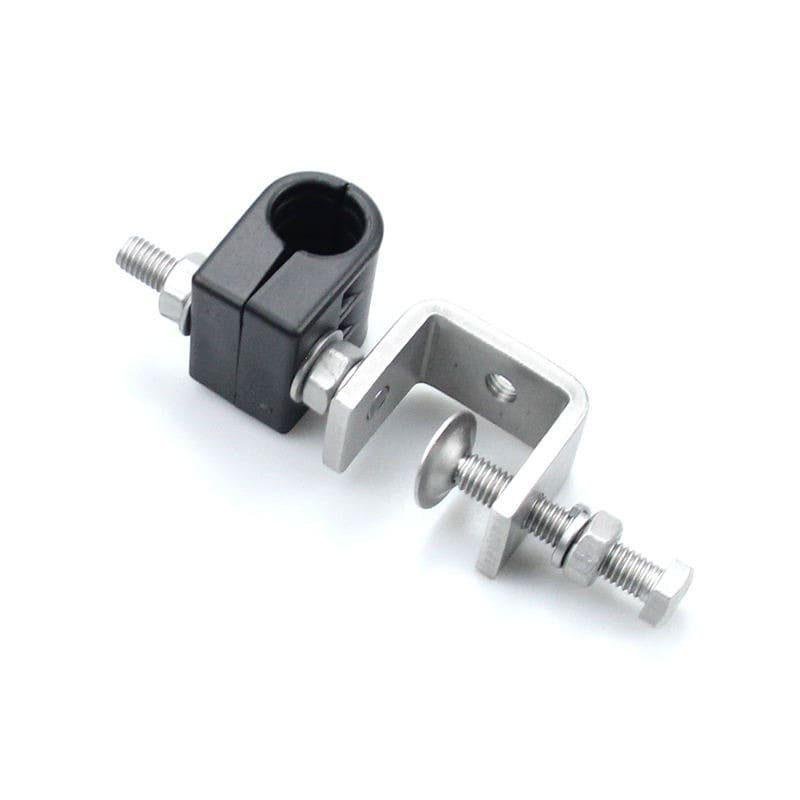

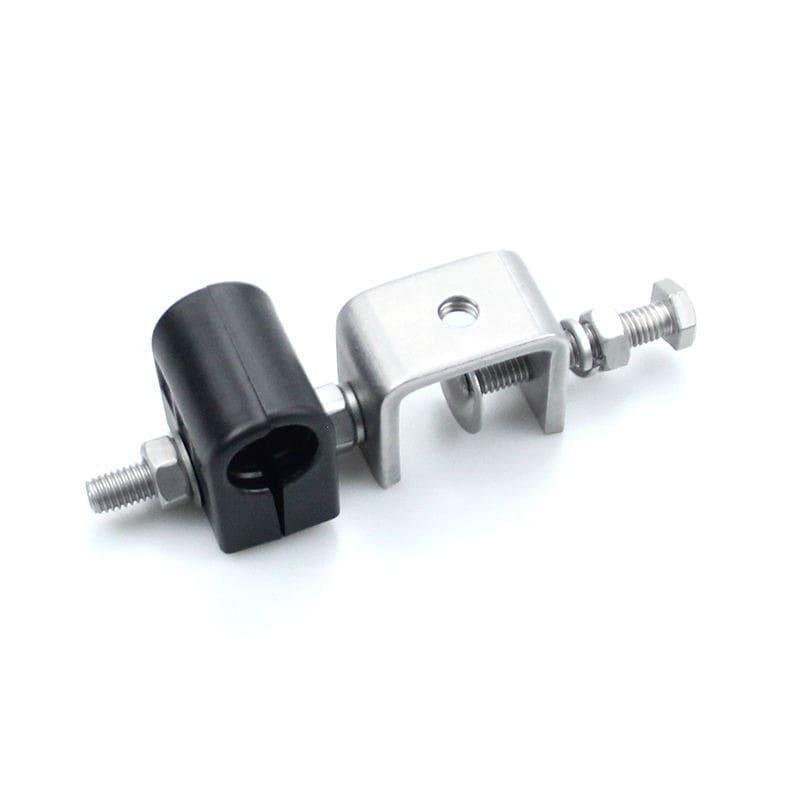

The 1-Way Feeder Clamp for 7/8″ Feeder Cable is a robust hardware solution designed to handle the weight and wind load of large-diameter transmission lines. It is specifically sized to fit the outer diameter of standard 7/8″ corrugated (annular or helical) coaxial cables, such as LDF5-50A, AVA5-50, or equivalent 50 Ohm feeder lines. The assembly consists of a high-impact, UV-resistant polypropylene (PP) saddle and a heavy-duty SUS304 stainless steel C-bracket.

This clamp is essential for ensuring the mechanical integrity of main feeder runs in high-power wireless systems. By providing a secure, contoured grip that distributes pressure evenly across the cable jacket, it prevents signal-degrading deformation of the internal dielectric. The design is optimized for high-vibration environments, ensuring the cable remains locked in place during extreme weather events. The high-grade stainless steel construction provides a maintenance-free lifespan even in coastal or high-humidity regions, while the modular design allows for vertical stacking to accommodate site growth.

Key Technical Advantages

• Precision 7/8″ Fit: The plastic hanger insert is molded to the exact outer diameter of 7/8″ corrugated cable (approx. 27mm?28mm), providing a secure, non-slip grip.

• Maximum Corrosion Protection: All metallic components, including the C-bracket, threaded rod, and fasteners, are made from SUS304 stainless steel to resist rust and environmental decay.

• High-Impact UV Stability: The hanger inserts are formulated with industrial-grade UV stabilizers to maintain structural flexibility and strength under continuous solar radiation.

• Engineered for High Loads: Specifically designed to support the significant vertical weight of 7/8″ feeder runs without mechanical failure or sagging.

• Modular Expansion: The stackable architecture allows for multiple cable runs to be added to the same mounting footprint, maximizing space on crowded tower members.

Key Features

• 1-Way Configuration: Engineered to support a single 7/8″ primary feeder cable run per clamp assembly.

• 7/8″ Feeder Compatibility: Optimized for standard 7/8″ corrugated cables, including low-loss, high-power, and fire-retardant transmission lines.

• Heavy-Duty C-Bracket: A reinforced stainless steel frame that maintains constant tension and provides high resistance to wind, ice, and thermal expansion.

• Comprehensive Hardware Kit: Includes the UV-resistant plastic saddle, stainless C-bracket, M8/M10 threaded rod, and all necessary lock washers and hex nuts.

• Standard Tower Integration: Designed for immediate attachment to standard angle adapters, round members, or tower ladder rungs.

Technical Summary
