1 WAY FEEDER CLAMP FOR 1/4″ FEEDER CABLE

Description

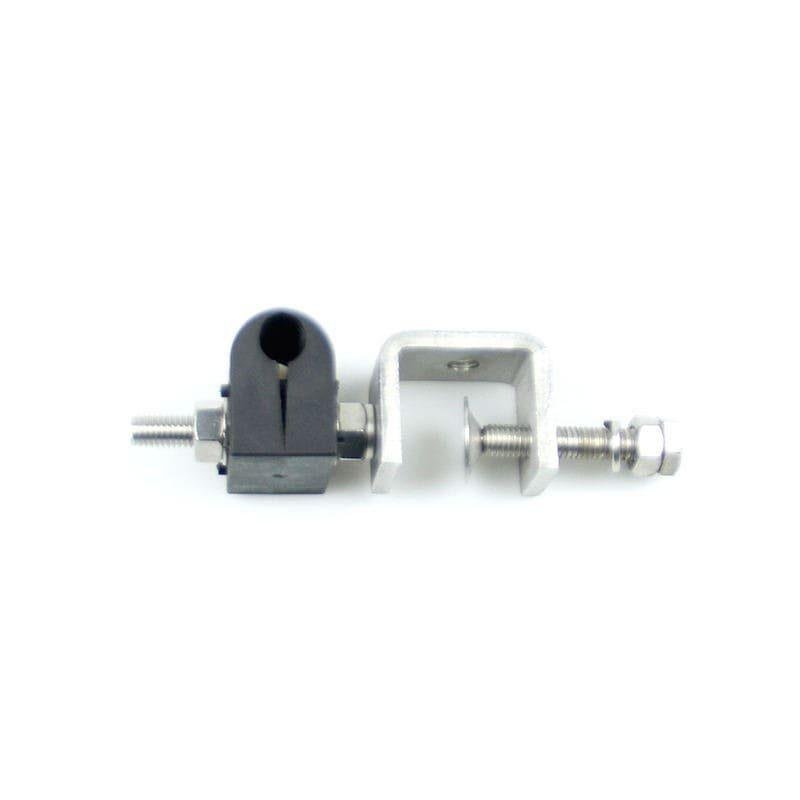

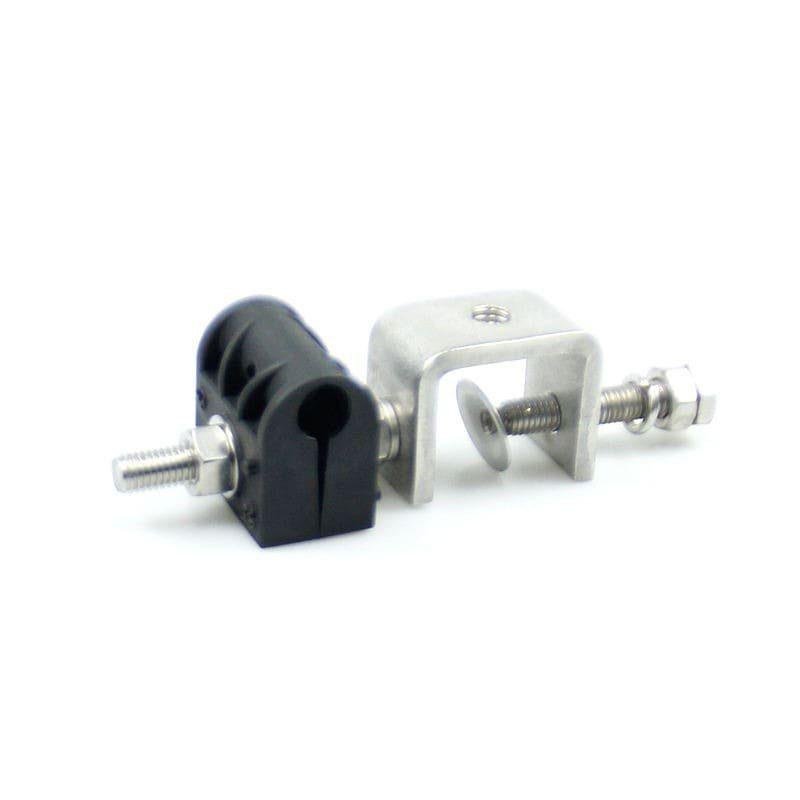

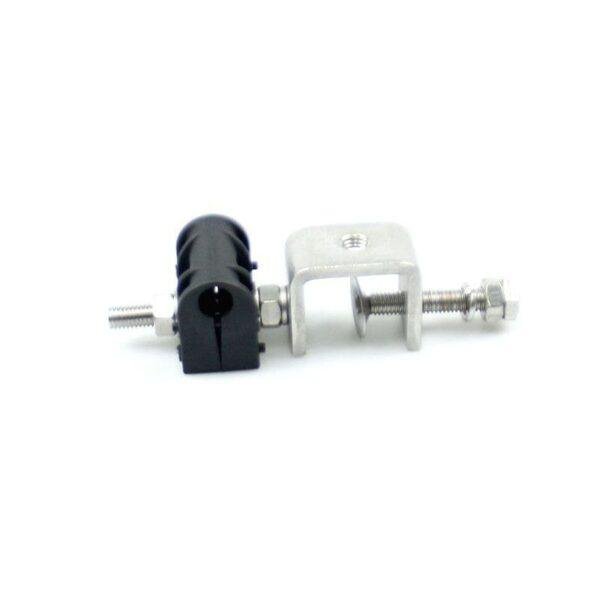

The 1-Way Feeder Clamp for 1/4″ Feeder Cable is a specialized hardware solution designed to provide mechanical stability for small-form-factor transmission lines. It is specifically sized to accommodate the outer diameter of standard 1/4″ corrugated (annular) coaxial cables, such as FSJ1-50A or equivalent high-flexibility jumper cables. The assembly consists of a high-strength, UV-resistant polypropylene (PP) saddle and a rugged SUS304 stainless steel C-bracket.

This clamp is essential for modern wireless infrastructure where high-density, small-diameter cabling is increasingly common. By providing a secure attachment point that resists wind-induced vibration and mechanical tension, it prevents signal degradation and physical wear on the cable jacket. The compact design allows for clean, organized cable routing in tight spaces, such as inside monopoles, on rooftop sites, or within indoor DAS environments. The high-grade stainless steel construction ensures long-term reliability and zero corrosion in both indoor and harsh outdoor settings.

Key Technical Advantages

• Precision Small-Diameter Fit: The plastic hanger is molded to the specific geometry of 1/4″ corrugated cable, providing a firm grip that prevents cable slippage without deforming the outer conductor.

• Superior Corrosion Resistance: All metallic hardware is manufactured from premium SUS304 stainless steel, offering maximum protection against oxidation and chemical exposure.

• UV and Environmental Stability: The hanger inserts are formulated with advanced UV stabilizers to prevent embrittlement, ensuring the clamp remains flexible and strong under constant solar exposure.

• Streamlined Installation: The user-friendly C-bracket design allows for rapid attachment to standard angle adapters, threaded rods, or tower members, reducing installation time.

• Stackable Architecture: Features a modular hanger design that supports vertical stacking, allowing for future cable expansion on the same mounting hardware.

Key Features

• 1-Way Configuration: Engineered to support a single 1/4″ feeder or jumper cable run per clamp assembly.

• 1/4″ Feeder Compatibility: Optimized for standard 1/4″ corrugated cables (approx. 7.5mm – 9.0mm outside diameter), including super-flexible and fire-retardant versions.

• Heavy-Duty C-Bracket: A robust stainless steel frame that maintains constant tension and provides high resistance to wind and ice loading.

• Comprehensive Hardware Kit: Includes the UV-resistant plastic saddle, stainless C-bracket, threaded bolt/rod, and all necessary lock washers and hex nuts.

• High-Density Ready: The slim profile is ideal for high-count cable bundles where space optimization is critical.
