4 WAY FEEDER CLAMP FOR LMR400 CABLE

Description

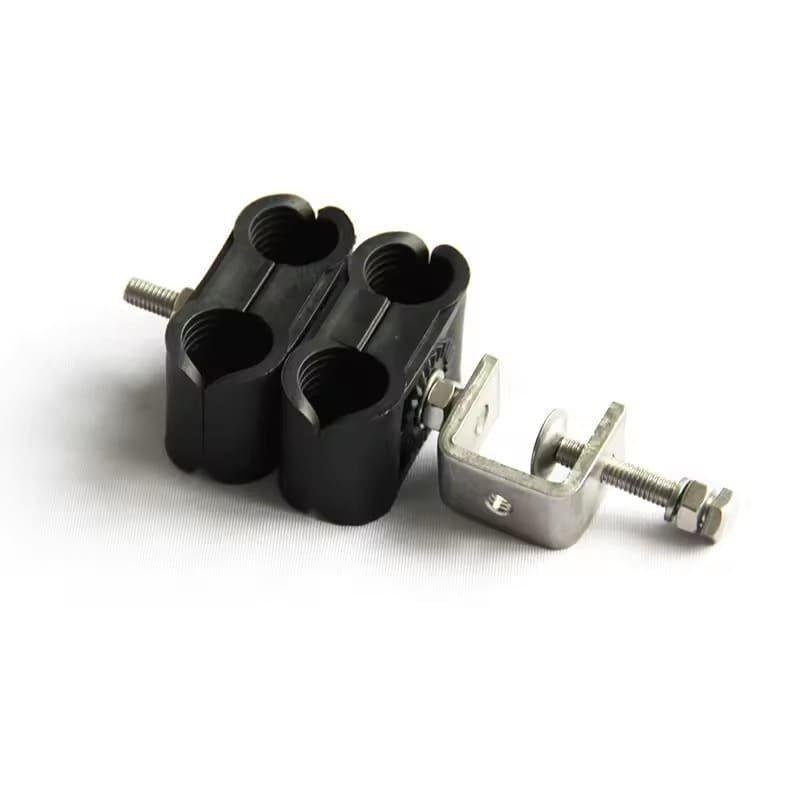

The 4-Way Feeder Clamp for LMR-400 is a professional-grade mounting solution designed to provide maximum cable organization in high-density wireless deployments. It is specifically sized to accommodate the outer diameter of LMR-400 series cables (approx. 10.29mm). The assembly consists of four independent UV-resistant polypropylene (PP) saddles held within a high-grade SUS304 stainless steel C-bracket, allowing four separate cables to be secured in a single, perfectly aligned row.

This clamp is essential for modern MIMO antenna systems, 4-port small cell configurations, and complex signal distribution where multiple cable paths must follow a single route. By providing a secure, vibration-resistant attachment point for four cables simultaneously, it prevents physical damage and signal degradation caused by cable-on-cable friction or wind loading. The high-quality stainless steel components ensure a rust-free lifespan in corrosive environments, while the modular design allows for clean, high-density vertical or horizontal cable runs with a minimal mounting footprint.

Key Technical Advantages

• Quadruple-Run Efficiency: Secures four LMR-400 cables within a single footprint, providing the highest possible cable density on tower members and cable trays.

• LMR-400 Precision Fit: The plastic saddles are calibrated to provide a firm, non-slip grip on the cable jacket without over-compressing the dielectric, preserving critical signal integrity.

• Superior Corrosion Resistance: All metallic components, including the C-bracket, threaded rod, and fasteners, are manufactured from SUS304 stainless steel for maximum outdoor durability.

• UV and Weather Stability: The plastic hanger inserts are formulated with industrial-grade UV stabilizers to prevent embrittlement or cracking under prolonged exposure to sunlight and thermal cycles.

• High-Density Signal Management: Drastically reduces installation time and clutter by organizing four independent signal paths into a single, robust mechanical interface.

Key Features

• 4-Way Configuration: Specifically designed to secure four independent cables per clamp assembly.

• LMR-400 Compatibility: Optimized for all LMR-400 series cables, including Ultraflex, Plenum, and 400-series equivalents (e.g., RG-8, CNT-400).

• Heavy-Duty C-Bracket: A reinforced stainless steel frame designed to maintain constant tension and withstand extreme wind and ice loading across all four cable positions.

• Complete Hardware Set: Includes four UV-resistant saddles, a stainless steel bracket, a threaded rod/bolt, flat washers, spring washers, and hex nuts.

• Modular Stackability: The design supports stacking of additional 4-way hangers, allowing for further expansion of cable runs without requiring new base mounting points.

🔹 Applications:

• Multi cable routing systems
• Telecom infrastructure
• Antenna feeder management
• RF signal distribution
• Outdoor installations
• DAS systems
