2 WAY FEEDER CLAMP FOR LMR400 CABLE

Description

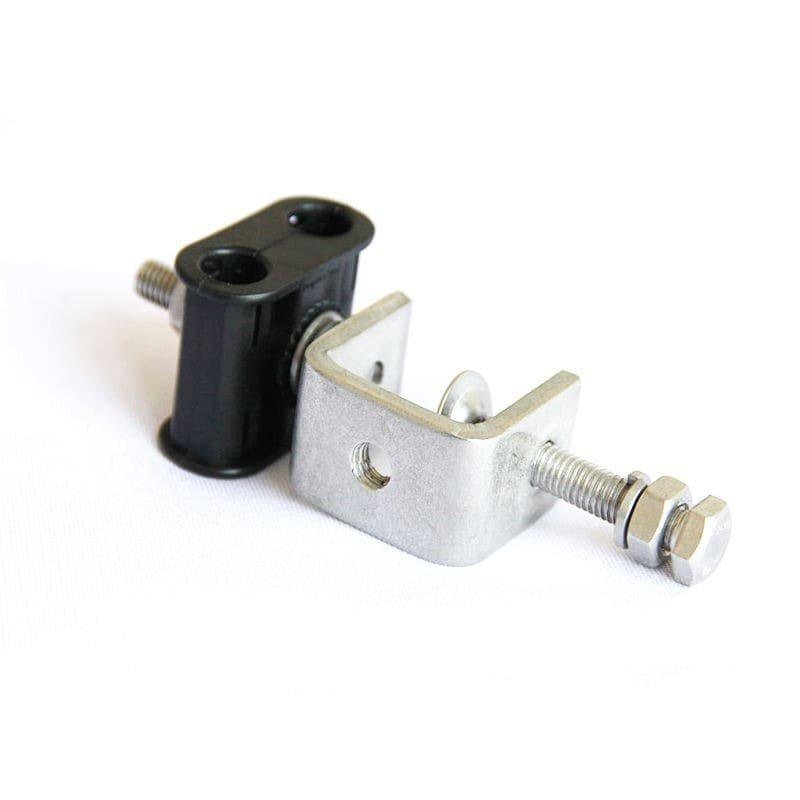

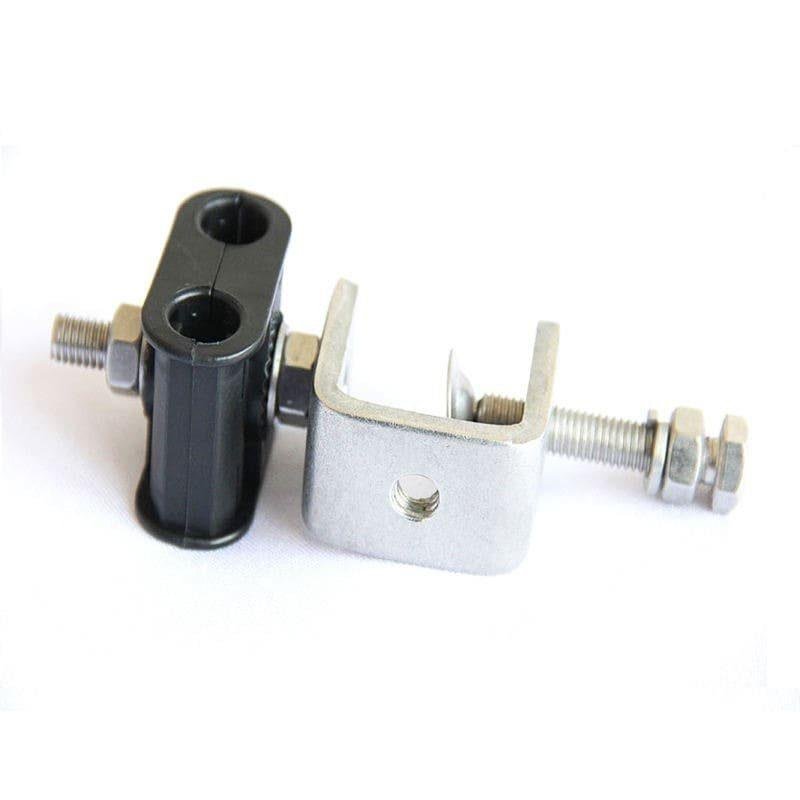

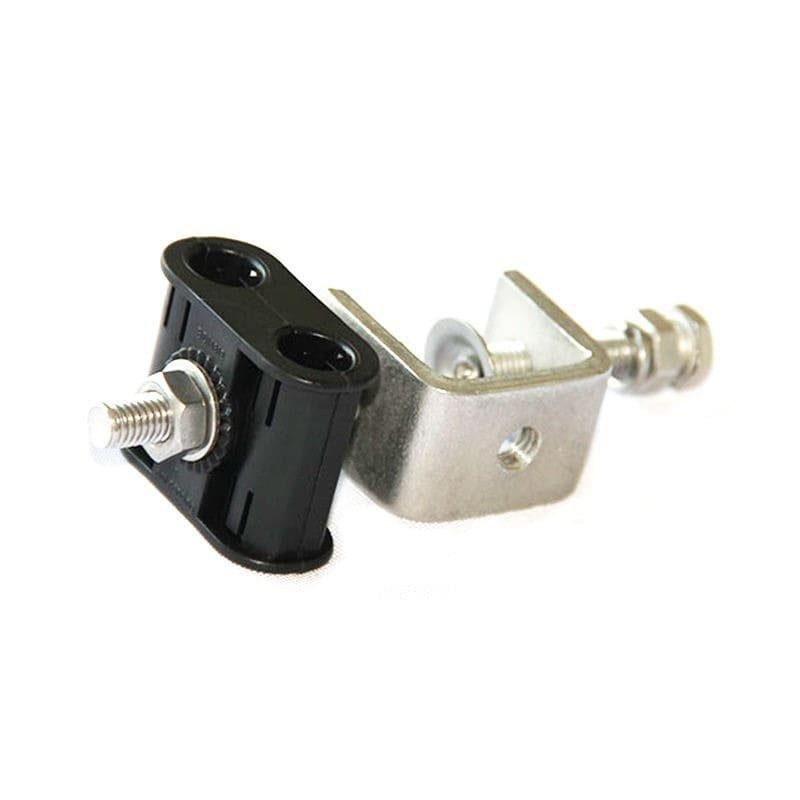

The 2-Way Feeder Clamp for LMR-400 is a professional-grade mounting solution designed to maximize cable density while maintaining mechanical stability. It is specifically sized to accommodate the outer diameter of LMR-400 series cables (approx. 10.29mm). The assembly consists of two independent UV-resistant polypropylene (PP) saddles held within a high-grade SUS304 stainless steel C-bracket, allowing two separate cables to be secured in a single vertical or horizontal row.

This clamp is indispensable for wireless infrastructure installers who need to organize multiple cable paths, such as MIMO antenna systems or main-and-backup transmission lines. By providing a secure, vibration-resistant attachment point, it prevents physical damage or signal degradation caused by cable friction or wind loading. The high-quality stainless steel components ensure a rust-free lifespan in corrosive environments, while the modular design allows for additional hangers to be stacked on the same mounting hardware as site requirements expand.

Key Technical Advantages

• Dual-Run Management: Allows for the clean, parallel routing of two LMR-400 cables within a single footprint, optimizing space on tower members and cable trays.

• LMR-400 Precision Fit: The plastic saddles are calibrated to provide a firm, non-slip grip on the cable jacket without over-compressing the dielectric, preserving the cable?s electrical properties.

• Superior Corrosion Resistance: All metallic components, including the C-bracket, threaded rod, and nuts, are manufactured from SUS304 stainless steel for maximum longevity in outdoor settings.

• UV and Weather Stability: The plastic hanger inserts are formulated with high-quality UV stabilizers to prevent embrittlement or cracking under prolonged exposure to sunlight and extreme temperatures.

• Modular Stackability: The design supports stacking of additional 2-way hangers, allowing for the expansion of cable runs without installing new mounting brackets.

Key Features

• 2-Way Configuration: Specifically designed to secure two independent cables per clamp assembly.

• LMR-400 Compatibility: Optimized for all LMR-400 series cables, including Ultraflex, Plenum, and 400-series equivalents (e.g., RG-8, CNT-400).

• Heavy-Duty C-Bracket: A robust stainless steel frame designed to withstand extreme wind and ice loading while maintaining constant tension.

• Complete Hardware Set: Includes the dual UV-resistant saddles, stainless steel bracket, threaded rod/bolt, flat washers, spring washers, and hex nuts.

• Temperature Resilience: Engineered to maintain mechanical integrity in temperatures ranging from -40?C to +85?C.
