6 WAY FEEDER CLAMP FOR 1-5/8″ FEEDER CABLE

Description

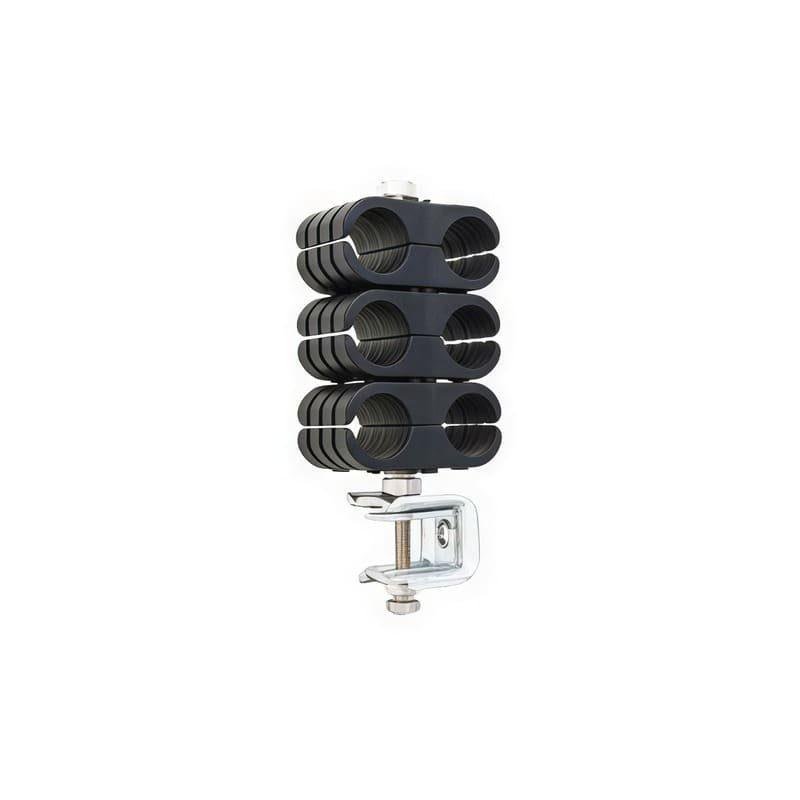

The 6-Way Feeder Clamp for 1-5/8″ Feeder Cable is an industrial-strength hardware solution designed for maximum space optimization when managing the highest-capacity, large-diameter transmission lines. It is specifically sized to fit the outer diameter of standard 1-5/8″ corrugated (annular) coaxial cables, such as LDF7-50, AVA7-50, or equivalent high-power feeder lines. The assembly consists of six high-impact, UV-resistant polypropylene (PP) saddles secured within a reinforced, extra-heavy-duty SUS304 stainless steel C-bracket.

This clamp is indispensable for primary cellular backbone infrastructure, high-power broadcast sites, and advanced multi-sector deployments where six massive 1-5/8″ feeder runs must be routed efficiently along a single path. By providing a secure, contoured grip for six cables simultaneously, it ensures maximum mechanical stability and prevents signal-degrading dielectric deformation under the extreme cumulative weight of the bundle. The design is optimized for high-vibration and extreme weather, ensuring the cables remain locked in place during high-wind events. The high-grade stainless steel construction provides a maintenance-free lifespan in corrosive coastal regions, while the sextuple-run configuration drastically reduces the required mounting footprint on crowded tower members and monopoles.

Key Technical Advantages

• Maximum Cable Density Optimization: Secures six 1-5/8″ primary feeder runs within a single mounting point, offering the highest possible space efficiency for the largest-diameter cables on tower members.

• Precision 1-5/8″ Fit: The plastic hanger inserts are molded to the exact geometry of 1-5/8″ corrugated cable (approx. 50mm-52mm OD), providing a firm, non-slip grip that protects the cable’s structural integrity.

• Superior Corrosion Protection: All metallic components, including the reinforced C-bracket and heavy-duty threaded rod, are made from SUS304 stainless steel for maximum outdoor longevity.

• High-Impact UV Stability: The hanger inserts are formulated with industrial-grade UV stabilizers to maintain structural flexibility and strength under continuous solar radiation and extreme thermal cycling.

• Engineered for Massive Vertical Loads: Specifically reinforced to support the extreme cumulative vertical weight and wind surface area of six 1-5/8″ feeder runs without mechanical failure.

Key Features

• 6-Way Configuration: Specifically engineered to support six independent 1-5/8″ primary feeder cable runs per clamp assembly.

• 1-5/8″ Feeder Compatibility: Optimized for standard 1-5/8″ corrugated cables, including low-loss, high-power, and fire-retardant transmission lines.

• Reinforced C-Bracket: A heavy-duty stainless steel frame designed to maintain constant tension across all six cable positions during extreme wind and ice loading events.

• Comprehensive Hardware Kit: Includes six extra-large UV-resistant plastic saddles, a stainless C-bracket, a heavy-duty threaded rod assembly, and all necessary lock washers and hex nuts.

• Standard Infrastructure Ready: Designed for immediate attachment to standard tower angle adapters, round members, or monopole brackets.

🔹 Applications:

• High-capacity RF cable routing
• Telecom infrastructure
• Antenna feeder systems
• Signal distribution networks
• Outdoor RF installations
• Broadcast setups
