6 WAY FEEDER CLAMP FOR 1/4″ FEEDER CABLE

Description

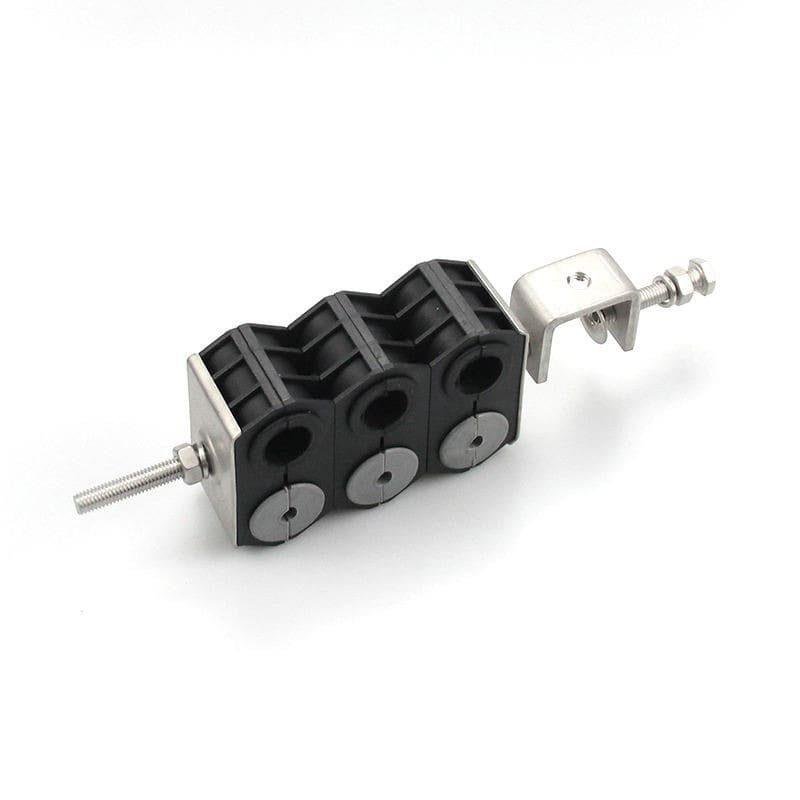

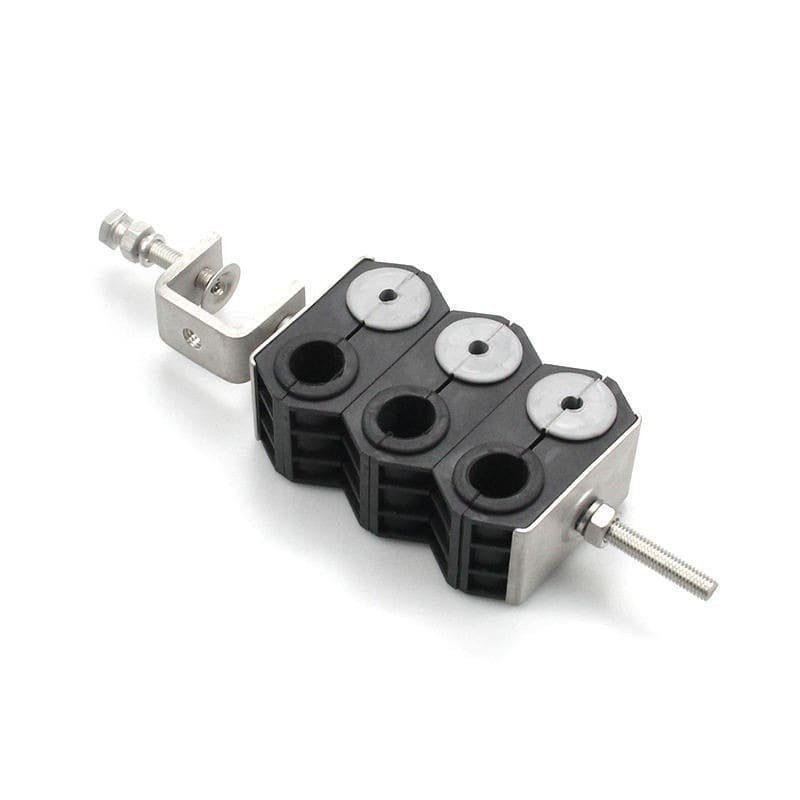

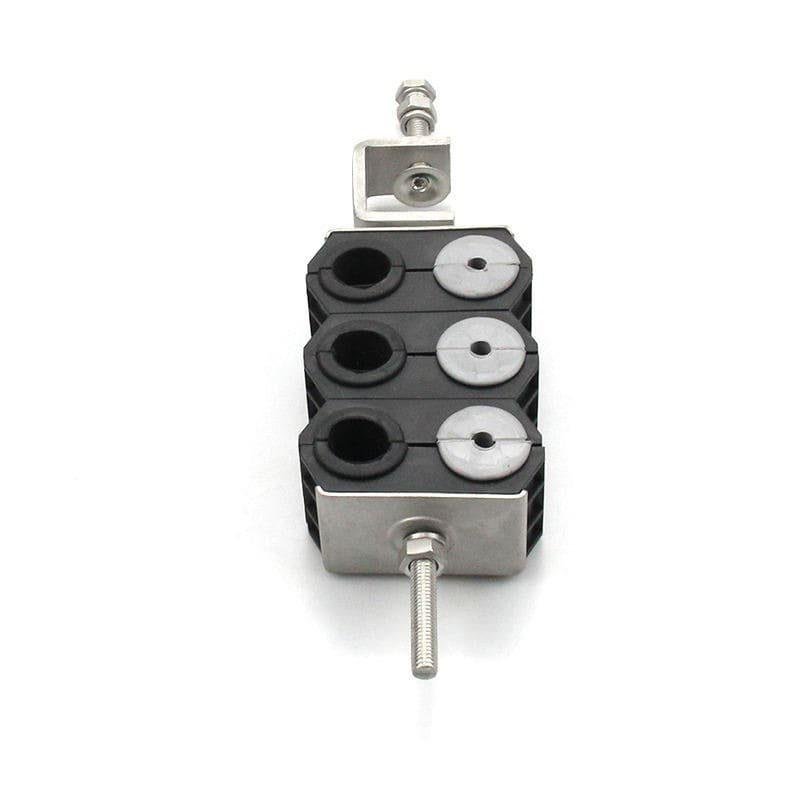

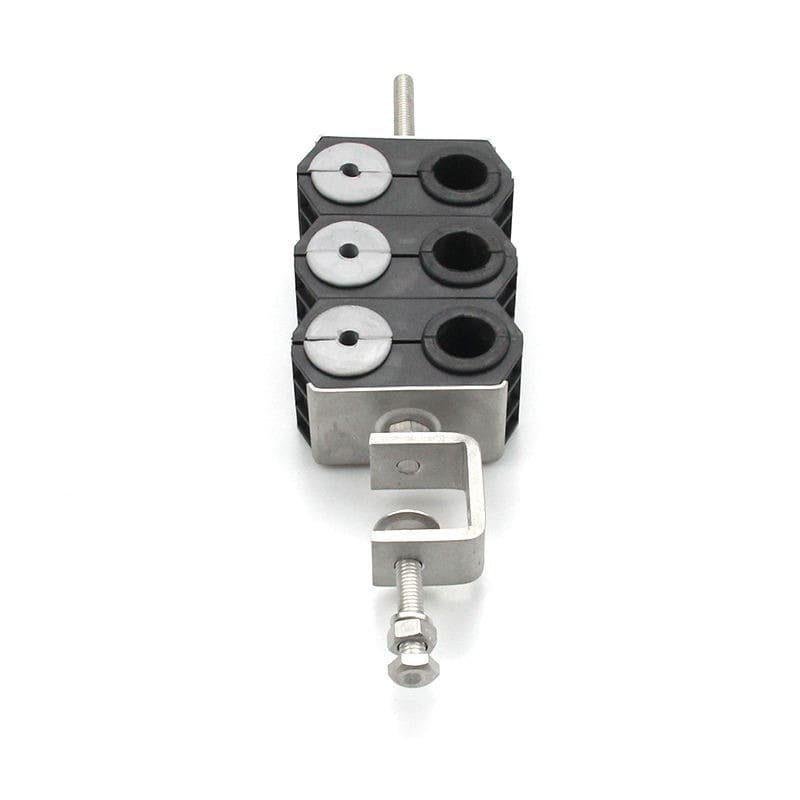

The 6-Way Feeder Clamp for 1/4″ Feeder Cable is an ultra-high-density hardware solution designed for maximum space optimization in modern wireless infrastructure. It is specifically sized to fit the outer diameter of standard 1/4″ corrugated (annular) coaxial cables, such as FSJ1-50A or equivalent jumper cables. The assembly consists of six high-strength, UV-resistant polypropylene (PP) saddles secured within a reinforced SUS304 stainless steel C-bracket, allowing for the organization of six independent signal paths in a single, compact mechanical footprint.

This clamp is essential for high-density 5G small cells, indoor DAS systems, and multi-port MIMO configurations where a large volume of small-diameter cables must be routed along a single route. By providing a secure, vibration-resistant attachment point for six cables simultaneously, it prevents signal degradation caused by cable-on-cable friction and dielectric compression. The high-grade stainless steel construction ensures a maintenance-free, corrosion-free lifespan in both indoor and harsh outdoor environments, while the sextuple-run configuration significantly reduces the mounting footprint on crowded mounting rails or tower members.

Key Technical Advantages

• Ultra-High-Density Efficiency: Secures six 1/4″ cables within a single mounting point, providing the highest possible cable density for space-constrained installations.

• Precision Small-Diameter Fit: The plastic hangers are molded to the specific geometry of 1/4″ corrugated cable (approx. 7.5mm – 9.0mm OD), providing a firm grip that prevents slippage without deforming the cable.

• Superior Corrosion Resistance: All metallic components, including the reinforced C-bracket and fasteners, are manufactured from premium SUS304 stainless steel for maximum durability.

• UV and Environmental Stability: Formulated with industrial-grade UV stabilizers to maintain structural integrity and prevent cracking under continuous solar exposure.

• Streamlined Cable Management: Drastically reduces installation time and clutter by organizing six independent transmission lines into a single, professional mechanical interface.

Key Features

• 6-Way Configuration: Specifically engineered to support six independent 1/4″ feeder or jumper cable runs per clamp assembly.

• 1/4″ Feeder Compatibility: Optimized for standard 1/4″ corrugated cables, including super-flexible and fire-retardant variants.

• Reinforced C-Bracket: A robust stainless steel frame designed to maintain constant tension across all six cable positions under environmental stress.

• Comprehensive Hardware Kit: Includes six UV-resistant saddles, a stainless steel bracket, a threaded bolt/rod, and all necessary lock washers and hex nuts.

• Universal Integration: Designed for immediate attachment to standard angle adapters, round members, or flat mounting surfaces.
