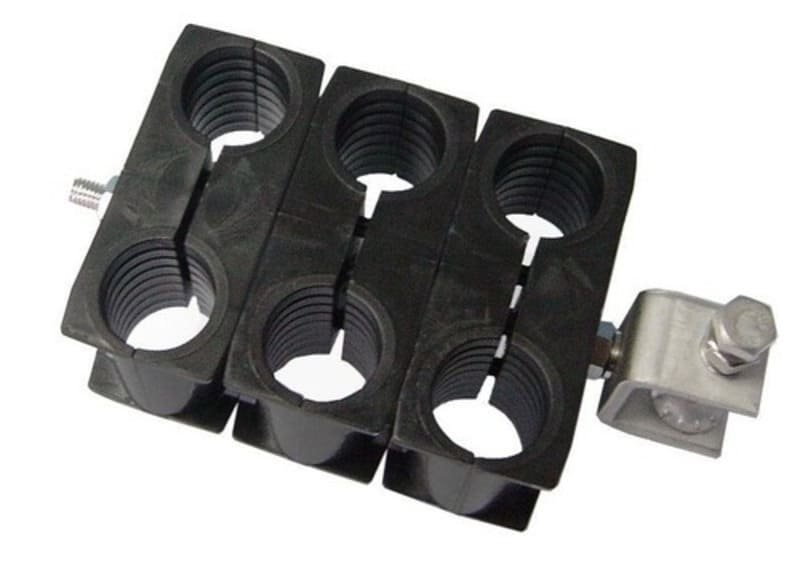

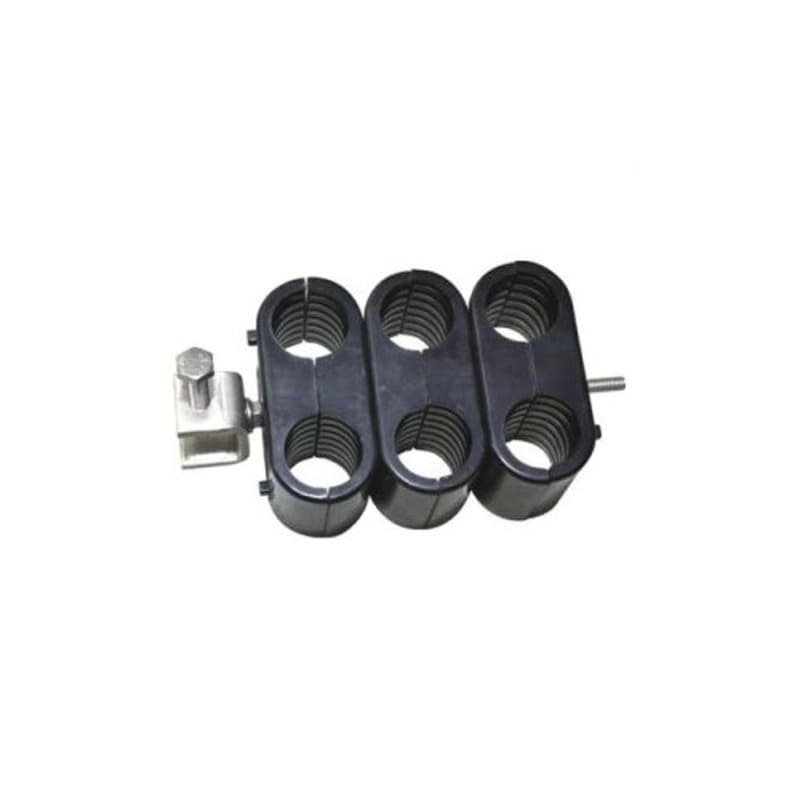

6 WAY FEEDER CLAMP FOR 7/8″ FEEDER CABLE

Description

The 6-Way Feeder Clamp for 7/8″ Feeder Cable is an industrial-strength hardware solution designed for maximum space optimization when managing large-diameter transmission lines. It is specifically sized to fit the outer diameter of standard 7/8″ corrugated (annular or helical) coaxial cables, such as LDF5-50A, AVA5-50, or equivalent 50 Ohm feeder lines. The assembly consists of six high-impact, UV-resistant polypropylene (PP) saddles secured within a reinforced, extra-long SUS304 stainless steel C-bracket.

This clamp is indispensable for high-capacity multi-carrier co-locations and advanced MIMO antenna deployments where six primary feeder runs must be routed efficiently along a single path. By providing a secure, contoured grip for six cables simultaneously, it ensures maximum mechanical stability and prevents signal-degrading cable movement or dielectric deformation. The design is optimized for high-vibration and extreme weather, ensuring all six cables remain locked in place during high-wind events. The high-grade stainless steel construction provides a maintenance-free lifespan in corrosive coastal regions, while the sextuple-run configuration drastically reduces the required mounting footprint on crowded tower members.

Key Technical Advantages

• Maximum Cable Density: Secures six 7/8″ primary feeder runs within a single mounting point, offering the highest possible space efficiency for large-diameter cables on tower members.

• Precision 7/8″ Fit: The plastic hanger inserts are molded to the exact geometry of 7/8″ corrugated cable (approx. 27mm?28mm OD), providing a firm, non-slip grip that protects the cable’s structural integrity.

• Superior Corrosion Protection: All metallic components, including the reinforced C-bracket and heavy-duty threaded rod, are made from SUS304 stainless steel for maximum outdoor longevity.

• High-Impact UV Stability: The hanger inserts are formulated with industrial-grade UV stabilizers to maintain structural flexibility and strength under continuous solar radiation.

• Engineered for Massive Vertical Loads: Specifically reinforced to support the extreme cumulative weight and wind surface area of six 7/8″ feeder runs without mechanical failure.

Key Features

• 6-Way Configuration: Specifically engineered to support six independent 7/8″ primary feeder cable runs per clamp assembly.

• 7/8″ Feeder Compatibility: Optimized for standard 7/8″ corrugated cables, including low-loss, high-power, and fire-retardant transmission lines.

• Reinforced C-Bracket: A heavy-duty stainless steel frame designed to maintain constant tension across all six cable positions under heavy wind and ice loading.

• Comprehensive Hardware Kit: Includes six UV-resistant plastic saddles, a stainless C-bracket, an M10/M12 threaded rod, and all necessary lock washers and hex nuts.

• Standard Infrastructure Ready: Designed for immediate attachment to standard tower angle adapters, round members, or monopole brackets.

Technical Summary
