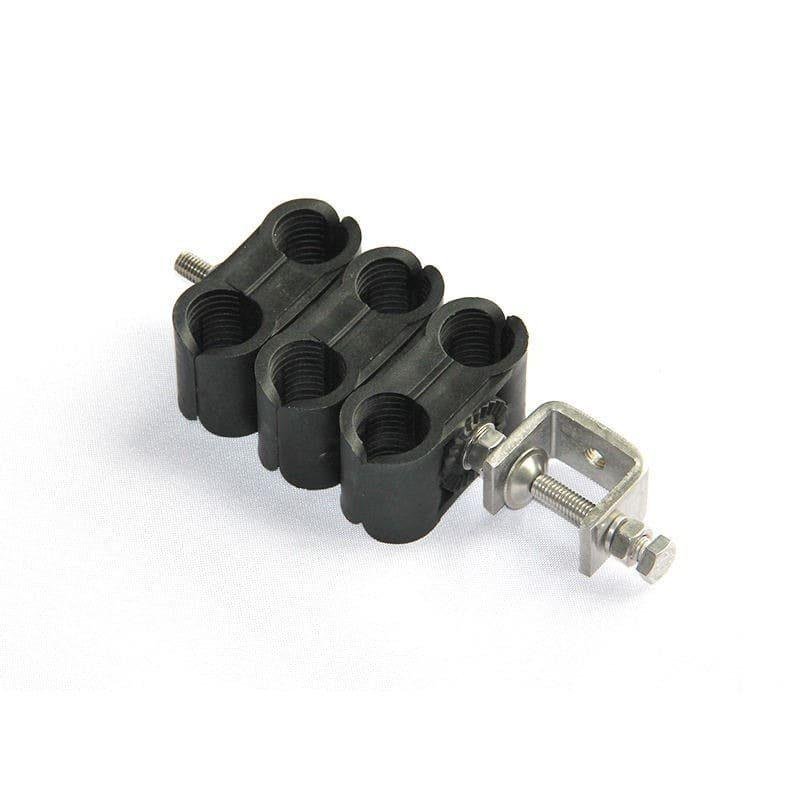

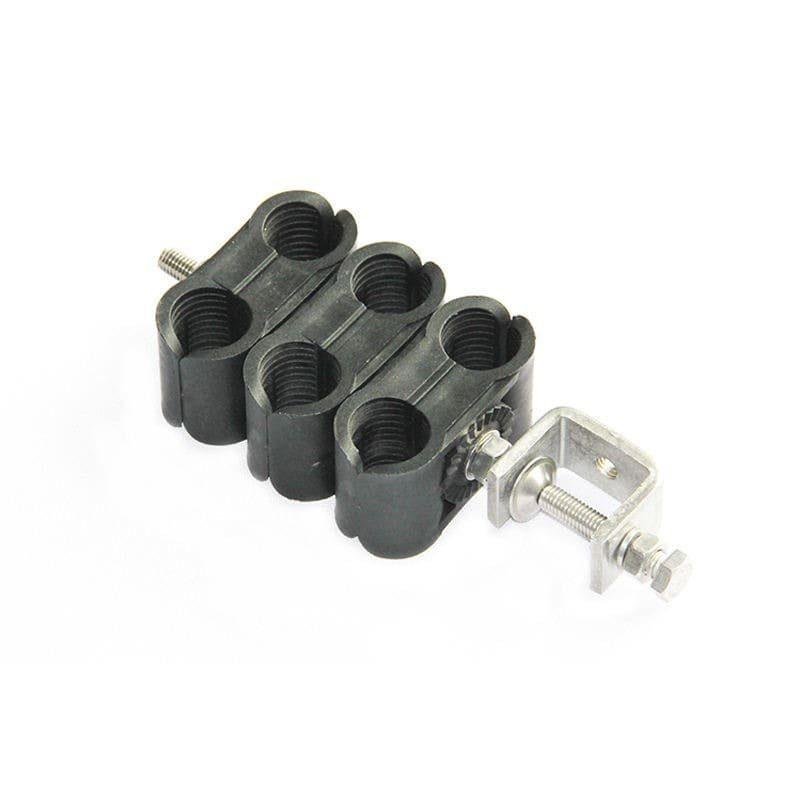

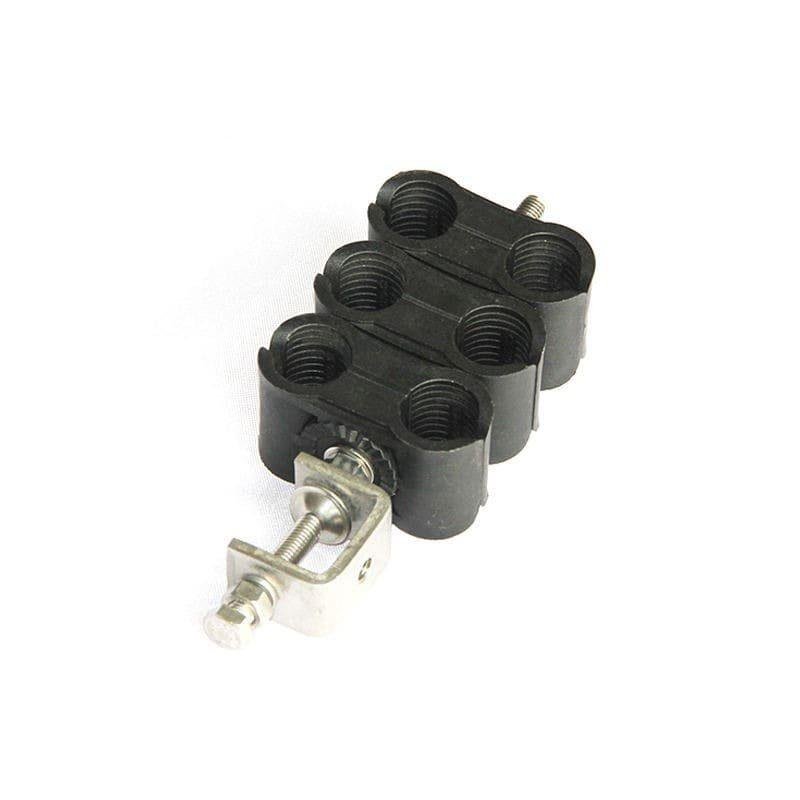

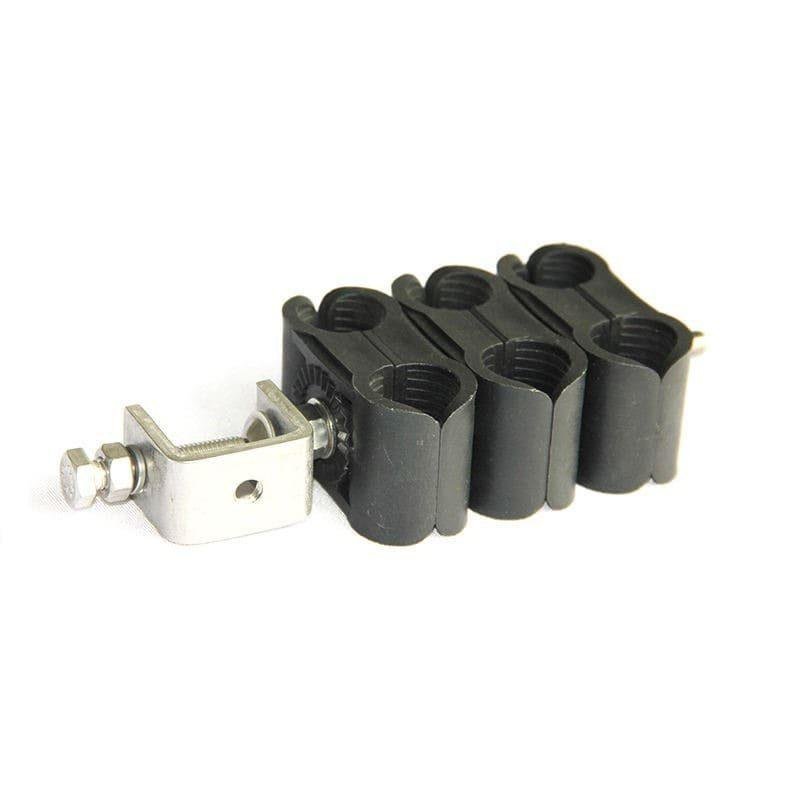

6 WAY FEEDER CLAMP FOR 1/2″ FEEDER CABLE

Description

The 6-Way Feeder Clamp for 1/2″ Feeder Cable is an industrial-grade hardware solution designed for maximum space optimization in high-density wireless infrastructure. It is specifically sized to accommodate the outer diameter of standard 1/2″ corrugated (annular or helical) coaxial cables, such as LDF4-50A, AVA4-50, or equivalent transmission lines. The assembly consists of six high-strength, UV-resistant polypropylene (PP) saddles secured within a reinforced SUS304 stainless steel C-bracket, allowing for the organization of six independent cable runs in a single mechanical footprint.

This clamp is critical for modern high-capacity sites, including advanced MIMO antenna deployments and multi-carrier co-locations where a large volume of feeder lines must be routed along a single path. By providing a secure, vibration-resistant attachment point for six cables simultaneously, it ensures maximum mechanical stability and prevents signal-degrading cable movement or dielectric deformation. The high-grade stainless steel construction ensures a maintenance-free, corrosion-free lifespan in even the most challenging outdoor environments, while the compact 6-way configuration significantly reduces the required mounting space on crowded tower members.

Key Technical Advantages

• Ultra-High-Density Efficiency: Secures six 1/2″ feeder runs within a single mounting point, providing the highest possible cable density on tower members and cable ladders.

• Precision Corrugated Fit: The plastic hangers are molded to the specific geometry of 1/2″ corrugated cable (approx. 16mm OD), providing a firm, non-slip grip that protects the cable’s structural integrity.

• Superior Corrosion Resistance: All metallic components, including the reinforced C-bracket and threaded rod, are manufactured from premium SUS304 stainless steel for maximum outdoor durability.

• UV and Thermal Stability: Formulated with industrial-grade UV stabilizers to prevent embrittlement and cracking under constant solar radiation and extreme temperature cycles.

• Streamlined Signal Management: Drastically reduces installation time and infrastructure clutter by organizing six independent transmission lines into a single, robust mechanical interface.

Key Features

• 6-Way Configuration: Engineered to support six independent 1/2″ feeder cable runs per clamp assembly.

• 1/2″ Feeder Compatibility: Optimized for standard 1/2″ corrugated cables, including low-loss, fire-retardant, and high-flex variants.

• Reinforced C-Bracket: A heavy-duty stainless steel frame designed to maintain constant tension and withstand extreme wind and ice loading across all six cable positions.

• Comprehensive Hardware Kit: Includes six UV-resistant saddles, a stainless steel bracket, a threaded rod, and all necessary lock washers and hex nuts.

• Standard Infrastructure Ready: Designed for immediate attachment to standard angle adapters, round members, or tower ladder rungs.

Technical Summary
