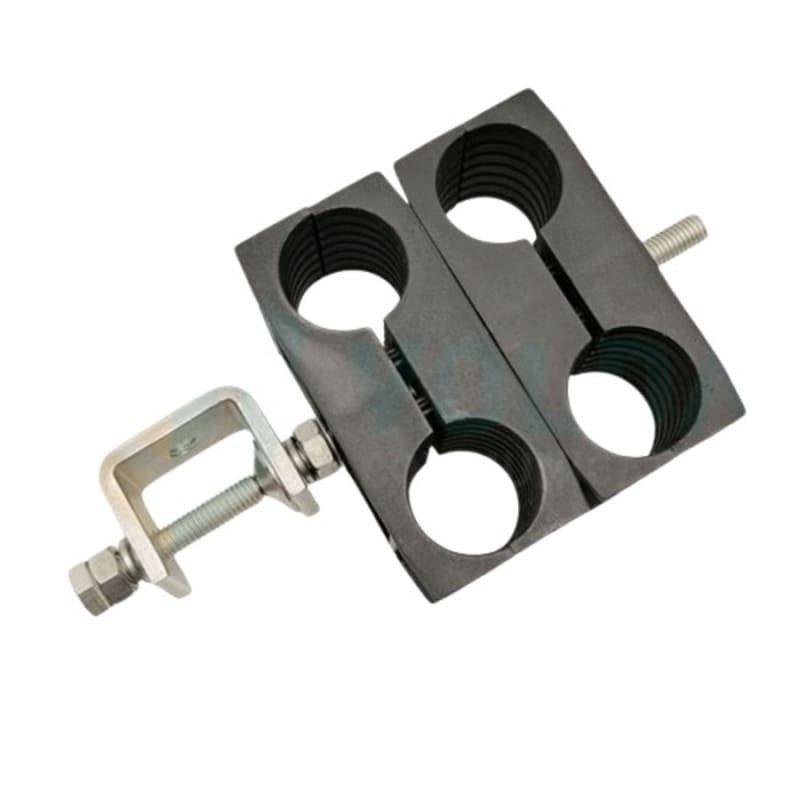

4 WAY FEEDER CLAMP FOR 1-5/8″ FEEDER CABLE

Description

The 4-Way Feeder Clamp for 1-5/8″ Feeder Cable is a high-performance hardware solution designed to manage the maximum physical load of four very large-diameter transmission lines. It is specifically sized to fit the outer diameter of standard 1-5/8″ corrugated (annular) coaxial cables, such as LDF7-50, AVA7-50, or equivalent high-power feeder lines. The assembly consists of four high-impact, UV-resistant polypropylene (PP) saddles secured within an extra-reinforced SUS304 stainless steel C-bracket.

This clamp is critical for high-power broadcast sites, major cellular backbone infrastructure, and 4×4 MIMO deployments where four massive feeder runs must be routed along the same path. By providing a secure, contoured grip for four heavy-duty cables simultaneously, it ensures maximum mechanical stability and prevents signal-degrading dielectric deformation. The design is optimized for extreme weather, ensuring the cables remain locked in place during high-wind events or heavy ice accumulation. The high-grade stainless steel construction provides a maintenance-free lifespan in corrosive coastal regions, while the high-density configuration optimizes limited mounting space on tower members and cable ladders.

Key Technical Advantages

• Maximum Cable Density: Secures four 1-5/8″ primary feeder runs within a single mounting point, offering the highest possible space efficiency on crowded tower members.

• Precision 1-5/8″ Fit: The plastic hanger inserts are molded to the exact geometry of 1-5/8″ corrugated cable (approx. 50mm?52mm OD), providing a firm, non-slip grip that protects the cable’s structural integrity.

• Superior Corrosion Protection: All metallic components, including the heavy-duty C-bracket, threaded rod, and fasteners, are made from SUS304 stainless steel for maximum outdoor longevity.

• High-Impact UV Stability: The hanger inserts are formulated with industrial-grade UV stabilizers to maintain structural flexibility and strength under continuous solar radiation.

• Engineered for Extreme Loads: Specifically reinforced to support the significant cumulative vertical weight and wind surface area of four 1-5/8″ feeder runs without mechanical failure.

Key Features

• 4-Way Configuration: Engineered to support four independent 1-5/8″ primary feeder cable runs per clamp assembly.

• 1-5/8″ Feeder Compatibility: Optimized for standard 1-5/8″ corrugated cables, including low-loss, high-power, and fire-retardant transmission lines.

• Reinforced C-Bracket: A heavy-duty stainless steel frame designed to maintain constant tension across all four cable positions during extreme wind and ice loading.

• Comprehensive Hardware Kit: Includes four extra-large UV-resistant plastic saddles, a stainless C-bracket, a heavy-duty threaded rod, and all necessary lock washers and hex nuts.

• Standard Infrastructure Ready: Designed for immediate attachment to standard tower angle adapters, round members, or monopole brackets.

Technical Summary
