5/8” Feeder Cable

Description

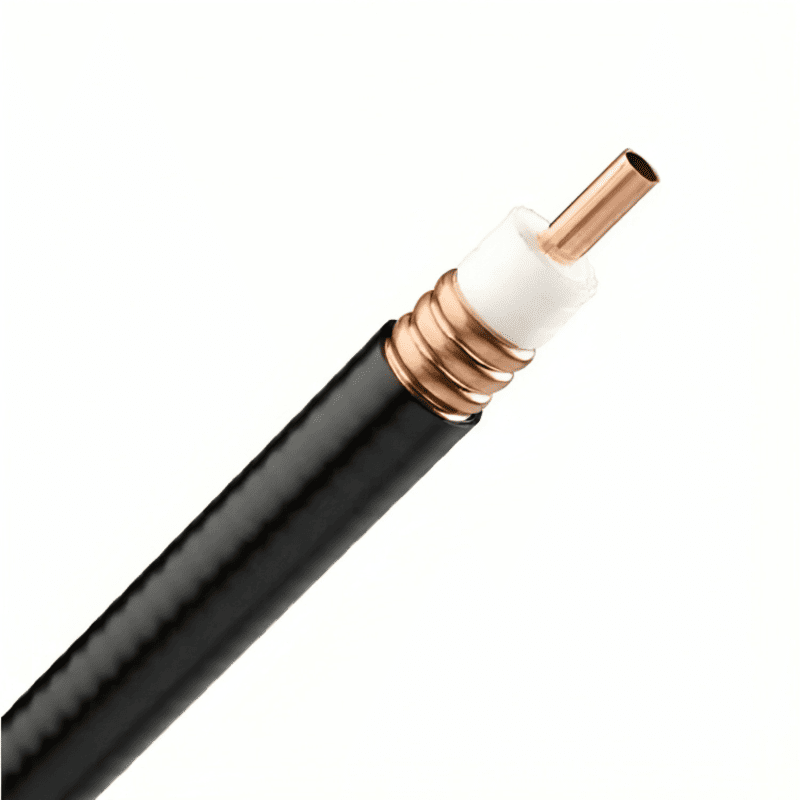

The 5/8″ feeder is designed to minimize signal degradation over long vertical or horizontal runs. It utilizes a physically foamed Polyethylene (PE) dielectric and a solid corrugated copper outer conductor, providing 100% shielding effectiveness (>120 dB). This construction prevents signal leakage and protects against external interference in dense RF environments.

While less common than 1/2″ or 7/8″ sizes, the 5/8″ cable is frequently used as a high-power jumper or a primary feeder line where space is slightly more constrained than a standard macro site allows, but power requirements exceed the limits of smaller cables. It is typically jacketed in UV-resistant Black PE for a 20+ year outdoor service life.

Key Technical Advantages

• Exceptional Low Loss: Significantly lower attenuation than 1/2″ cable, making it ideal for maintaining signal strength in high-frequency 4G and 5G deployments.

• Increased Power Handling: Capable of handling peak power ratings up to ~60-70 kW, suitable for high-output base stations and broadcast transmitters.

• Superior Shielding: The solid corrugated outer conductor ensures maximum protection against EMI and excellent Passive Intermodulation (PIM) performance.

• Rugged Mechanical Build: Designed to withstand high wind loads and extreme temperatures, maintaining electrical stability from -55°C to +85°C.

• Transition Efficiency: Often used as an efficient transition cable between main 7/8″ or 1-1/4″ trunk lines and the final antenna connection hardware.

Key Features

• Impedance: 50 Ohm (Standard).

• Outer Diameter: ~17.3mm to 17.6mm.

• Frequency Range: DC to 5.0 GHz.

• Outer Conductor: Corrugated Copper Tube.

• Bending Radius: ~80mm (Single) / ~190mm (Repeated).

• Applications: Cellular Macro Sites, Broadcast Transmission, and High-Power Microwave Links.

🔹 Applications:

• Medium power RF transmission
• Telecom base station connections
• Antenna feeder systems
• Outdoor RF installations
• Wireless network infrastructure
• DAS systems
