RG-10 Cable

Description

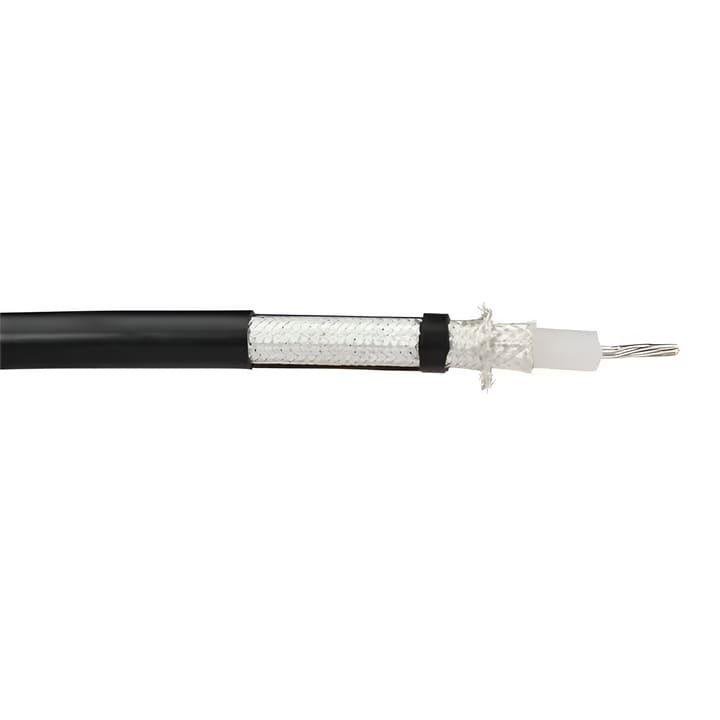

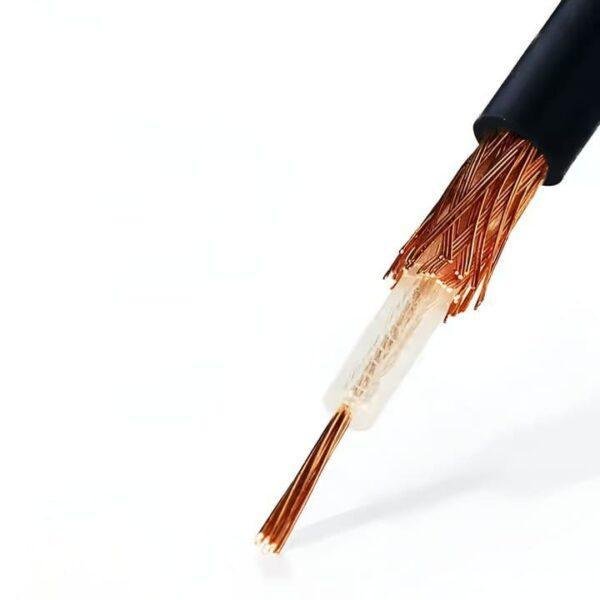

RG-10 is a heavy-duty coaxial cable designed for high-power 50 Ohm systems, often considered a more rugged, high-reliability version of the standard RG-8. It is specifically engineered to handle significant power levels while providing superior protection against mechanical damage and environmental stress. The cable typically features a large 10 AWG stranded copper center conductor, a solid polyethylene (PE) dielectric, and a multi-layered shielding system—often including a silver-plated or tinned copper braid for enhanced conductivity and interference rejection.

What sets RG-10 apart is its ability to operate reliably in harsh conditions. Many variants include a reinforced outer jacket or an additional layer of aluminum or steel braiding under the jacket to provide “armored” protection against crushing, abrasion, and rodent damage. This makes it an ideal solution for naval shipboard applications, underground burial, and industrial sites where the cable may be subjected to physical abuse. It is commonly terminated with N-Type or UHF (PL-259) connectors for high-power transceiver and antenna connections.

Key Technical Advantages

• Exceptional Power Handling: Designed to carry high-wattage RF signals safely, making it suitable for high-power radio transmitters and industrial RF heating equipment.

• Enhanced Physical Durability: The heavy-duty construction provides superior resistance to crushing, tension, and environmental degradation compared to standard RG-8.

• High-Efficiency Multi-Shielding: Features high-density braiding that ensures maximum signal protection and minimizes RF leakage, even in high-interference environments.

• Stable 50 Ohm Performance: Precision-manufactured to maintain consistent impedance, reducing VSWR and ensuring maximum power transfer between the source and the load.

• Marine and Military Ready: Often meets stringent specifications for moisture resistance and flame retardancy, essential for critical infrastructure.

Key Features

• Cable Type: RG-10 / U Coaxial.

• Impedance: 50 Ohm.

• Center Conductor: 10 AWG (Typically Stranded Copper).

• Shielding: Multi-layered Tinned or Silver-plated Copper Braid.

• Jacket Materials: Heavy-duty PVC or Non-Contaminating PE (Outdoor/UV Resistant).

• Common Applications: Military communications, Shipboard RF systems, underground RF runs, and high-power radio broadcasting.

Technical Summary
