Description

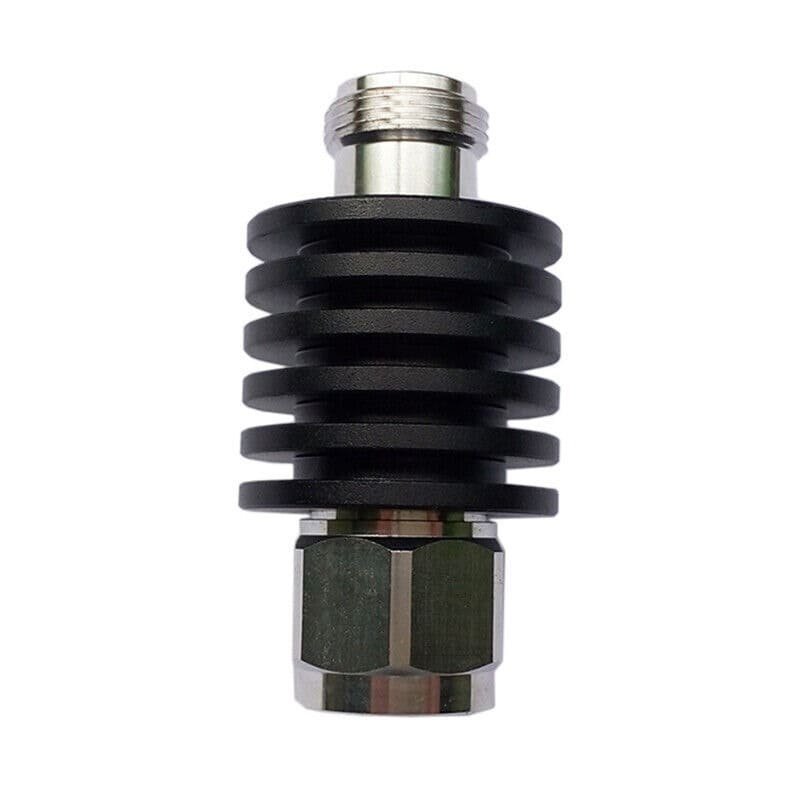

The 5dB 10W RF Fixed Attenuator is a high-performance passive component designed to reduce the power of an RF signal by exactly 5dB. With a robust 10-Watt power handling capacity, it is built to manage substantial power loads from transmitters and amplifiers, stepping them down to safe levels for sensitive receivers or measurement equipment. This model is optimized for a wide frequency spectrum from DC to 3GHz, ensuring compatibility with VHF, UHF, GPS, and standard cellular bands.

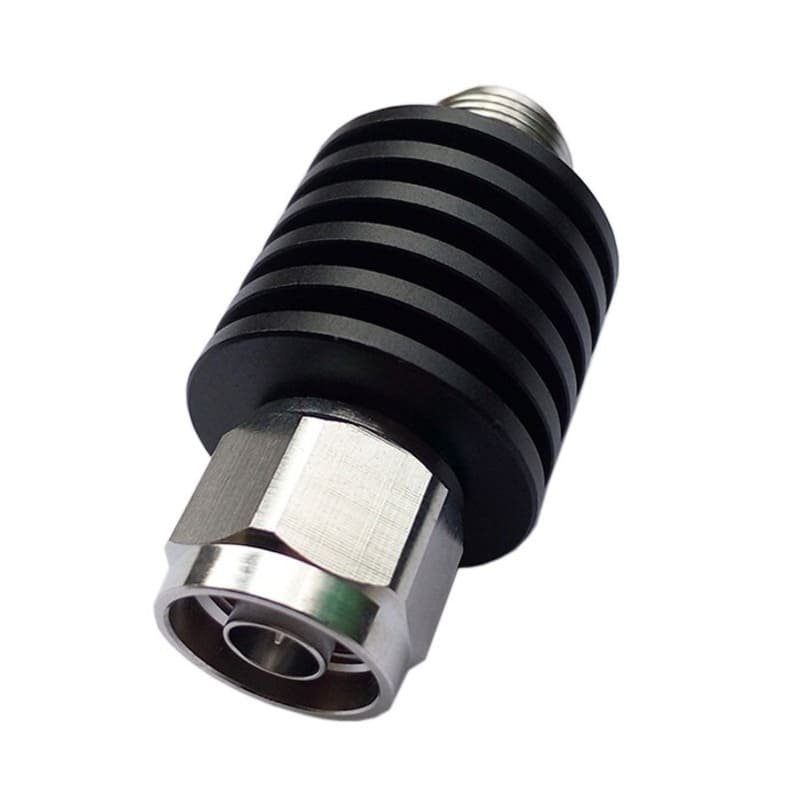

The attenuator features an N-Type Male to N-Type Female inline configuration, utilizing a threaded coupling mechanism for a secure, low-loss connection. To support its 10W rating, the device is housed in a ruggedized aluminum or brass body with integrated cooling fins, which facilitates efficient heat dissipation and prevents thermal drifting. Manufactured with high-stability resistive elements and premium PTFE insulation, it delivers a flat frequency response and consistent performance in both laboratory and industrial field environments.
Key Technical Advantages
-
Precise 5dB Attenuation: Provides a reliable power reduction, essential for protecting high-precision test equipment and balancing signal levels in RF distribution networks.
-
10W Medium-Power Rating: Engineered with a heavy-duty thermal design to handle significantly higher power than standard low-power attenuators without compromising accuracy.
-
Superior Thermal Management: The integrated heat-sink housing ensures that the internal resistive elements remain within optimal operating temperatures during continuous use.
-
Secure Threaded Interface: The N-Type interface provides a vibration-resistant, high-reliability connection that maintains excellent shielding effectiveness.
-
Low VSWR: Precision-engineered internals minimize signal reflections, protecting signal sources and ensuring maximum measurement accuracy across the DC-3GHz range.
Key Features
-
Interface Type: N-Type Male (Plug) to N-Type Female (Jack).
-
Attenuation Value: 5dB (Fixed).
-
Power Rating: 10 Watts (Continuous).
-
Frequency Range: DC – 3.0 GHz.
-
Impedance: 50 Ohm (Standard).
-
Construction: Anodized Aluminum or Nickel-Plated Brass with integrated cooling fins.
-
Common Application: Amplifier output attenuation, transmitter testing, signal leveling in DAS, and high-power RF laboratory measurements.
🔹 Applications:
- RF signal attenuation in telecom systems
- Antenna and base station setups
- RF testing and calibration
- Signal conditioning
- Wireless communication
- RF lab setups
