5dB 2W RF Fixed Attenuator SMA M/F 6GHz

Description

 The 5dB 2W RF Fixed Attenuator is a high-performance passive component designed to reduce the power of an RF signal by exactly 5dB. With a 2-Watt power handling capacity, it is ideal for low-to-medium power applications where precision and signal integrity are paramount. This model is optimized for a wide frequency spectrum from DC to 6GHz, ensuring full compatibility with sub-6GHz 5G NR, Wi-Fi 6, GPS, and standard telecommunications bands.

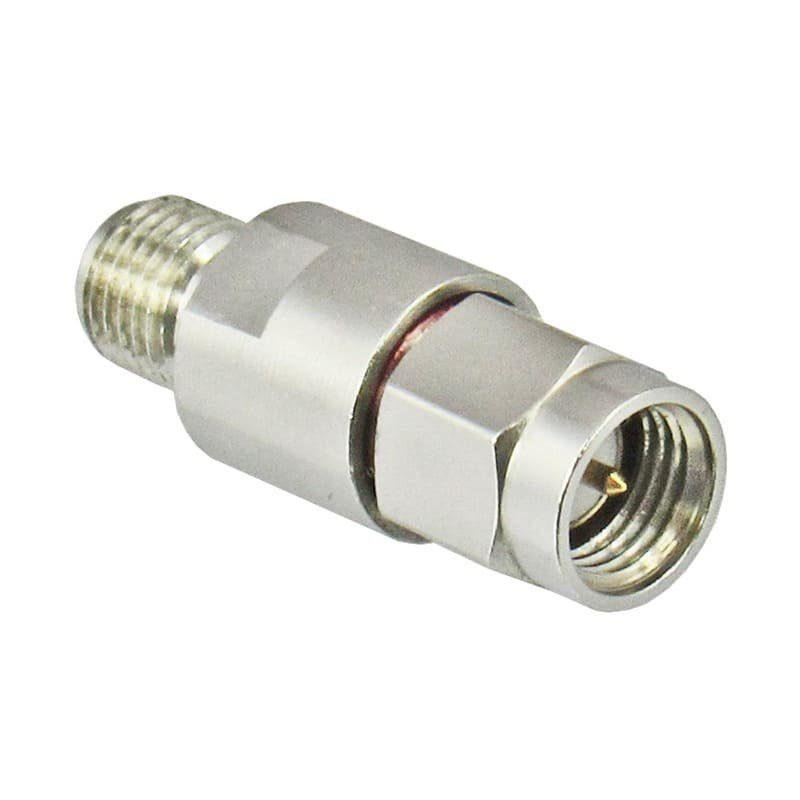

The attenuator features an SMA Male to SMA Female inline configuration, allowing for seamless integration into existing signal paths or direct connection to test equipment. It is constructed using high-reliability resistive elements that provide excellent frequency flatness and a low Voltage Standing Wave Ratio (VSWR). The housing is typically manufactured from stainless steel or passivated brass, providing a ruggedized exterior that ensures consistent electrical performance and durability over hundreds of mating cycles.

Key Technical Advantages

• Precise 5dB Attenuation: Provides a reliable signal reduction, making it an essential tool for balancing signal strength and protecting sensitive receiver front-ends from saturation.

• Broad 6GHz Bandwidth: Provides a versatile solution for a wide range of wireless technologies, maintaining high accuracy from DC through the 6GHz spectrum.

• Excellent Impedance Matching: Often used as a “pad” to improve the VSWR between two mismatched components, minimizing signal reflections and protecting upstream sources.

• Compact and Rugged Design: The 2W power rating is housed in a streamlined form factor, making it ideal for tight spaces in both laboratory and field environments.

• Durable SMA Interface: Features high-quality SMA connectors with gold-plated center contacts to ensure low contact resistance and long-term reliability.

Key Features

• Interface Type: SMA Male (Plug) to SMA Female (Jack).

• Attenuation Value: 5dB (Fixed).

• Power Rating: 2 Watts (Continuous).

• Frequency Range: DC – 6.0 GHz.

• Impedance: 50 Ohm (Standard).

• Construction: Stainless Steel or Passivated Brass with PTFE dielectric.

• Common Application: Signal leveling in wireless systems, laboratory measurements, inter-stage isolation in RF chains, and protection of sensitive test ports.

🔹 Applications:

• RF signal attenuation in communication systems
• Antenna testing setups
• Signal conditioning
• RF lab setups
• Wireless communication
• Measurement systems
