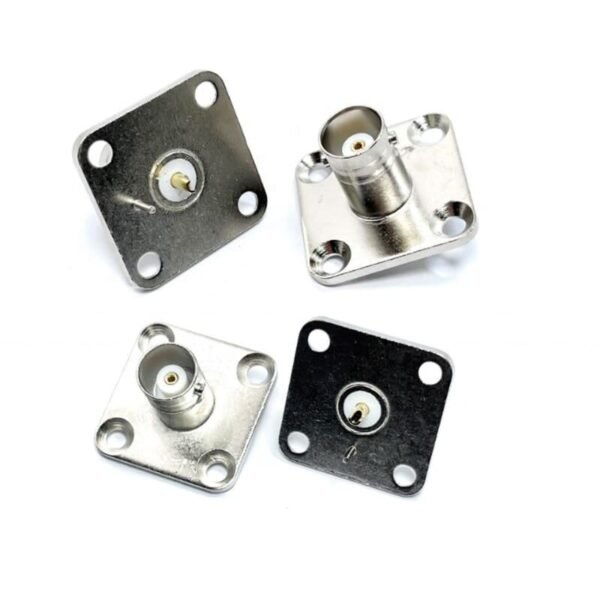

BNC F 4H Panel Mount(25mm) Solder

Description

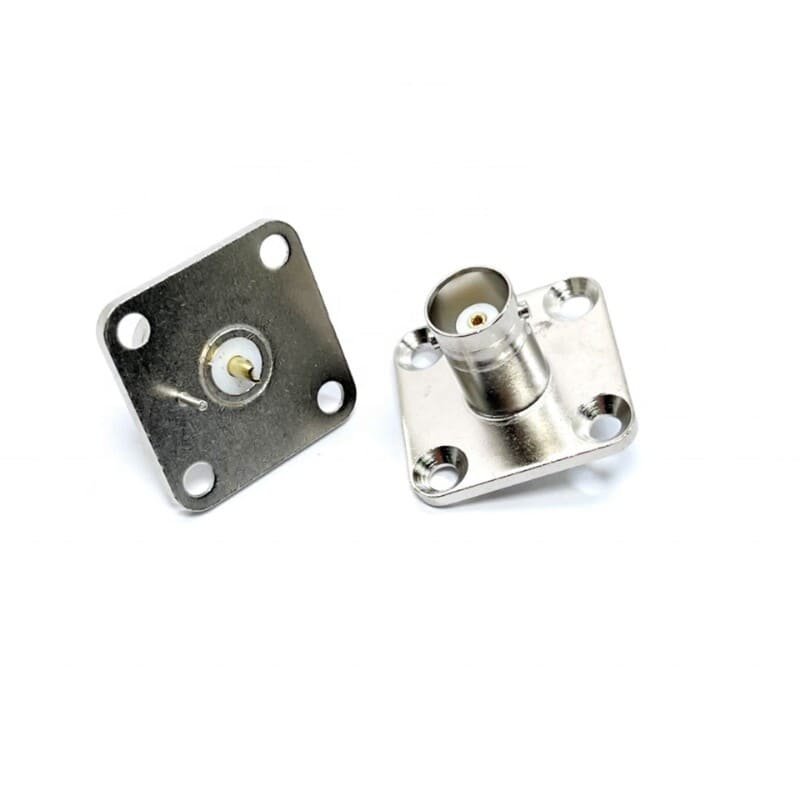

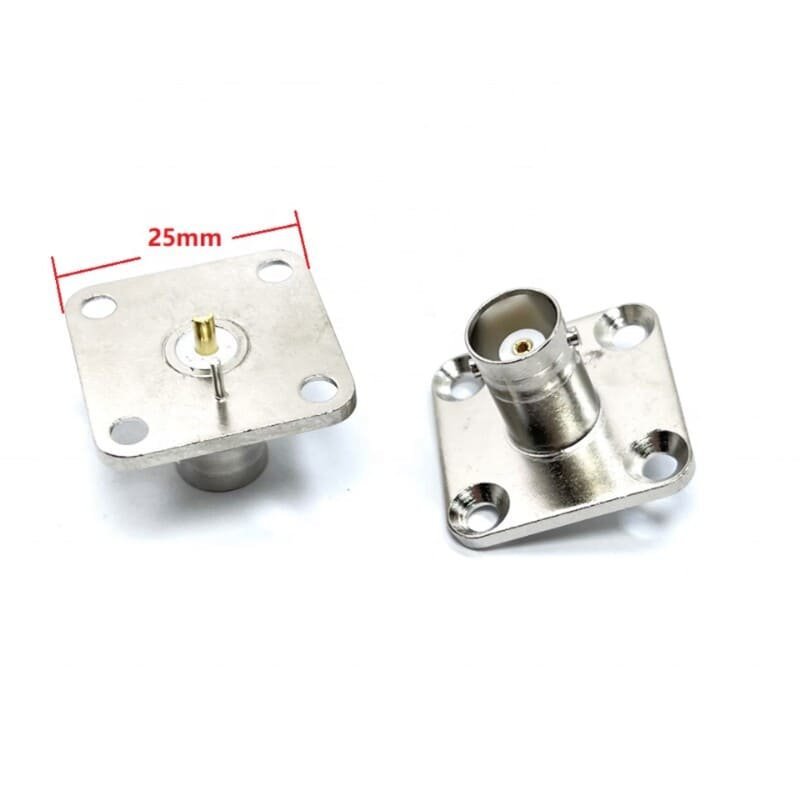

The BNC female 4-hole panel mount connector with a 25mm flange is a high-stability RF component designed for maximum mechanical security at the enclosure interface. This variant features an oversized 25.4mm (1 inch) square flange, providing a broad mounting surface that distributes mechanical stress more effectively than standard bulkhead or smaller flange mounts. The 4-hole pattern ensures the connector remains perfectly fixed and torque-resistant, even during high-frequency mating cycles or in environments subject to constant vibration.

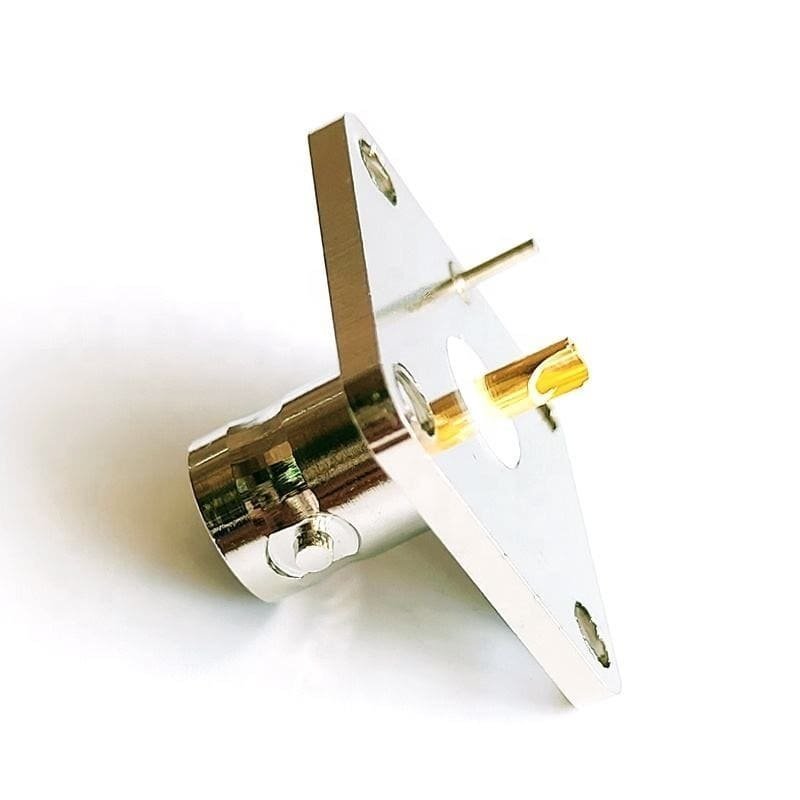

As a female interface (jack), it features the standard bayonet housing for rapid, secure mating with BNC male plugs. This specific model utilizes a solder cup termination for the center contact and a solder-on or bolt-on grounding point for the outer conductor. This design offers maximum versatility, allowing it to be used with almost any 50-Ohm coaxial cable, from thin RG174 to thicker RG58 or LMR240, provided the cable is prepared for internal chassis soldering. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent electrical performance and signal integrity up to 4 GHz.

Key Technical Advantages

• Oversized 25mm Flange Stability: The large square flange provides a robust mounting base with four anchor points, offering superior anti-rotation and high-vibration resistance for mission-critical panels.

• Universal Solder Termination: The rear solder cup allows for a direct, low-resistance electrical connection to the center conductor, making the connector independent of specific crimp tool requirements.

• Heavy-Duty Construction: Built to withstand mechanical strain, the thick-walled brass body ensures long-term durability in industrial and field-deployed environments.

• Standard Bayonet Housing: Features the industry-standard BNC female interface for rapid, tool-less mating that remains mechanically stable under physical stress.

• Superior Corrosion Resistance: Features a precision-machined nickel-plated body and gold-plated center socket to ensure low contact resistance and long-term protection against oxidation.

Key Features

• Interface Type: BNC Female (Jack) with standard bayonet coupling.

• Mounting Style: 25mm (1 inch) 4-Hole Square Flange Panel Mount.

• Termination Method: Solder Cup (Center Socket) / Solder Tab or Flange Ground (Outer).

• Cable Compatibility: Universal (Commonly used with RG174, RG316, RG58, RG142, LMR195, LMR200, and LMR240).

• Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.

• Common Application: Military communication racks, aerospace avionics, high-end test instrumentation, and industrial RF control panels.

🔹 Applications:

• RF panel mounting in enclosures
• Communication equipment
• Test and measurement devices
• RF interface ports
• Broadcast systems
• Signal routing
