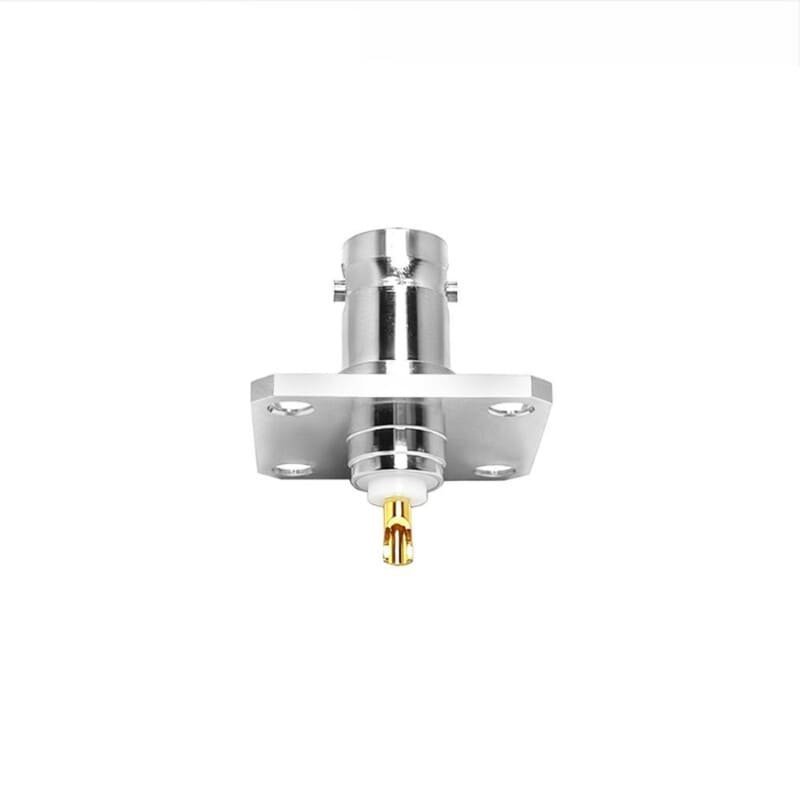

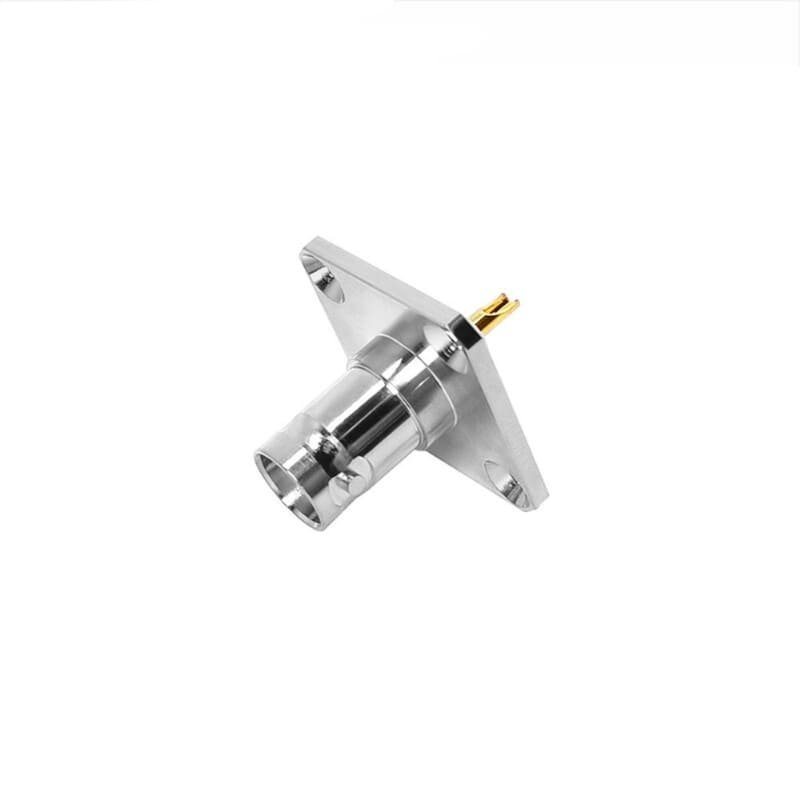

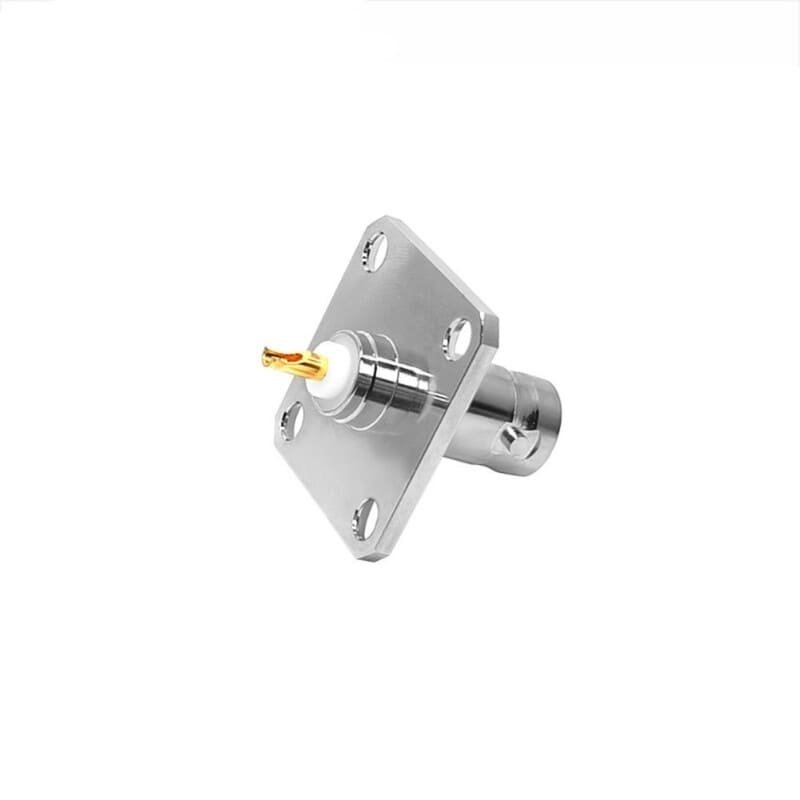

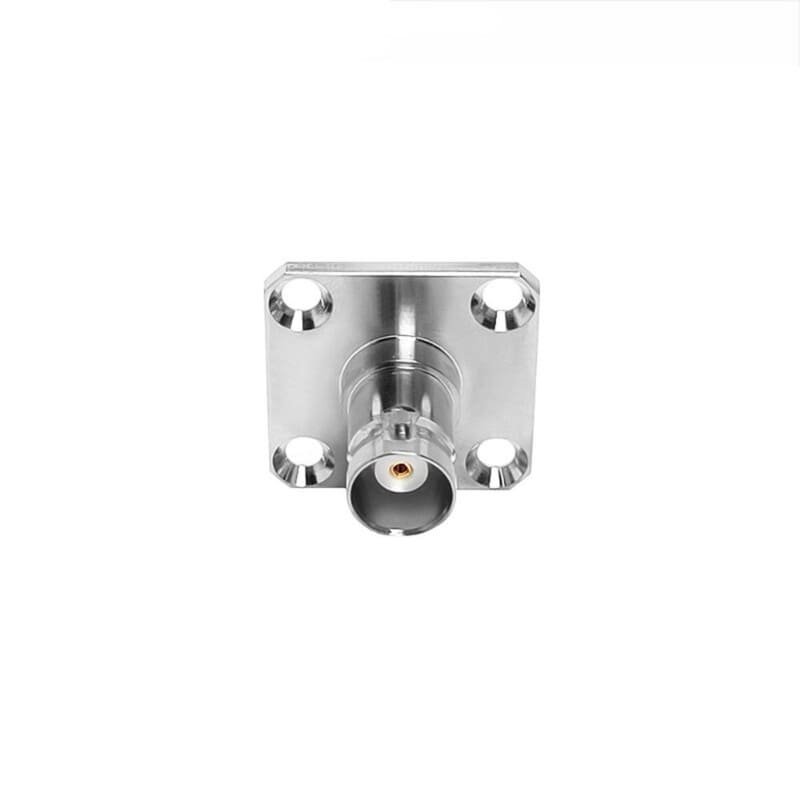

BNC F 4H Panel Mount(17.5mm) Solder

Description

The BNC female 4-hole panel mount connector with a 17.5mm flange is a precision RF component designed for mechanical stability in space-constrained environments. This variant features a 17.5mm square flange, providing a compact mounting footprint that is ideal for high-density interface panels where multiple ports must be situated in close proximity. The 4-hole mounting pattern ensures the connector remains perfectly fixed, preventing rotation and mechanical fatigue during frequent mating cycles.

As a female interface (jack), it features the standard bayonet housing for rapid, vibration-resistant mating with BNC male plugs. This model utilizes a solder cup termination for the center contact, providing a high-integrity electrical bond that is independent of specific crimping tool requirements. This design is highly versatile, compatible with a wide range of 50-Ohm coaxial cables (such as RG174, RG316, or RG58) used for internal chassis wiring. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent signal integrity and low attenuation up to 4 GHz.

Key Technical Advantages

• Compact 17.5mm Flange: The reduced flange size allows for high-density port configurations on small equipment faces without sacrificing mechanical mounting strength.

• 4-Hole Secure Mounting: The square flange with four anchor points provides superior anti-rotation properties and vibration resistance compared to standard bulkhead nuts.

• Universal Solder Termination: The rear solder cup allows for a direct, low-resistance electrical connection, making it suitable for custom laboratory setups and specialized internal wiring.

• Standard Bayonet Housing: Features the industry-standard BNC female interface for rapid, tool-less mating that remains mechanically stable under physical stress.

• Superior Corrosion Resistance: Features a precision-machined nickel-plated body and gold-plated center socket to ensure low contact resistance and long-term protection against oxidation.

Key Features

• Interface Type: BNC Female (Jack) with standard bayonet coupling.

• Mounting Style: 17.5mm 4-Hole Square Flange Panel Mount.

• Termination Method: Solder Cup (Center Socket) / Solder Tab or Flange Ground (Outer).

• Cable Compatibility: Universal (Commonly used with RG174, RG316, RG188, RG58, and LMR195).

• Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.

• Common Application: High-density patch panels, laboratory instrumentation, compact RF enclosures, and industrial signal distribution.
