BNC F 4H Panel Mount(12mm) Solder

Description

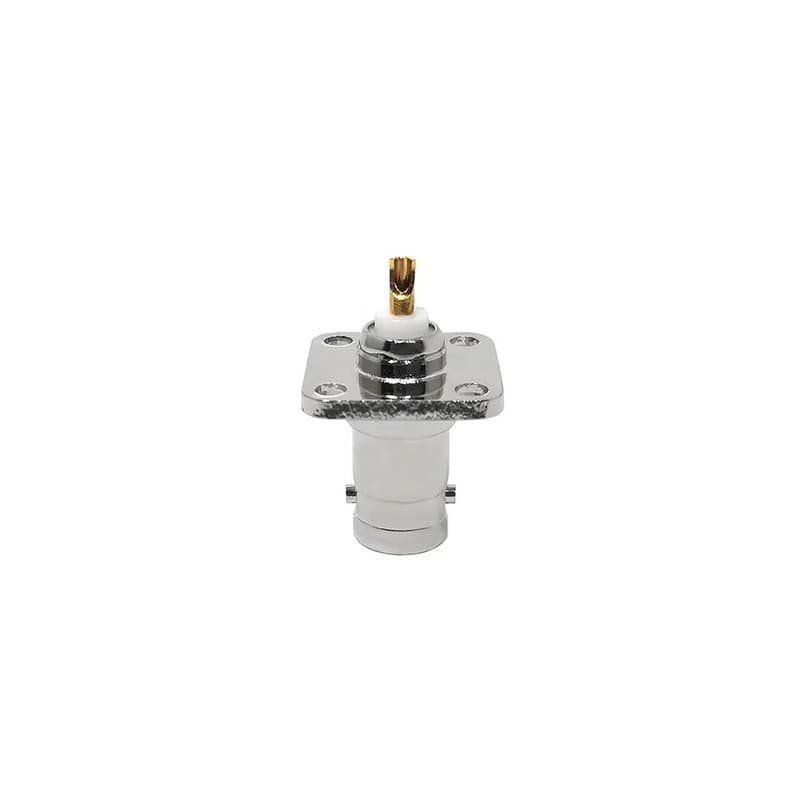

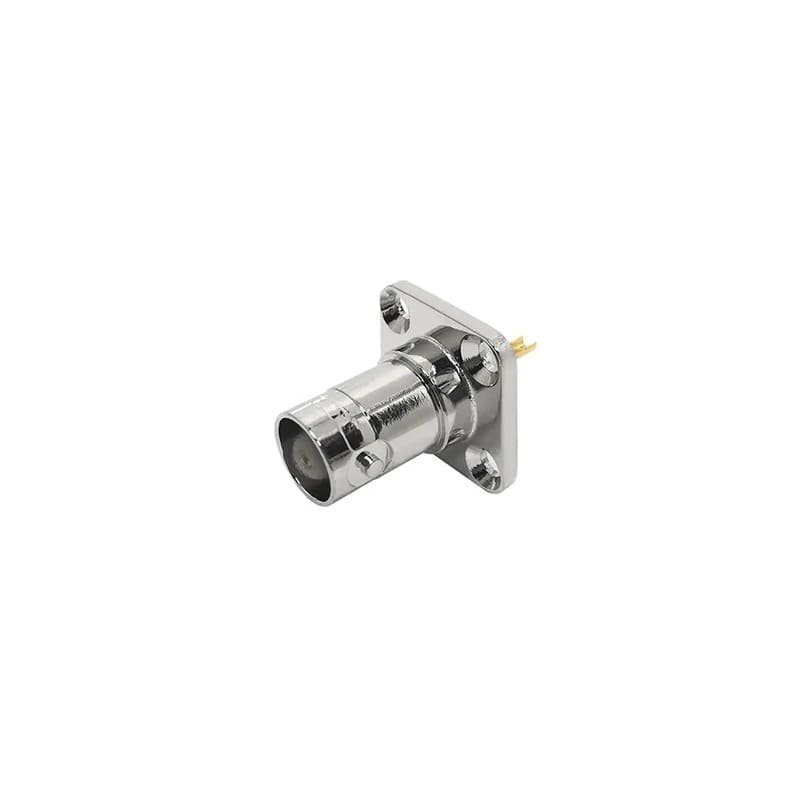

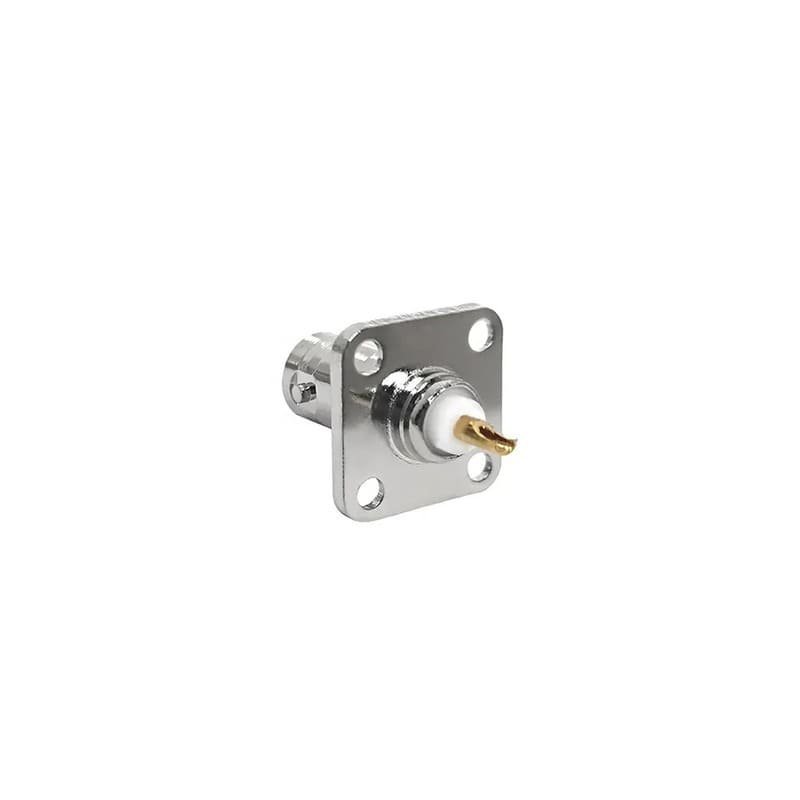

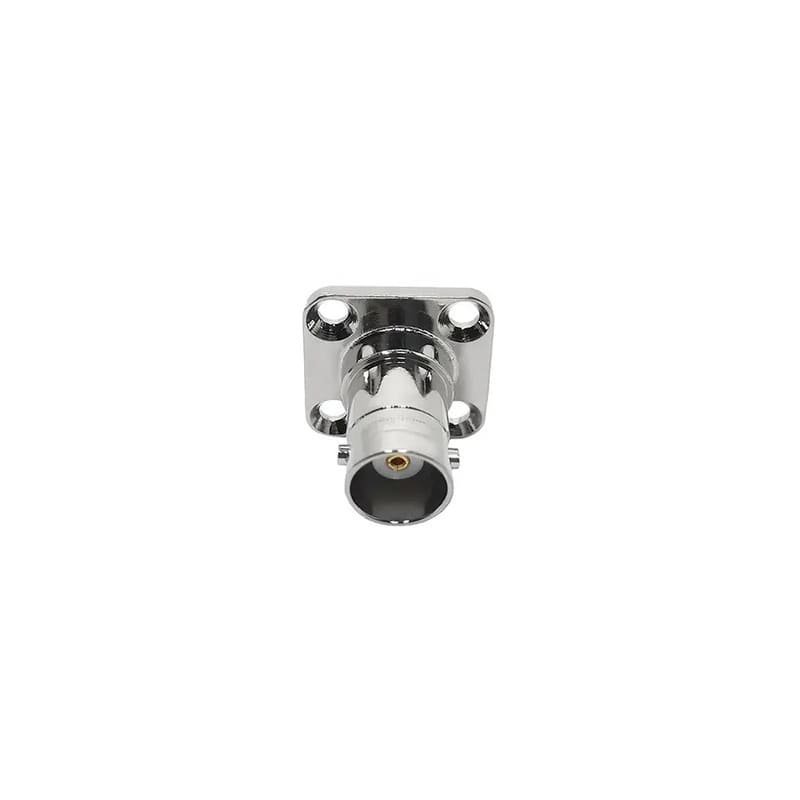

The BNC female 4-hole panel mount connector with a 12.7mm flange is a precision RF component designed for maximum space efficiency without compromising mechanical integrity. This variant features a 12.7mm square flange, providing the smallest standard footprint for a flange-mounted BNC interface. This makes it the premier choice for high-density equipment faces where space is at an absolute premium. The 4-hole mounting pattern ensures the connector remains perfectly fixed, providing far superior anti-rotation and vibration resistance compared to miniature bulkhead designs.

As a female interface (jack), it features the standard bayonet housing for rapid, secure mating with BNC male plugs. This model utilizes a solder cup termination for the center contact, ensuring a permanent, low-resistance electrical connection. This design is highly versatile and compatible with thin-diameter 50-Ohm coaxial cables typically used for internal chassis routing, such as RG178, RG174, or RG316. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent signal integrity and reliable performance up to 4 GHz.

Key Technical Advantages

• Ultra-Compact 12.7mm Flange: The miniature flange size allows for the highest possible port density on small equipment faces and modular sub-assemblies.

• 4-Hole Secure Mounting: Despite its small size, the four anchor points provide exceptional mechanical stability and resistance to torque during frequent mating cycles.

• Universal Solder Termination: The rear solder cup allows for a direct electrical connection, making it ideal for custom micro-electronics and specialized internal wiring.

• Standard Bayonet Housing: Features the industry-standard BNC female interface for rapid, tool-less mating that remains mechanically stable under physical stress.

• Superior Corrosion Resistance: Features a precision-machined nickel-plated body and gold-plated center socket to ensure low contact resistance and long-term protection against oxidation.

Key Features

• Interface Type: BNC Female (Jack) with standard bayonet coupling.

• Mounting Style: 12.7mm (0.5″) 4-Hole Square Flange Panel Mount.

• Termination Method: Solder Cup (Center Socket) / Solder Tab or Flange Ground (Outer).

• Cable Compatibility: Universal (Commonly used with RG178, RG174, RG188, and RG316).

• Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.

• Common Application: Modular RF sub-systems, handheld testing devices, high-density patch panels, and compact medical electronics.

🔹 Applications:

• Compact panel-mounted RF connections
• Embedded RF systems
• Communication modules
• Test equipment
• Signal routing
• RF enclosures
