Description

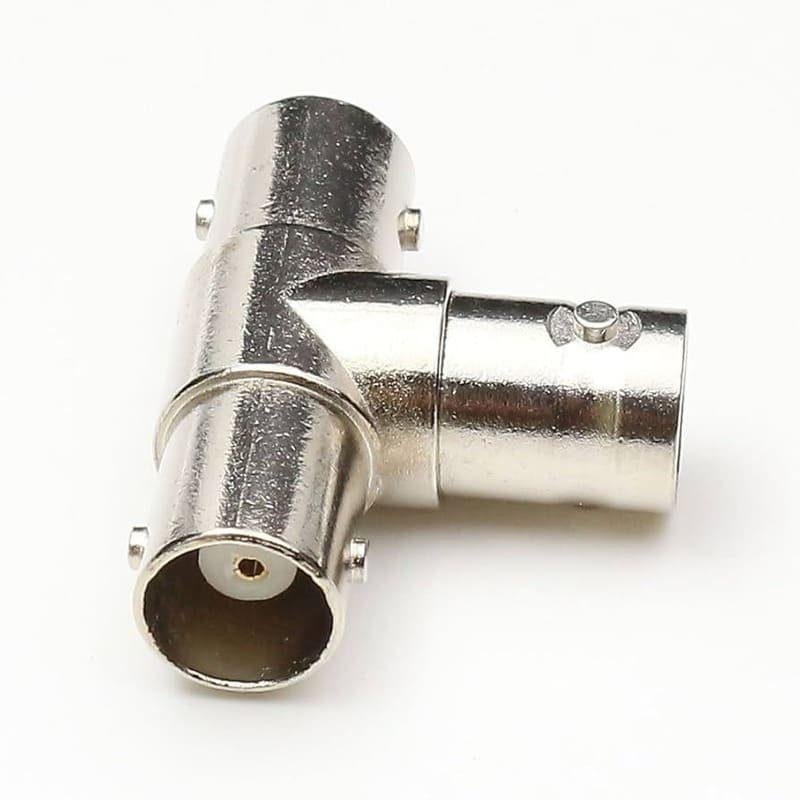

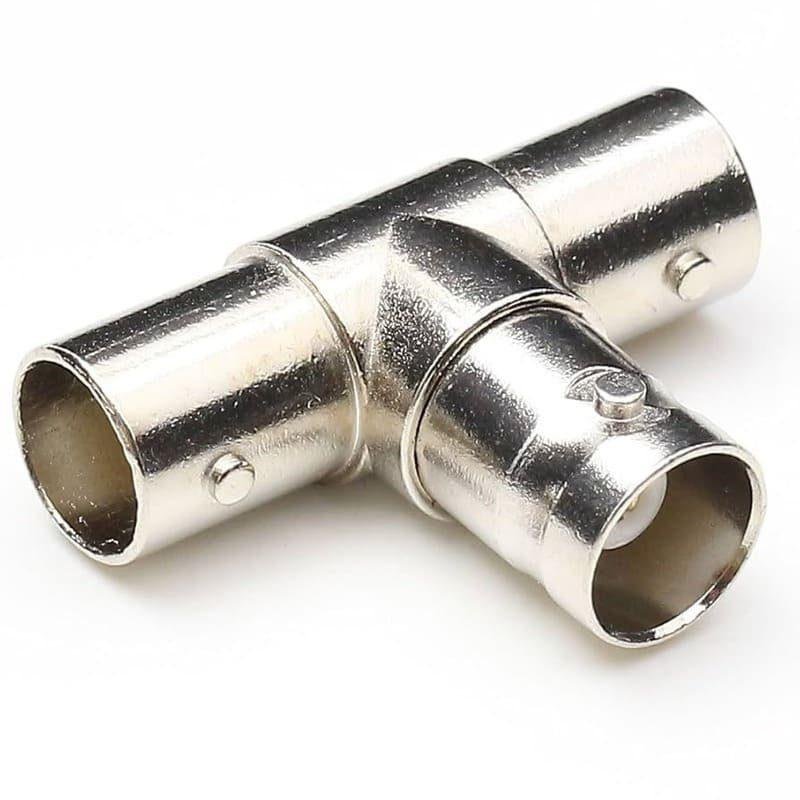

The BNC Tee-Type Adapter (Female-Female-Female) is a precision RF component designed to branch a single signal path into two, or to combine two signals into one, using three standard BNC Female interfaces. Unlike common consumer-grade adapters, this unit is precision-machined to maintain signal integrity up to 4 GHz, making it suitable for high-speed digital clocks, high-definition video distribution, and advanced RF laboratory environments.
The adapter features a Nickel-Plated Brass body for superior durability and shielding, with Gold-Plated center contacts to ensure low contact resistance and maximum signal conductivity. The classic bayonet-style coupling interfaces on all three ports ensure secure, “quick-lock” connections with BNC male plugs. This specific F-F-F configuration is most commonly used to join three BNC male-terminated cables together, acting as a high-frequency hub for splitting a signal from a source to two separate measurement instruments or displays.
Key Technical Advantages
-
Extended Frequency Range: Precision-tuned to operate from DC up to 4 GHz, offering significantly lower VSWR and better return loss than standard BNC adapters rated for lower frequencies.
-
Triple-Female Configuration: A versatile layout that facilitates the interconnection of multiple BNC male-terminated cables without the need for additional adapters.
-
Superior Signal Integrity: High-quality PTFE (Teflon) insulation and precision internal geometry minimize signal attenuation and phase distortion.
-
Robust Mechanical Design: The nickel-plated brass construction provides excellent corrosion resistance and mechanical strength for frequent mating cycles.
-
Gold-Plated Signal Path: Gold-plated female sockets provide reliable electrical contact and prevent oxidation over the life of the component.
Key Features
-
Adapter Type: Tee-Type (T-Shape).
-
Interface: 3x BNC Female (Jack).
-
Impedance: 50 Ohm.
-
Body Material: Brass (Nickel Plated).
-
Contact Material: Phosphor Bronze or Beryllium Copper (Gold Plated).
-
Insulator: PTFE (Teflon).
-
Common Applications: Oscilloscope signal branching, synchronized clock distribution, RF test benches, and digital video signal splitting.
🔹 Applications:
- RF signal distribution in BNC cable networks
- CCTV surveillance system connectivity
- Broadcast and video signal routing
- RF lab and instrumentation setups
- Antenna and RF cable branching
- Communication and testing systems
