BNC Tee-Type Adaptor (M-M-M), DC to 4 GHz

Description

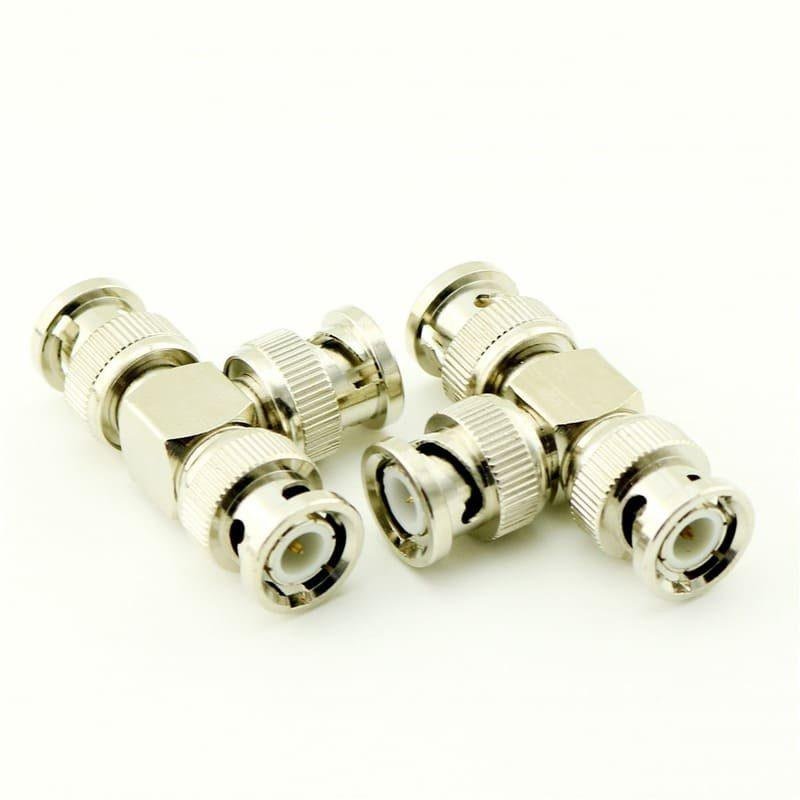

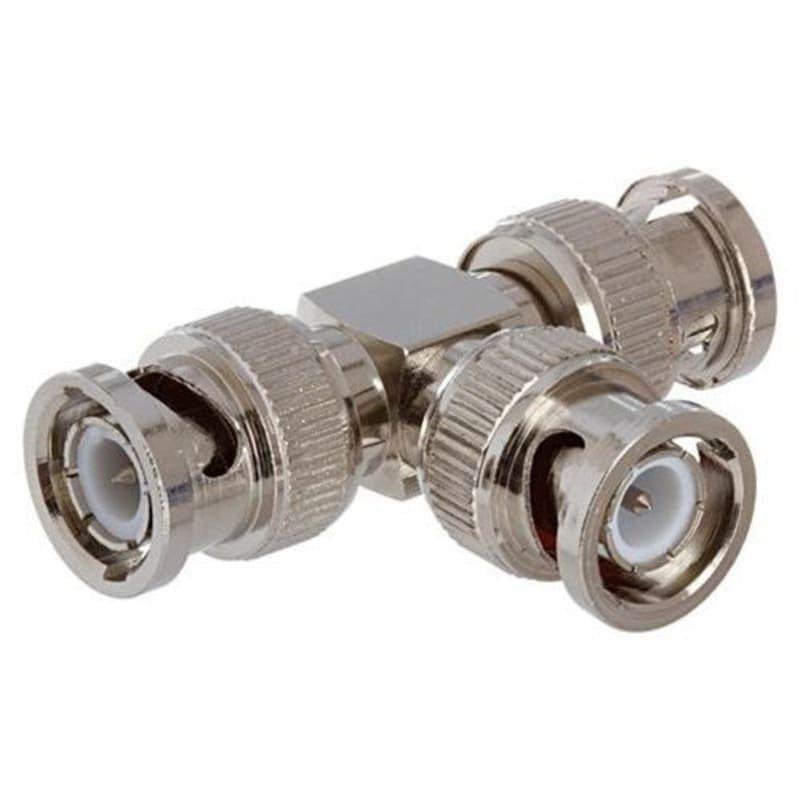

The BNC Tee-Type Adapter (Male-Male-Male) is a precision RF component designed to branch a single signal path into two, or to combine two signals into one, using three standard BNC Male interfaces. Unlike common consumer-grade adapters, this unit is precision-machined to maintain signal integrity up to 4 GHz, making it suitable for high-speed digital clocks, video distribution, and RF laboratory environments.

The adapter features a Nickel-Plated or Silver-Plated Brass body for superior durability and shielding, with Gold-Plated center contacts to ensure low contact resistance and maximum signal conductivity. The classic bayonet-style coupling on all three ports ensures a secure, “quick-lock” connection that is vibration-resistant. This specific M-M-M configuration is often used to interconnect two female-terminated cables with a female chassis-mounted instrument port, or in complex daisy-chaining scenarios where female-to-female cables are already in place.

Key Technical Advantages

• Extended Frequency Range: Precision-tuned to operate from DC up to 4 GHz, offering significantly better performance and lower VSWR than standard BNC adapters rated only for 1 GHz.

• Triple-Male Configuration: A specialized layout that facilitates unique interconnection needs, reducing the need for additional gender changers or patch cables.

• Low Insertion Loss: High-quality internal dielectric and precision machining minimize signal attenuation, ensuring that split signals remain within tight tolerances.

• Durable Bayonet Coupling: Provides the classic BNC “quick-connect” functionality on all ports, ensuring reliable electrical contact and mechanical stability through hundreds of mating cycles.

• Gold-Plated Signal Path: Features gold-plated pins to prevent oxidation and maintain high-fidelity transmission in critical test and measurement applications.

Key Features

• Adapter Type: Tee-Type (T-Shape).

• Interface: 3x BNC Male (Plug).

• Impedance: 50 Ohm.

• Body Material: Brass (Nickel or Silver Plated).

• Contact Material: Brass or Phosphor Bronze (Gold Plated).

• Insulator: PTFE (Teflon) for high-frequency stability.

• Common Applications: RF test laboratories, oscilloscope signal splitting, synchronized clock distribution, and high-frequency video monitoring.

🔹 Applications:

• RF signal splitting and distribution in BNC systems
• CCTV and video signal branching
• Broadcast and AV signal routing
• RF test and measurement setups
• Lab instrumentation and calibration
• Communication system signal distribution
